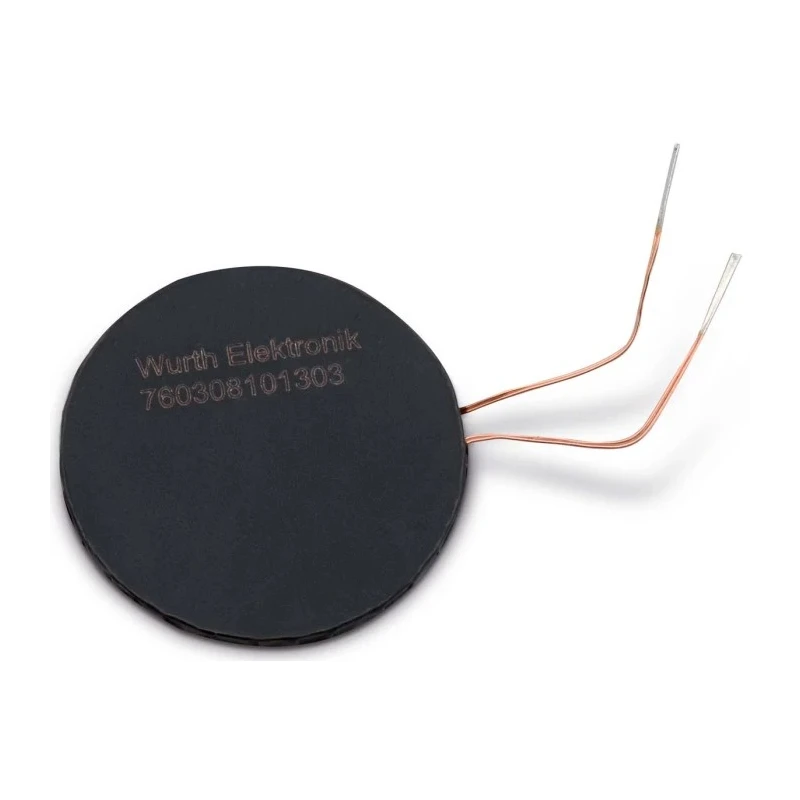

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 1.5 A, 47 μH, 26.3 mm dia. 760308101303

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 1.5 A, 47 μH, 26.3 mm dia. 760308101303

Name: Wurth Elektronik WE-WPCC Wireless Charging Coil Receiver 1.5 A, 47 μH, 26.3 mm dia. 760308101303
Brand: Wurth Elektronik
SKU: 382578
Price: 11.63 USD
Availability: InStock



Category Wireless Charging Coil Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Diameter	26.3mm
Brand	Wurth Elektronik
Function	Receiver
Length	51.3mm
Mount Type	Axial
Series	WE-WPCC
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-20°C
Core Material	Ferrite
Inductance	47μH
Standards/Approvals	EN 61760-1:2006
Maximum DC Current	1.5A
Maximum DC Resistance	500mΩ
Inductance Tolerance	±10 %
Termination Style	Radial
Maximum Self Resonant Frequency	8MHz
Minimum Quality Factor	25
Standards/ApprovalsEN 61760-1	2006
EN 61760-1	2006

Key Features

This wireless coil operates at a diameter of 26.3 mm for compact design.
It features a ferrite core and axial mount type suitable for diverse electronic applications.
The coil offers a maximum DC resistance of 500 mΩ and a quality factor of at least 25.
Designed for operating temperatures from -20°C to 105°C ensuring stability in various environments.
The WE-WPCC series supports high efficiency wireless charging up to 75% when paired with compatible coils.
Ideal for portable electronic devices including smart watches, fitness trackers, and medical equipment.
The coil assembly minimizes EMI leakage with integrated shielding ensuring safe operation.

Product Description

Wurth Elektronik 760308101303 WE-WPCC Wireless Charging Coil Receiver is engineered for effective Qi wireless power applications, supporting 1.5 A current and an inductance of 47 μH within a compact 26.3 mm diameter form factor. Its ferrite core combined with axial mounting ensures robust performance and durability.

This coil offers a maximum DC resistance of 500 mΩ and a minimum quality factor of 25, performing reliably between -20°C and 105°C ambient temperatures. Radial termination facilitates integration into diverse electronic systems.

The product complies with EN 61760-1:2006 standards, ensuring industrial-grade reliability and safety.

Wireless charging technology enables device charging without physical connectors, ideal for devices prone to connector wear or contamination, such as wearable devices, portable media players, and sensors in clean or sensitive environments.

The WE-WPCC series uses litz wire winding and EMI shielding to maximize energy transfer efficiency, reaching up to 75% when combined with transmitter coils.

Applications extend across consumer electronics, medical instrumentation, industrial clean rooms, and explosion-sensitive equipment environments where wired connections pose risks.

This coil features a ferrite core for efficient magnetic field coupling. Diameter and length measurements (26.3 mm diameter, 51.3 mm length) enable precise PCB footprint design. The coil supports a self-resonant frequency of up to 8 MHz, suitable for Qi wireless power standards.

Its axial mount and radial terminations simplify assembly in compact electronic devices. High endurance against temperature and environmental variations ensures broad industrial applicability. Explore more products in Wireless Charging Coils and electronic components category at EnvMart.
