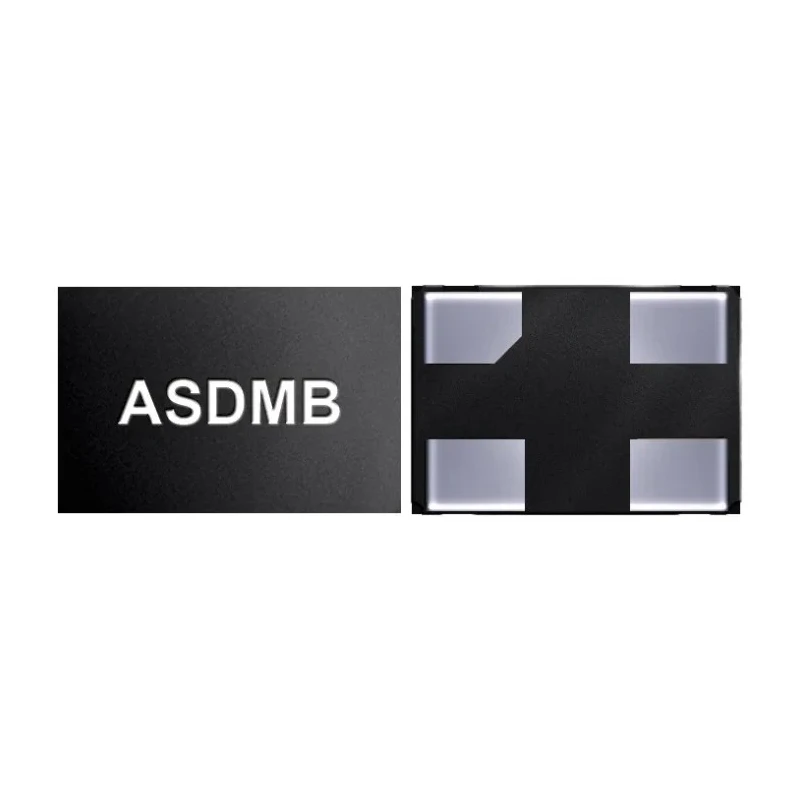

Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T

Name: Abracon 100 MHz MEMS Oscillator, 4-Pin Surface Mount ±10 ppm Frequency Stability ASDMB-100.000MHZ-LY-T
Brand: Abracon
SKU: 115058
Price: 5.27 USD
Availability: InStock



Category MEMS Oscillators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	2.5mm
Model	ASDMB-100.000MHZ-LY-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDMB
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Maximum Output Frequency	100MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	4
Output Level	LVCMOS
Maximum Operating Supply Voltage	3.3V
Minimum Operating Supply Voltage	1.8V

Key Features

Operates at supply voltage range from 1.8 V to 3.3 V.
Compact 4-pin surface mount package measuring 2.5 mm x 2 mm x 0.85 mm.
Suitable for use in consumer electronics, industrial, and automotive environments.
Supports low power consumption for portable and battery-powered devices.
Qualified to RoHS and RoHS II standards for environmental compliance.
Operational temperature range from -40°C to 85°C for reliability in harsh conditions.
Output level type is LVCMOS compatible with modern digital circuits.
Packaged in tape and reel format for automated assembly processes.

Product Description

The Abracon ASDMB-100.000MHZ-LY-T MEMS Oscillator is a highly reliable timing device designed for applications requiring a stable 100 MHz frequency output. It features a compact 4-pin surface mount package sized at 2.5 mm length, 2 mm width, and 0.85 mm height, making it ideal for space-constrained electronic assemblies. Operating over a wide supply voltage range from 1.8 V to 3.3 V, this oscillator provides efficient power usage suitable for portable and low power applications.

With a frequency stability rating of ±10 ppm and an operating temperature range from -40°C to 85°C, it meets the demands of industrial and automotive use cases, including CCD clocks for VTR cameras, consumer electronics such as TVs and DVRs, and equipment exposed to vibration, shock, and humid environments. The LVCMOS output ensures compatibility with a wide range of digital logic families.

This device is RoHS and RoHS II compliant, confirming adherence to environmental regulations. The tape and reel packaging supports automated SMT production lines, enhancing manufacturing efficiency. Its robust performance and compact form factor make it an excellent replacement for traditional crystal oscillators in demanding applications.

Operates at supply voltage range from 1.8 V to 3.3 V. Compact 4-pin surface mount package with dimensions 2.5 mm x 2 mm x 0.85 mm. Frequency stability of ±10 ppm for precise timing. Suitable for diverse electronics including consumer, industrial, and automotive devices.

Low power consumption ideal for portable electronics. RoHS and RoHS II compliant for environmental safety. Operational temperature range from -40°C to 85°C for durability. LVCMOS output level compatible with modern digital circuits.

Packaged in tape and reel for automated assembly.

Ideal for use in industrial, laboratory, manufacturing, and commercial electronics applications requiring reliable frequency control. Explore more MEMS Oscillators and related components on EnvMart.
