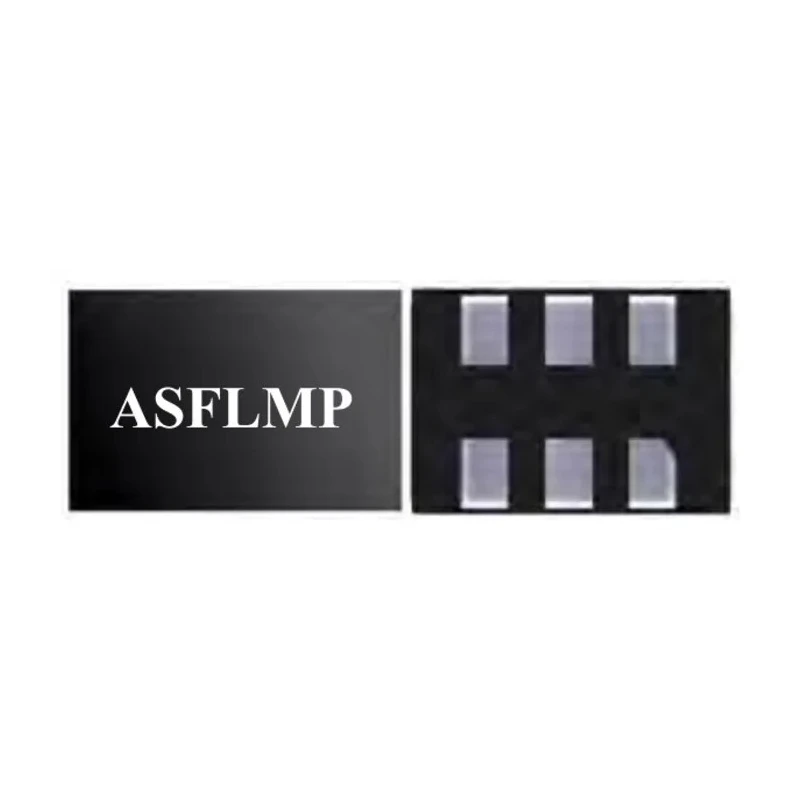

Abracon 100 MHz MEMS Oscillator, 6-Pin QFN Surface Mount LVDS Output ASFLMPLV-100.000MHZ-LR-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 100 MHz MEMS Oscillator, 6-Pin QFN Surface Mount LVDS Output ASFLMPLV-100.000MHZ-LR-T

Name: Abracon 100 MHz MEMS Oscillator, 6-Pin QFN Surface Mount LVDS Output ASFLMPLV-100.000MHZ-LR-T
Brand: Abracon
SKU: 177946
Price: 6.14 USD
Availability: InStock



Category MEMS Oscillators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	5mm
Model	ASFLMPLV-100.000MHZ-LR-T
Width	3.2mm
Mount Type	Surface
Series	ASFLMP
Package Type	QFN
Maximum Output Frequency	100MHz
Standards/Approvals	RoHS, RoHS II, MIL-STD-883 shock and vibration
Pin Count	6
Output Level	LVDS
Maximum Operating Supply Voltage	3.6V
Minimum Operating Supply Voltage	2.25V

Key Features

Operates at a maximum output frequency of 100 MHz with LVDS output level.
Compact 6-pin QFN package measuring 5 mm x 3.2 mm x 0.85 mm.
Supply voltage range from 2.25 V minimum to 3.6 V maximum.
Compliant with RoHS, RoHS II and MIL-STD-883 shock and vibration standards.
Designed for extended temperature range of -40°C to 85°C for industrial grade applications.
Low jitter ensures high signal integrity for communication and networking systems.
Suitable for SATA, SAS, Fiber Channel, Ethernet, Passive Optical Networks, PCI Express, and DisplayPort.
Surface mount package allows for space-efficient PCB mounting.

Product Description

Abracon ASFLMPLV-100.000MHZ-LR-T MEMS Oscillator is a high-performance 100 MHz clock source in a compact 6-pin QFN surface mount package. It is engineered to deliver exceptional stability across industrial temperature ranges from -40°C to 85°C, making it suitable for demanding environments. Featuring a low-voltage differential signaling (LVDS) output, this oscillator maintains signal integrity with low phase and period jitter.

The device operates with a supply voltage range of 2.25 V to 3.6 V, supporting low power consumption necessary for modern telecommunication and data communication applications. Compliance with industry standards such as RoHS, RoHS II, and MIL-STD-883 ensures reliability under shock and vibration conditions.

This oscillator is ideal for use in Storage Area Networks (SATA, SAS, Fiber Channel), Ethernet standards (1G, 10GBASE-T/KR/LR/SR), Passive Optical Networks (EPON, GPON, 10G-PON), PCI Express interfaces, and DisplayPort systems. Its durable QFN plastic packaging offers compact dimensions (5 mm length, 3.2 mm width, 0.85 mm height) facilitating high-density PCB layouts.

High stability over extended temperature range with ±15 ppm tolerance. Low jitter outputs for precision timing in communication systems. Shock and vibration resistant according to MIL-STD-883. Compact design for modern surface mount technology applications.

Wide operating voltage range for flexible integration. Environmentally compliant with RoHS directives.

This MEMS oscillator is widely used in industrial, laboratory, communication, and commercial electronics, providing reliable clock signals essential for high-speed data transfer and system synchronization. Packaging on reels allows for efficient automated assembly in manufacturing processes.
