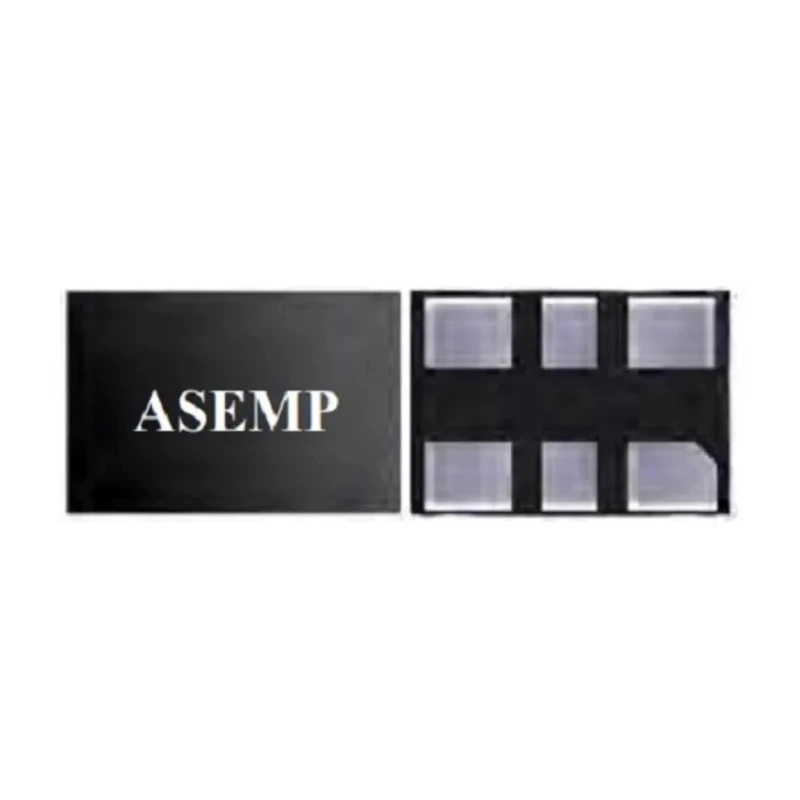

Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN, Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN, Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T

Name: Abracon 156.25 MHz MEMS Oscillator, 6-Pin QFN, Surface Mount, LVDS Output, ±25 ppm Stability ASEMPLV-156.250MHZ-LR-T
Brand: Abracon
SKU: 177943
Price: 6.62 USD
Availability: InStock



Category MEMS Oscillators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	3.2mm
Model	ASEMPLV-156.250MHZ-LR-T
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ASEMP
Maximum Operating Temperature	85°C
Package Type	QFN
Minimum Operating Temperature	-40°C
Maximum Output Frequency	156.25MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	6
Output Level	LVDS
Maximum Operating Supply Voltage	3.6V
Minimum Operating Supply Voltage	2.25V

Key Features

Operates with a voltage supply range of 2.25 V to 3.6 V for flexible system integration.
Provides a low-voltage differential signaling (LVDS) output for high-speed communication.
Designed for surface mounting with tape and reel packaging for automated assembly.
Compact dimensions of 3.2 mm length, 2.5 mm width, and 0.85 mm height reduce PCB space.
Ensures reliable performance across a temperature range from -40°C to 85°C.
Complies with RoHS/RoHS II environmental standards for safe electronic applications.
Suitable for storage area networks, passive optical networks, Ethernet, PCI Express, and display port use cases.
Offers low power consumption and low jitter characteristics for precise timing applications.

Product Description

Abracon ASEMPLV-156.250MHZ-LR-T MEMS Oscillator is a high-performance electronic component designed for accurate clock generation at 156.25 MHz frequency. It combines compact size and advanced MEMS technology to deliver exceptional stability and low power consumption.

This oscillator features a 6-pin QFN surface-mount package, measuring 3.2 mm in length, 2.5 mm in width, and 0.85 mm in height, making it ideal for densely populated printed circuit boards. It operates reliably within a temperature range of -40°C to 85°C, ensuring performance across industrial and commercial environments.

Supplying voltages from 2.25 V up to 3.6 V, the device outputs a low-voltage differential signaling (LVDS) waveform that supports high-speed data transmission with minimal noise. The unit is packaged in tape and reel format, facilitating automated placement during manufacturing.

This MEMS oscillator meets RoHS and RoHS II compliance, offering an environmentally safe choice for electronic designs. Its low jitter performance and ±25 ppm frequency stability guarantee precision for demanding applications such as storage area networks (SATA, SAS, Fiber Channel), passive optical networks (EPON, 10G-EPON, GPON, 10G-PON), Ethernet standards (1G, 10GBASE-T and variants), Fibre Channel over Ethernet (FCoE), PCI Express, and display port interfaces.

The product is engineered to withstand shock and vibration per MIL-STD-883 specifications, ensuring durability in harsh conditions.

Its combination of a small footprint, reliable voltage range, and robust environmental tolerance makes it suitable for industrial, telecommunications, networking, and high-speed digital communication systems.

Operates at 156.25 MHz frequency with ±25 ppm stability. 6-pin QFN surface mount package with compact dimensions. Low-voltage differential signaling (LVDS) output provides noise immunity. Wide supply voltage range of 2.25 V to 3.6 V.

Temperature range from -40°C to 85°C for industrial use. RoHS/RoHS II compliance for environmental safety. Enhanced shock and vibration resistance adhering to MIL-STD-883. Ideal for storage area networks, optical networks, Ethernet, PCI Express, and display technologies.
