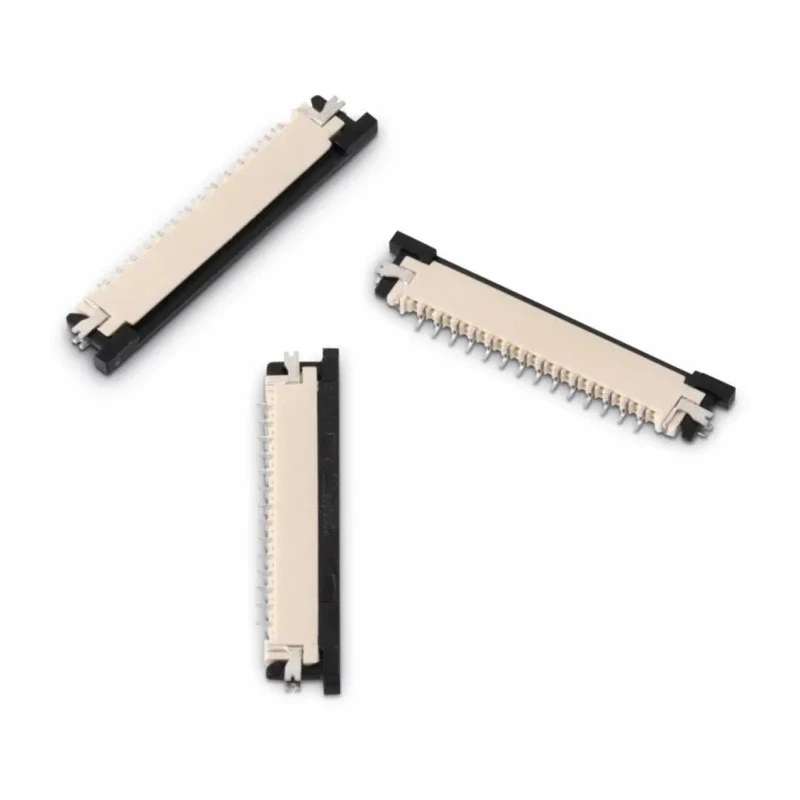

Wurth Elektronik WR-FPC 1 mm Pitch 14 Way Horizontal Female FPC Connector Surface Mount 686114183422

Wurth Elektronik 686114183422 14 Way Horizontal Female FPC Connector is a high-quality surface mount connector designed with a 1 mm pitch and low profile height of 1.2 mm. It incorporates a Zero Insertion Force (ZIF) flip lock actuator that enables simple and reliable insertion of flat flexible cables and ensures high retention force.

The connector contacts are made from phosphor bronze and plated with tin over nickel to guarantee excellent electrical conductivity and corrosion resistance. The housing material is liquid crystal polymer, ensuring durability and stable mechanical performance across a wide temperature range from -25°C to 85°C.

This 14-contact connector is arranged in a single row with female contact gender, ideal for FPC applications in compact, high density electronic devices. Brass solder tabs on either side enhance the mechanical attachment to the PCB, preventing connector displacement during assembly or operation.

Common industrial applications include use in consumer electronics such as personal computers, tablets, and mobile phones, as well as industrial machinery, medical devices, displays, and touch panel assemblies. The 50V AC voltage rating and 800mA current capacity make it suitable for moderate power signal connections requiring a high degree of reliability.

Wurth Elektronik's WR-FPC series connectors offer design flexibility with availability in both top and bottom contact styles and horizontal orientation, facilitating diverse PCB layouts and assembly processes.

This connector features a low profile design with a height of just 1.2 mm suitable for space-saving assemblies. Zero Insertion Force flip lock actuator ensures easy cable insertion and secure locking. High-quality phosphor bronze contacts with tin over nickel plating.

Durable liquid crystal polymer housing for enhanced mechanical and thermal stability. Rated for 800mA current and 50V AC voltage operation. Single row of 14 female contacts designed for surface mount technology. Brass solder tabs provide secure PCB attachment.

Operates reliably within a temperature range of -25°C to 85°C. Suitable for consumer electronics, industrial, and medical applications.
