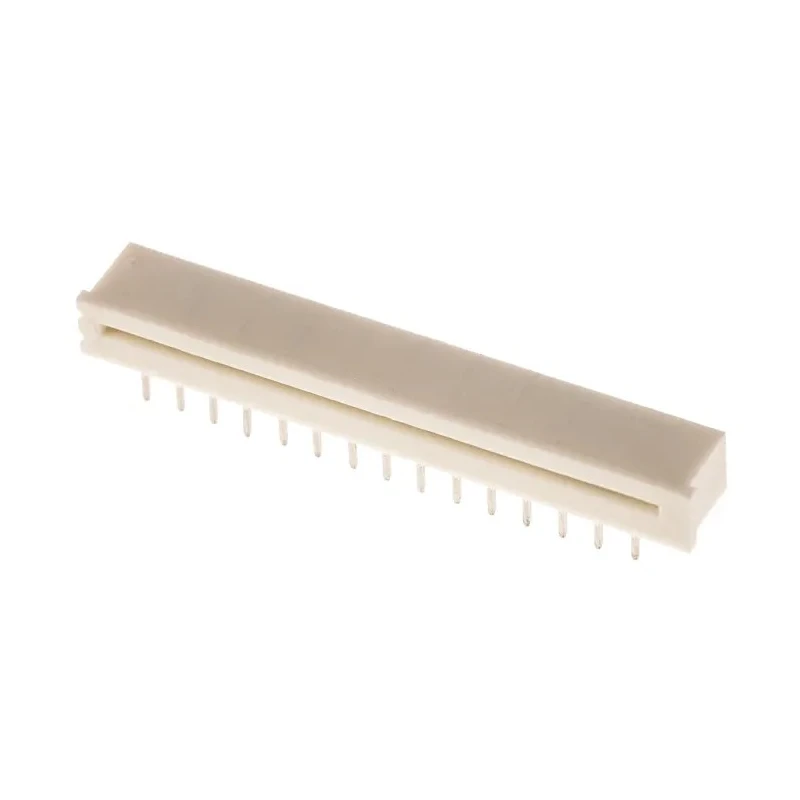

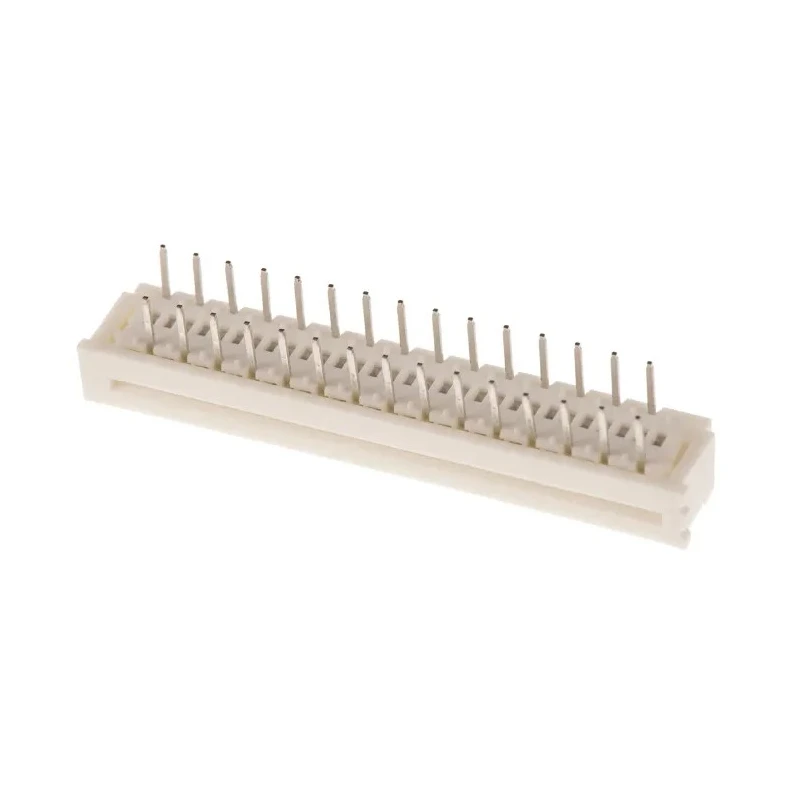

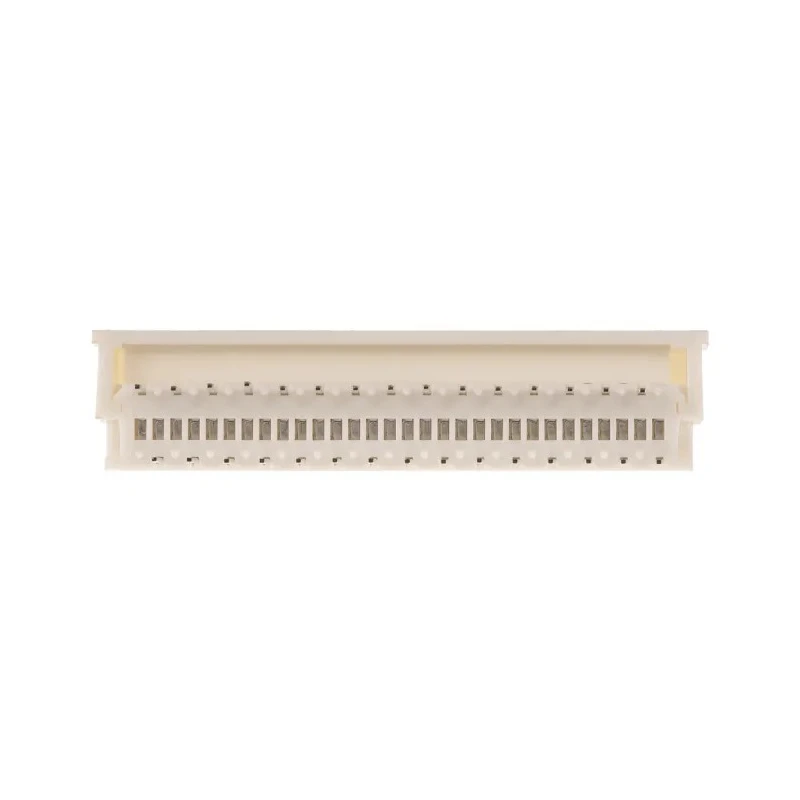

Molex 1.25 mm Pitch 30 Way Right Angle Female FPC Connector Through Hole Solder 39-53-2304
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- 30 contact points ensure reliable signal transmission in compact electronic assemblies.
- Right angle orientation supports efficient PCB layout with space constraints.
- Zero Insertion Force (ZIF) design reduces wear and allows repeat connection cycles.
- Phosphor Bronze contacts plated with tin bismuth over nickel ensure excellent conductivity and corrosion resistance.
- Housing made from Polybutylene Terephthalate offers durability and insulation.
- Rated for 1A current and 200V voltage for safe electrical operation.
- Operating temperature range from -20°C to 80°C suits automotive and industrial use.
- Through hole mount type enables solid PCB attachment and mechanical stability.
Product Description
Molex 39-53-2304 is a 1.25 mm pitch 30 way right angle female FPC (Flexible Printed Circuit) connector designed for through-hole PCB mounting with solder termination. This connector is part of the Molex 5597 series, widely recognized for its zero insertion force (ZIF) technology, enabling easy FPC insertion and removal without damage to contacts.
The phosphor bronze contacts, plated with tin bismuth over nickel, ensure reliable electrical connections with excellent corrosion resistance. Its polybutylene terephthalate housing offers mechanical durability suitable for automotive and other industrial electronic applications requiring compact space-saving connectors.
Operating voltage is rated at 200V with a current capacity of 1 ampere. The connector withstands temperatures between -20°C to 80°C, enabling usability in demanding environmental conditions. The right angle orientation allows for efficient PCB layouts where vertical space is limited.
The slide-type actuator and locking mechanism afford secure FPC retention, minimizing connection failures and ensuring long-term operational reliability. Applications include automotive electronics, industrial control systems, and consumer electronic devices requiring reliable and compact FPC connections.
30 contact points for robust signal integrity. Right angle female connector promoting compact PCB design. ZIF insertion force minimizing wear during repeated insertions. Durable phosphor bronze contacts with tin bismuth nickel plating.
Polybutylene terephthalate housing supporting mechanical and electrical reliability.
Molex products are trusted worldwide for high quality and performance in electronics. Explore the broad range of FPC Connectors offered on EnvMart for industrial-grade applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.25 mm.
This model has 30 contact points.
The maximum operating temperature is 80°C.
It is rated for a voltage of 200V.
This connector uses a through hole mount type for solid PCB attachment.
The housing is made from polybutylene terephthalate, and the contacts are phosphor bronze plated with tin bismuth over nickel.
It can handle a current of 1A.
The orientation of this connector is right angle, which supports efficient PCB layout.
This connector utilizes solder termination.
It features a Zero Insertion Force (ZIF) design, minimizing wear during repeated connections.
It is suitable for automotive electronics, industrial control systems, and consumer electronic devices requiring compact FPC connections.
The minimum operating temperature is -20°C.
