Molex 1 mm Pitch 27 Way Right Angle Female FPC Connector, Solder 52271-2769

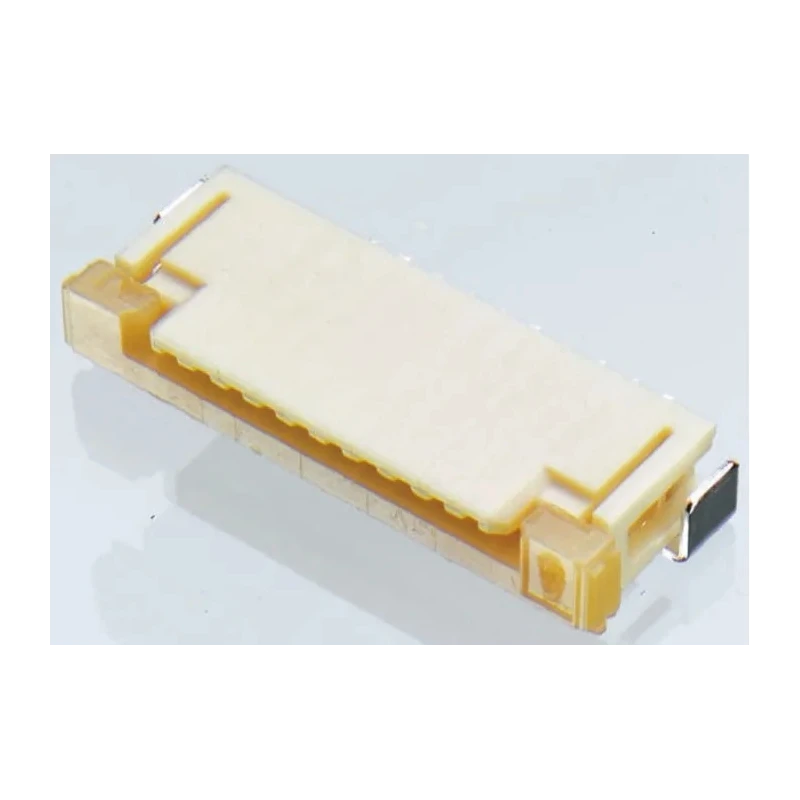

Molex 52271-2769 is a 27 way right angle female FPC connector featuring a 1 mm pitch and solder termination, ideal for secure, reliable connections in tight packaging spaces.

This Easy-On series connector includes a slide type actuator that rotates 30° to ease FPC insertion while ensuring a secure connection. The Zero Insertion Force (ZIF) design minimizes contact wear during repeated insertions and removals.

The right angle orientation with bottom contacts allows for space-efficient PCB mounting, complemented by solder tabs providing robust strain relief and PCB retention. The contacts are made from phosphor bronze with gold over nickel plating to enhance conductivity and corrosion resistance, housed within a durable nylon casing that integrates a locking mechanism for secure mating.

With an operating current of 500 mA and voltage rating of 50 V AC, this connector supports a wide range of industrial and commercial applications. It withstands operating temperatures from -20°C to 85°C, making it suitable for automotive, medical, consumer electronics, communications, and industrial equipment.

Slide type actuator for easy insertion and secure connection. ZIF contacts designed for repeat cycling with minimal wear. Right angle mount with bottom contact position for space savings. Gold over nickel plated phosphor bronze contacts for reliability.

Nylon housing with locking mechanism ensures retention. Solder tabs provide added strain relief and PCB retention. Rated for 50 V AC, 500 mA current applications. Temperature range from -20°C to 85°C supports demanding environments.

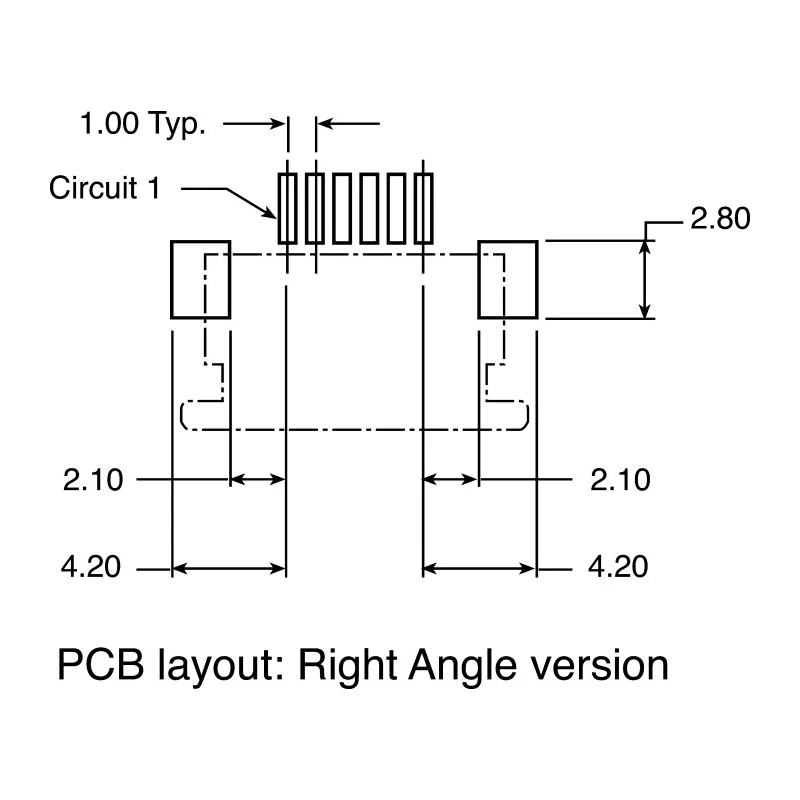

This connector series is widely used in automotive navigation systems, digital cameras, home security, mobile devices, medical equipment, and communication devices. For detailed technical drawings and 3D models, Molex provides resources to simplify PCB design and manufacturing.

Explore more in our FPC Connectors category for high-quality interface solutions.
