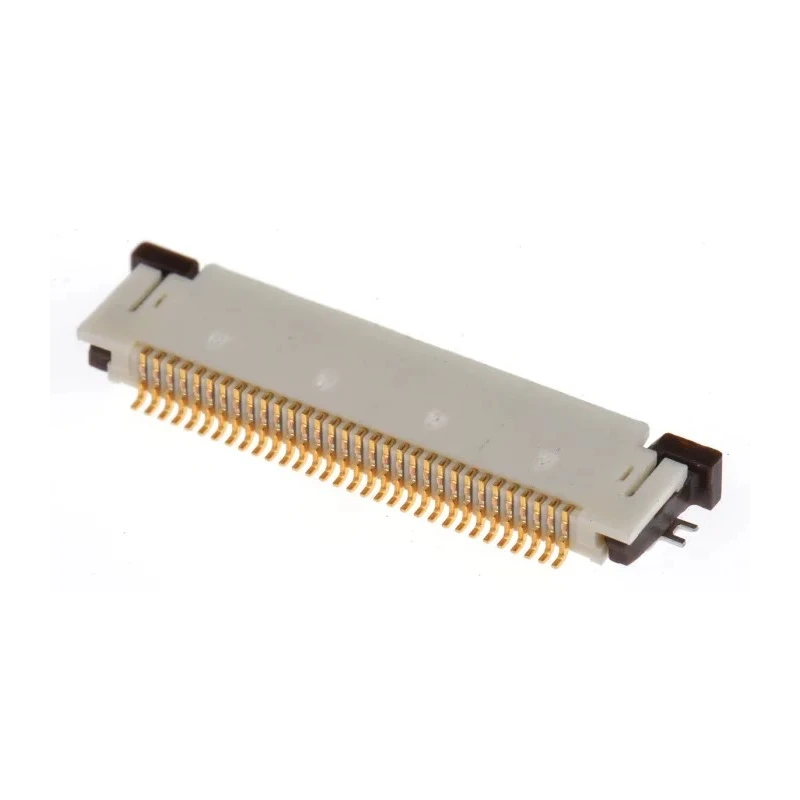

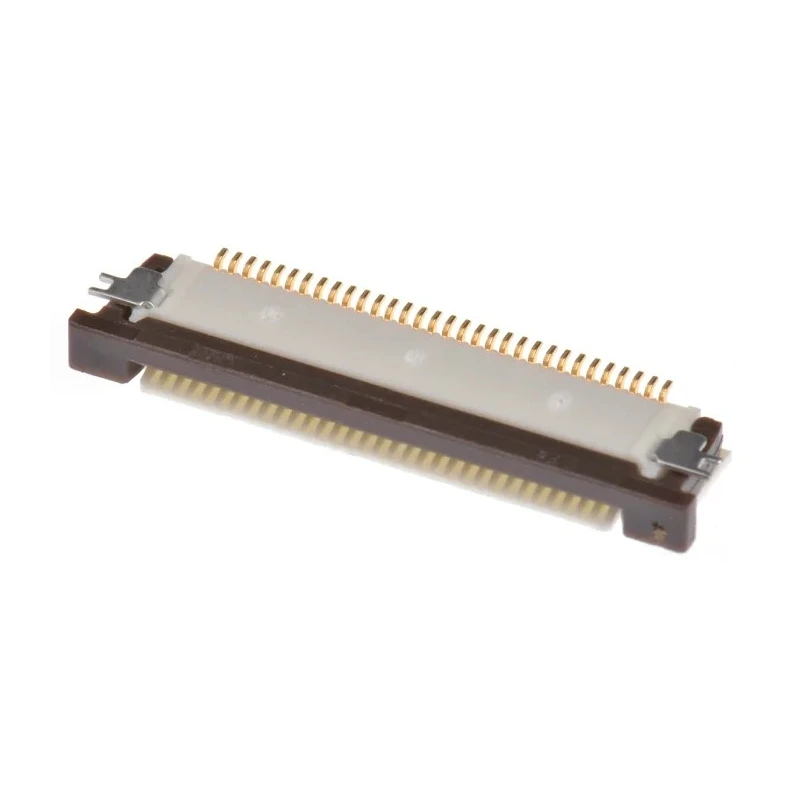

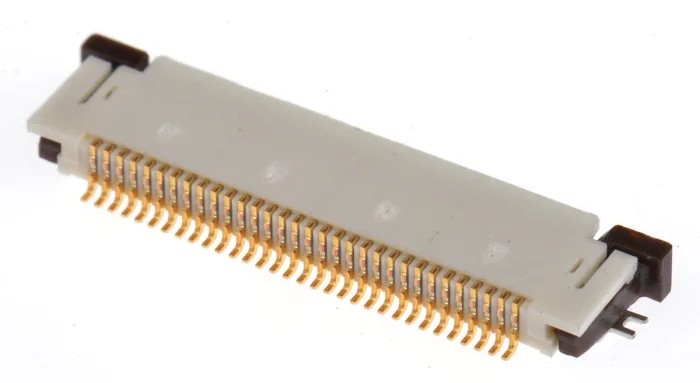

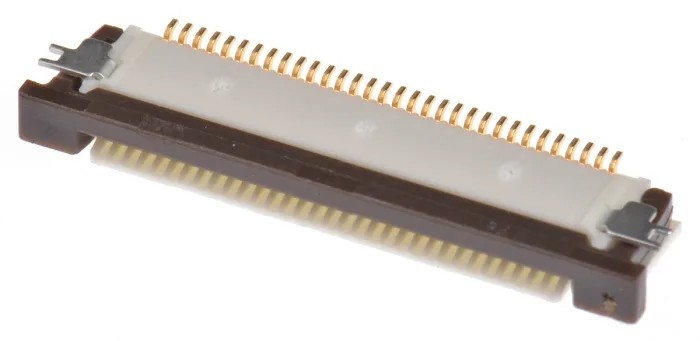

Molex 0.5 mm Pitch 32 Way Right Angle Female Easy-On FPC Connector, Solder 54104-3231
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 54104 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 0.5mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features a 0.5 mm pitch and 32 contacts for high-density interconnections.
- Right angle female connector designed for space-saving PCB mounting.
- Gold over nickel plated phosphor bronze contacts ensure reliable conductivity.
- Equipped with a slide type actuator for secure and easy FPC insertion.
- Operates between -20°C and 85°C suitable for industrial environments.
- Supports up to 500mA current and 50V voltage rating for low-power signal applications.
- Constructed with a nylon housing for durable insulation and mechanical strength.
- Includes solder termination with solder tabs for strong PCB retention and strain relief.
Product Description
Molex 54104-3231 is a 0.5 mm pitch, 32-way right angle female FPC connector designed for surface mount technology (SMT) PCB applications requiring compact and reliable connections.
This Easy-On FPC connector series utilizes a zero insertion force (ZIF) design with a slide-type actuator that facilitates easy insertion while ensuring a secure and reliable contact between the FPC cable and connector terminals.
The connector features gold over nickel plated phosphor bronze contacts that provide excellent conductivity and corrosion resistance. Its nylon housing offers robust mechanical support and electrical insulation. The connector supports a current rating of 500mA and voltage up to 50V, suitable for low power signal and data connections.
Operating temperature ranges from -20°C to 85°C make it fit for use across various industrial and commercial applications. Solder tabs on the base provide secure PCB retention and strain relief on the solder tail joints, improving durability in high vibration environments.
Typical applications include automotive navigation and audio systems, consumer electronics such as digital cameras and smartphones, data communications equipment, medical devices, and mobile computing products including tablets and notebooks.
32 contacts with a 0.5 mm pitch for high density and signal integrity. Right angle orientation conserves PCB space in compact assemblies. Slide type actuator provides a secure, ZIF connection minimizing wear with repetitive cycles.
Gold-plated phosphor bronze contacts combine conductivity and corrosion resistance. Solder termination and tabs give mechanical retention and strain relief on PCBs. Wide operating temperature range supports demanding environments.
Nylon housing ensures durability and insulation. Suitable for diverse industries including automotive, medical, and consumer electronics. Explore the Molex 54104 series and FPC connector range at EnvMart for advanced electronic interconnection solutions and reliable PCB mounting components.
Explore more products in our FPC Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 0.5 mm pitch and has 32 contacts, designed for high-density interconnections.
It has a maximum voltage rating of 50V, making it suitable for low-power signal applications.
The connector supports a current rating of up to 500mA.
It features a nylon housing for insulation and mechanical strength, and the contacts are made of gold over nickel plated phosphor bronze for conductivity and corrosion resistance.
The operating temperature range is from -20°C to 85°C, suitable for various industrial environments.
It includes solder termination with solder tabs that provide strong PCB retention and strain relief.
This connector is designed for surface mount technology (SMT) applications.
It has a right angle orientation, which helps conserve PCB space in compact assemblies.
This model is suitable for applications in automotive, medical, and consumer electronics industries.
It is equipped with a slide type actuator that facilitates easy insertion and ensures a secure connection.
The connector has a single row of contacts.
