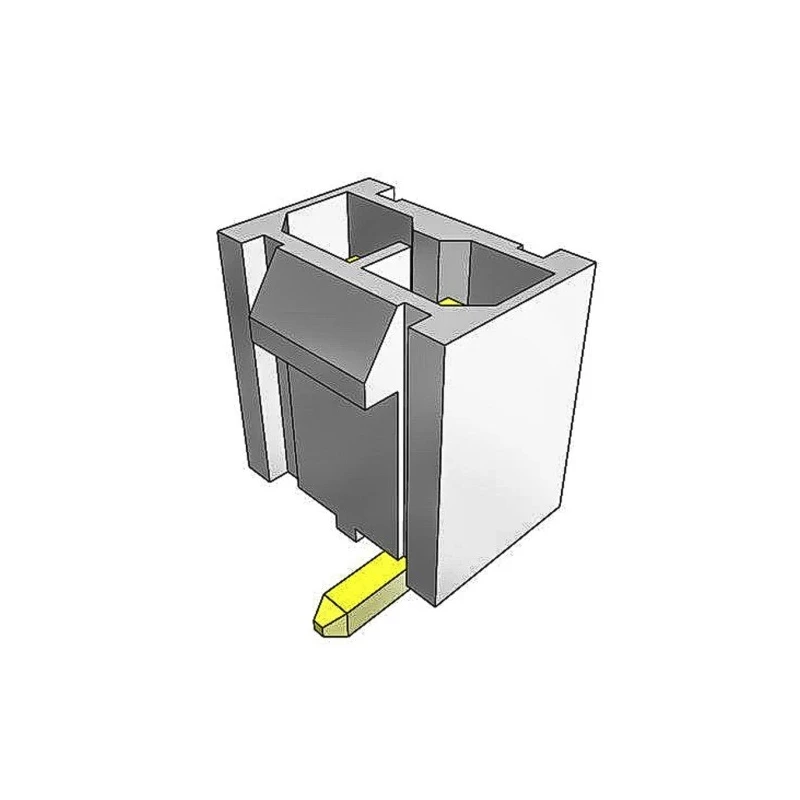

Samtec Male Crimp Connector Housing 4.19 mm Pitch 8 Way 2 Row Straight IPBD-04-D
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Samtec |
| Orientation | Straight |
| Length | 18mm |
| Model | IPBD-04-D |
| Width | 12mm |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | IPBD |
| Number of Rows | 2 |
| Pitch | 4.19mm |
| For Use With | FFC Connectors, IDC Connectors, IPBS Connectors, IPBT Connectors |
| Number of Contacts | 8 |
| Connector Gender | Male |
Key Features
- The housing is designed for a straight orientation ensuring precise cable mount alignment.
- Compatible with FFC, IDC, IPBS, and IPBT connectors for versatile cable interface.
- Constructed from durable polybutylene terephthalate material.
- Measures 18 mm in length and 12 mm in width for compact installation.
- Offers polarized single or double row configurations with plastic latches for secure connections.
- Suitable for 16 to 24 AWG cable with PVC or Teflon insulation.
- Manufactured in the United States with a quality focus.
- Ideal for electronic applications requiring reliable PCB connector housing solutions.
Product Description
Samtec IPBD-04-D male crimp connector housing is a high-quality electronic component used in cable and PCB connector assemblies. Featuring an 8-contact count arranged in 2 rows with a 4.19 mm pitch, this housing offers reliable connector mating and alignment in electronic assemblies.
The housing supports a straight cable orientation and mounts directly to cables, accepting cable types such as FFC, IDC, IPBS, and IPBT connectors. It is constructed from durable polybutylene terephthalate, providing excellent mechanical strength and heat resistance.
Its dimensions include an 18 mm length and 12 mm width, enabling compact and efficient cable management. The housing includes plastic latches to ensure secure and reliable mating with corresponding connectors. It is designed for use with cables ranging from 16 to 24 AWG, insulated with PVC or Teflon.
Manufactured in the United States, the IPBD-04-D series connector housing integrates well into various industrial, electronic, and manufacturing applications, offering consistent performance wherever high-quality connector housings are required.
The housing design supports polarized single or double row configurations with positive latching. Compatible with a broad range of connector types, enhancing modularity and interchangeability. Robust housing material ensures durability in demanding electronics environments.
Compact size supports precision cable routing in tight assemblies. High contact density reduces space while maintaining signal integrity. Ideal choice for PCB applications, electronic assemblies, and cable harness manufacturing.
Enables efficient and secure electrical connections in electronic and industrial equipment. Explore more electronic components and connectors in the EnvMart catalog for your industrial and manufacturing needs.
Explore more products in our PCB Connector & Wire Housing category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 4.19 mm, which allows for precise alignment in electronic assemblies.
This model measures 18 mm in length and 12 mm in width, facilitating compact installation in tight spaces.
It is compatible with FFC, IDC, IPBS, and IPBT connectors, enhancing its versatility in various applications.
The housing features 8 contacts arranged in 2 rows, providing a reliable connection for electronic assemblies.
The housing is constructed from polybutylene terephthalate, which offers excellent mechanical strength and heat resistance.
This connector housing is designed for a straight orientation, ensuring precise cable mount alignment during installation.
It is suitable for use with cables ranging from 16 to 24 AWG, insulated with PVC or Teflon.
Yes, it includes plastic latches that ensure secure and reliable mating with corresponding connectors.
This connector housing is manufactured in the United States, focusing on quality in production.
It is ideal for PCB applications, electronic assemblies, and cable harness manufacturing, providing reliable connections in these environments.
The connector gender of this housing is male, designed for use in various connector assemblies.
This model supports cable mounting, allowing for direct attachment to cables for efficient connections.
