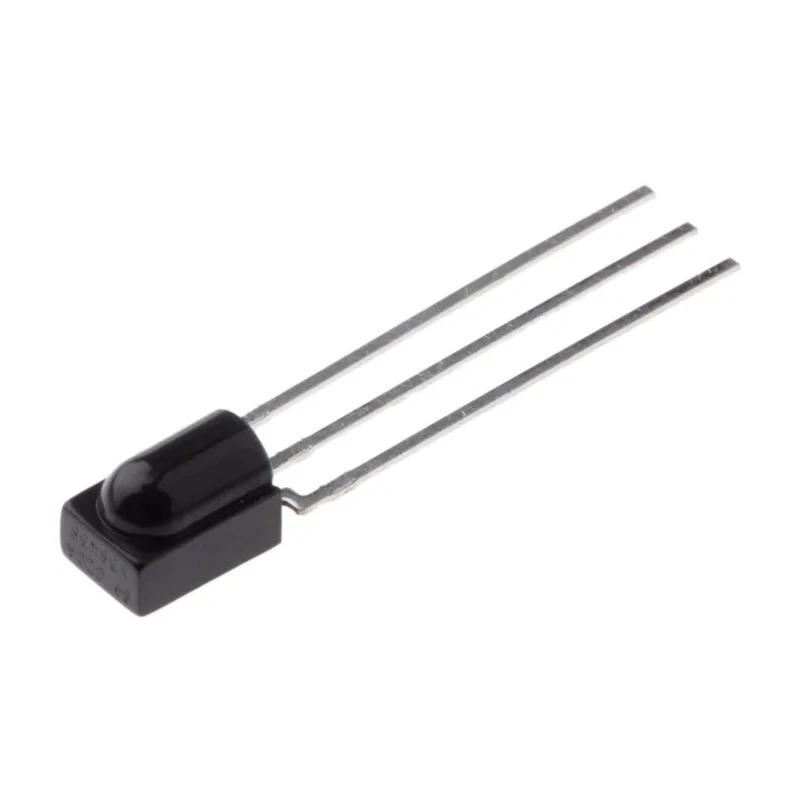

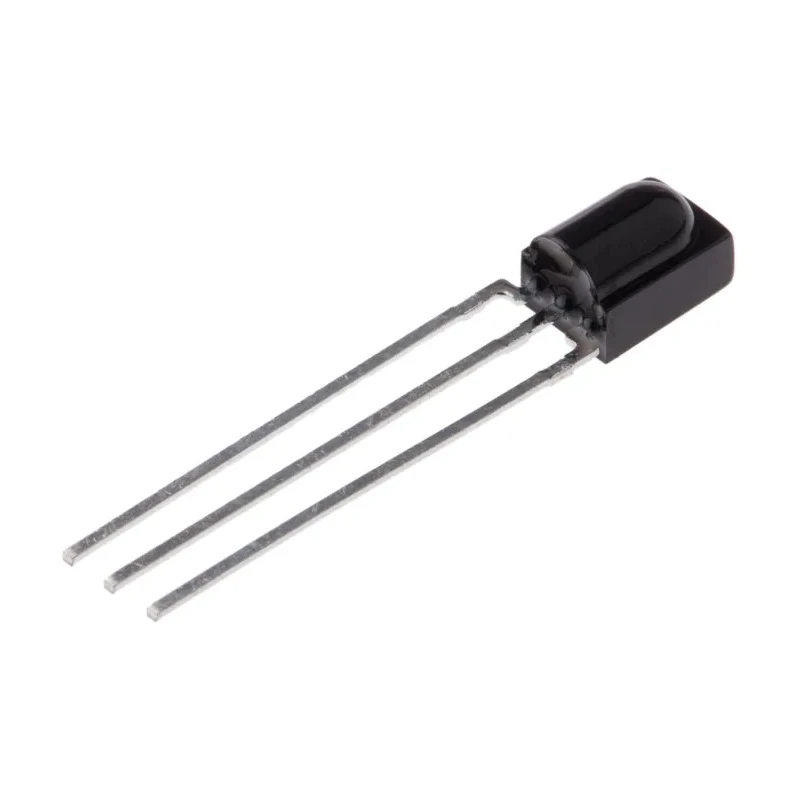

Vishay 38 kHz IR Receiver Through Hole Package 3-Pin Minicast 5 mm TSOP38438

Vishay TSOP38438 is a high-sensitivity infrared (IR) receiver designed for remote control and infrared communication systems. Operating at a carrier frequency of 38 kHz, this IR receiver supports a maximum transmission distance of 45 meters with a wide ±45-degree half-angle reception to ensure reliable detection of IR signals in various applications.

The device features a compact Minicast package with dimensions of 6.95 mm in height and 5 mm in width and length. It is designed for through-hole mounting with a convenient 3-pin layout, facilitating straightforward installation on printed circuit boards (PCBs).

With a supply voltage range from 2.5 V to 5.5 V and a low supply current of 450 μA, the TSOP38438 provides efficient power consumption without compromising performance. It delivers an output current of 5 mA, making it ideal for IR remote controls, infrared code learning, repeaters, light barriers, and proximity sensors.

Designed to perform reliably across a temperature range from -25 °C to 85 °C, this IR receiver suits industrial, consumer electronics, and HVAC system applications where robust IR sensing is needed.

The product is manufactured in the Philippines under Vishay's semiconductor standards, ensuring high quality and consistent operation for demanding environments. Operates at a carrier frequency of 38 kHz for infrared signal reception.

Maximum transmission distance up to 45 meters supports long-range remote control applications. Wide ±45-degree reception angle ensures robust IR signal detection. Compact Minicast package measuring 6.95 mm height and 5 mm width and length.

Supports supply voltage range from 2.5 V to 5.5 V with low supply current consumption of 450 μA. Provides output current of 5 mA suitable for infrared remote control systems. Designed for through-hole mounting with 3-pin configuration for easy PCB integration.

Operates reliably in temperature range from -25 °C to 85 °C. Specialized for IR remote control and infrared communication including proximity and presence sensing. Manufactured in the Philippines maintaining Vishay's semiconductor quality standards.

This Vishay IR receiver is widely applicable in electronics manufacturing, consumer electronics repair, automation control, and HVAC monitoring systems. It offers dependable infrared sensing to enhance signal fidelity in remote control and communication setups. Explore further Vishay electronic components and sensors on EnvMart to complement your projects and system designs.
