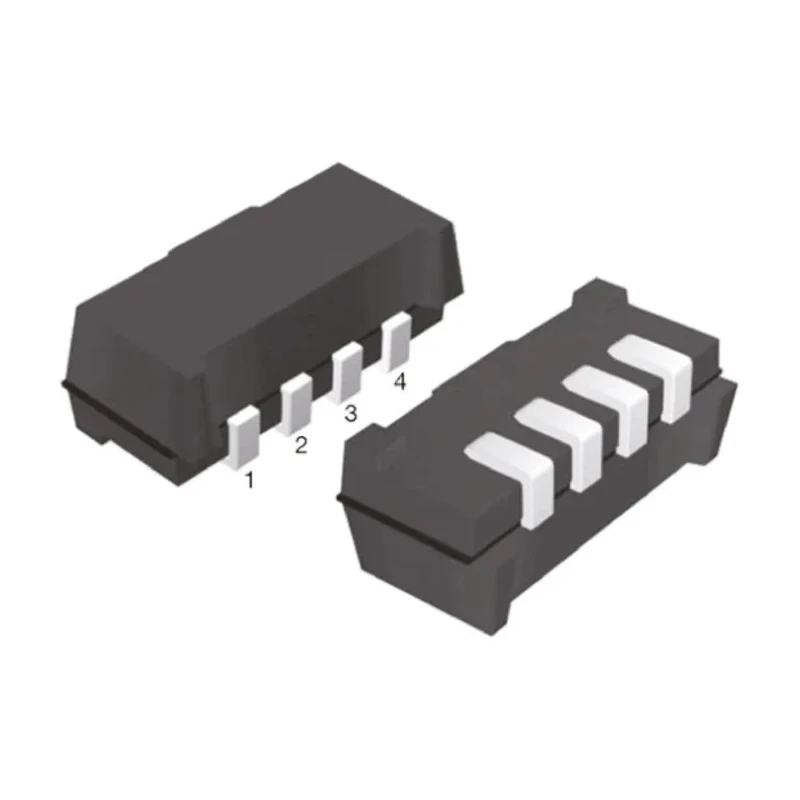

Vishay 36 kHz IR Receiver ±75° 30 m Range 2.5 V to 5.5 V Surface Mount TSOP75236WTT
Specifications
| Country of Origin | Philippines |
|---|---|
| Brand | Vishay |
| Orientation | Top View |
| Height | 2.35mm |
| Length | 6.8mm |
| Model | TSOP75236WTT |
| Packaging | Tape & Reel |
| Width | 3mm |
| Mount Type | Surface |
| Output Current | 5mA |
| Maximum transmission distance | 30m |
| Maximum Operating Temperature | 85°C |
| Package Type | TSOP |
| Minimum Operating Temperature | -25°C |
| Standards/Approvals | JEDEC |
| Number of Pins | 4 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 3mA |
| Carrier Frequency | 36kHz |
| Angle of Half Transmission Distance | ±75° |
| Range Automatic Gain Control AGC | AGC2 |
Key Features
- Operates at a carrier frequency of 36 kHz for infrared communication applications.
- Wide half transmission angle of ±75° enables flexible positioning and wide reception coverage.
- Maximum transmission distance up to 30 meters for remote control and sensor applications.
- Supply voltage range is from 2.5 V minimum to 5.5 V maximum with low supply current consumption of 3 mA.
- Compact surface mount package with 4 pins in TSOP form factor measuring 6.8 mm length by 3 mm width and 2.35 mm height.
- Output current capability of 5 mA suitable for direct interfacing with control circuits.
- Operating temperature range from -25°C to +85°C for reliable performance in industrial and commercial environments.
- Compliant with JEDEC standards and supplied in tape & reel packaging for automated assembly.
Product Description
Vishay TSOP75236WTT is a high sensitivity infrared (IR) receiver designed for remote control and infrared communication systems, supporting a carrier frequency of 36 kHz. The device operates reliably over a supply voltage range of 2.5 V to 5.5 V with low power consumption, making it ideal for battery-powered and energy-efficient applications.
The receiver features a wide ±75° reception angle and a maximum transmission distance of 30 meters, providing flexibility in alignment and excellent range for IR remote control, infrared code learning and repeater systems, infrared light barriers, and proximity sensing applications.
Its compact surface mount TSOP package, with a footprint of 6.8 mm length, 3 mm width, and 2.35 mm height, allows easy integration into densely packed printed circuit boards. The 4-pin pinout simplifies connection to control logic or microcontroller units.
The device supports automatic gain control (AGC2) to maintain stable output signal levels, with an output current of up to 5 mA suitable for driving subsequent amplifiers or logic inputs. Its operating temperature range from -25°C to 85°C ensures robust performance across diverse industrial, commercial, and consumer electronics environments.
Vishay TSOP75236WTT receivers conform to JEDEC standards and are supplied in tape & reel packaging to streamline automated manufacturing processes.
This IR receiver is widely used in laboratory instruments, HVAC controls, home automation, industrial automation, consumer electronics, and other applications requiring reliable infrared signal detection.
Operates on carrier frequency of 36 kHz. Wide reception angle ±75° for broad coverage. Up to 30 m transmission range supports remote sensing. Low supply current consumption of 3 mA optimizes power usage. Compact 4-pin surface mount TSOP package.
Operating temperature range from -25°C to 85°C. JEDEC compliant with tape & reel packaging. Explore more Vishay IR receivers and infrared sensing solutions on EnvMart for advanced industrial, laboratory, construction, and commercial applications.
Explore more products in our Infrared Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum transmission distance of the TSOP75236WTT infrared receiver is up to 30 meters.
This infrared receiver operates within a supply voltage range of 2.5 V to 5.5 V.
It has an output current capability of 5 mA, suitable for direct interfacing with control circuits.
The TSOP75236WTT operates at a carrier frequency of 36 kHz, making it suitable for infrared communication applications.
The operating temperature range for the TSOP75236WTT is from -25°C to +85°C.
The surface mount package of this model measures 6.8 mm in length, 3 mm in width, and 2.35 mm in height.
This infrared receiver features a wide half transmission angle of ±75°, allowing for flexible positioning and wide reception coverage.
It is supplied in tape & reel packaging, which is suitable for automated assembly processes.
Yes, the TSOP75236WTT supports automatic gain control (AGC2) to maintain stable output signal levels.
The TSOP75236WTT is designed for surface mounting with a top view orientation.
It conforms to JEDEC standards, ensuring compatibility with industry requirements.
This infrared receiver is suitable for applications such as remote control, infrared code learning, and proximity sensing.
