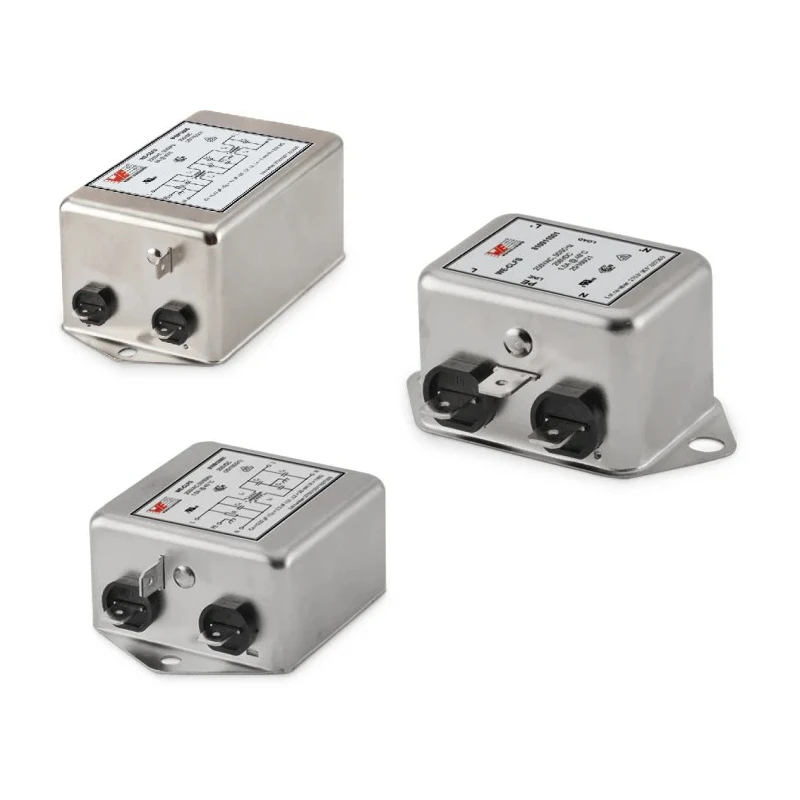

Wurth Elektronik Chassis Mount EMC Filter WE-CLFS 3A 250V 100Hz Operating Frequency 810911003112

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Chassis Mount EMC Filter WE-CLFS 3A 250V 100Hz Operating Frequency 810911003112

Name: Wurth Elektronik Chassis Mount EMC Filter WE-CLFS 3A 250V 100Hz Operating Frequency 810911003112
Brand: Wurth Elektronik
SKU: 176423



Category EMC Filters Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	54mm
Length	43mm
Depth	29mm
Mount Type	Chassis Mount
Operating Frequency	100, -25Hz
Series	WE-CLFS
Maximum Operating Temperature	100°C
Resistance	300mΩ
Capacitance	0.22μF
Minimum Operating Temperature	-25°C
Maximum Current	3A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V
Inductance	10mH
Standards/Approvals	EN 50110-1
Termination Style	Screw

Key Features

Operates at frequencies of 100Hz and -25Hz for noise suppression.
Features broadband noise suppression in both common and differential mode.
Equipped with 0.22µF capacitance and 10mH inductance for effective filtering.
Designed for single-phase power line filtering applications.
Mounting via chassis mount with screw termination for secure installation.
Operates reliably in temperatures ranging from -25°C to 100°C.
Leakage current rated at 0mA ensuring efficiency.
Resistance of 300mΩ for minimal loss.

Product Description

Wurth Elektronik model 810911003112 is a chassis mount EMC filter designed for effective electromagnetic compatibility in industrial electronics and telecommunications.

This single-phase filter handles a maximum current of 3A and a maximum voltage of 250V. It operates at frequencies of 100Hz and -25Hz, providing broadband noise suppression in common and differential modes to improve power quality and reduce interference.

The filter is configured with 0.22µF capacitance and 10mH inductance, optimizing it for use in switched-mode power supplies, household appliances, and DC applications.

Its compact size with dimensions 43mm in length, 54mm in height, and 29mm in depth allows for easy installation in constrained spaces. The termination style uses a screw connection with chassis mounting, facilitating robust and secure attachment.

Operating temperature ranges from -25°C to 100°C, suitable for various environments. The leakage current is rated at 0mA, contributing to energy efficiency and low power loss. The resistance of 300mΩ ensures minimal impact on circuit performance.

Manufactured in China, this filter meets the EN 50110-1 standard for safety and performance. It complies with RoHS directives, supporting environmentally responsible applications. Common industrial applications include use in telecommunications equipment, power supplies, household goods, and industrial electronics systems.

Operates at frequencies of 100Hz and -25Hz for noise suppression. Broadband noise suppression in common and differential modes. Compact chassis mount design with screw termination. Capacitance of 0.22µF and inductance of 10mH.

Temperature range from -25°C to 100°C ensures wide application. 0mA leakage current supports energy efficiency. Low resistance of 300mΩ minimizes power loss. Complies with EN 50110-1 safety standards. RoHS compliant for environmental safety.
