TDK Chassis Mount EMC Filter 16 A 520V AC 50Hz, 60Hz Terminal Block 3 Phase B84143V0016R227

Free Delivery in India | Lowest Global Shipping Charges

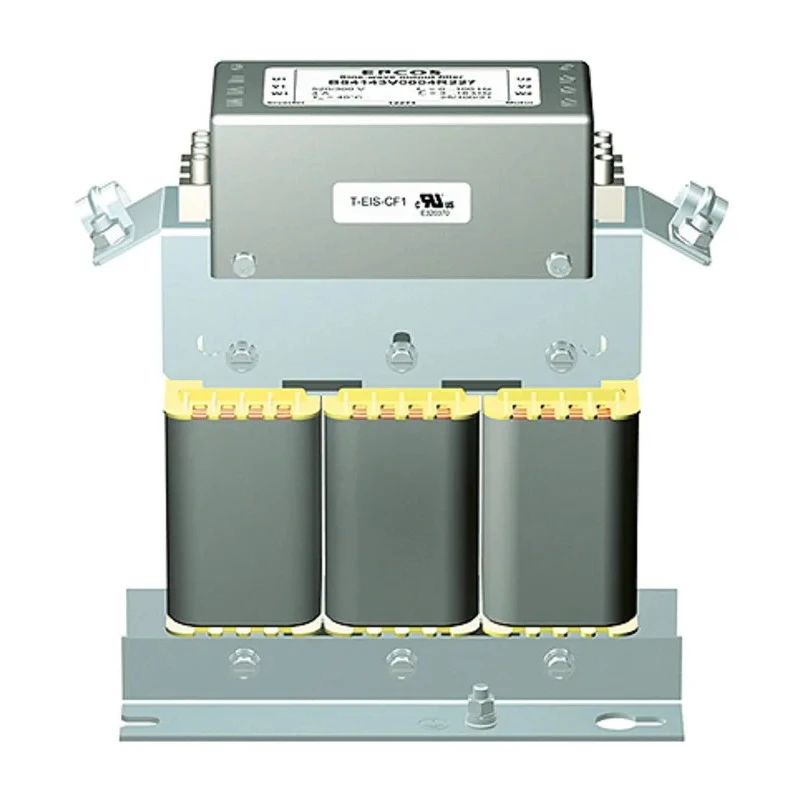

TDK Chassis Mount EMC Filter 16 A 520V AC 50Hz, 60Hz Terminal Block 3 Phase B84143V0016R227



Category EMC Filters Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	350mm
Length	400mm
Model	B84143V0016R227
Depth	146mm
Packaging	Bulk
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84143V
Maximum Operating Temperature	70°C
Number Of Stages	1
Minimum Operating Temperature	-25°C
Maximum Current	16A
Number of Phases	3
Maximum Voltage	520V ac
Inductance	3mH
Standards/Approvals	cURus
Termination Style	Terminal Block

Key Features

Compact design with an easy installation chassis mount structure.
Features natural cooling and reduced motor noise through eddy current losses.
Optimized for full load operation with a single stage 3-phase filter.
Includes finger safe terminal blocks and copper busbar terminals for robust connections.
Suitable for frequency converters used in HVAC, traction, pump, and elevator motor drives.
IP20 protection available up to 95 A current rating.
Operates efficiently within temperature ranges of -25°C to 70°C.
Complies with cURus standards ensuring safety and reliability.

Product Description

TDK B84143V0016R227 is a high-performance chassis mount EMC filter suitable for 3-phase systems operating at 50Hz to 60Hz with a maximum current rating of 16 A and voltage rating of 520V AC. This EMC filter series is designed to provide optimal sinusoidal output waveforms, reducing electrical noise and ripple in motor drives.

The compact chassis mount design facilitates easy installation in industrial motor control applications, including HVAC systems, conveyer belts, traction equipment, pumps, and elevators. Its construction features low eddy current losses and natural cooling to enhance durability and operational efficiency.

Terminal block termination style allows secure wiring, with finger-safe blocks for currents up to 180 A and copper busbar terminals for higher current versions. The filter's IP20 protection rating provides safety against solid objects. Operating temperature ranges from -25°C to 70°C, making it suitable for various industrial environments.

The product complies with the cURus safety standards, ensuring that it meets rigorous electrical safety and performance requirements. It incorporates a UL approved insulation system (T-EIS-CF1) for enhanced reliability.

Physical dimensions measure 400mm in length, 350mm in height, and 146mm in depth, supporting compact installation spaces. These filters are optimized for effective use with frequency converters to maintain long motor cable runs under 10 meters.

Compact chassis mount EMC filter for 3-phase motor drives. Rated 16 A current and 520V AC maximum voltage at 50Hz/60Hz. Natural cooling with eddy current loss reduction for quiet operation. Finger safe terminal blocks and copper busbar terminals ensure safe and robust connections.

IP20 protection standard for solid object resistance. Operating temperature range from -25°C to 70°C suitable for industrial environments. Complies with cURus approvals and UL insulation system standards.

This EMC filter is an ideal component for industrial, commercial, and HVAC motor drive applications requiring high reliability and noise suppression. Browse the range of EMC Filters and electronic components in the EnvMart catalog for more solutions.
