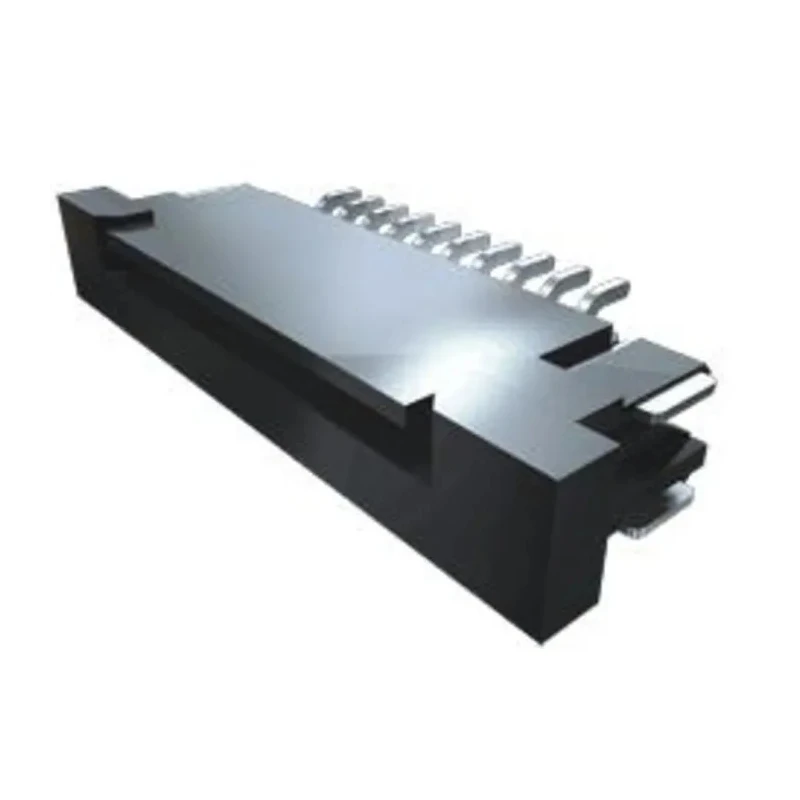

Samtec 1 mm Pitch 10 Way Horizontal Female FPC Connector, Solder, Surface Mount, 200V, ZF1-10-01-T-WT
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V |
| Brand | Samtec |
| Orientation | Horizontal |
| Current | 2.9A |
| Model | ZF1-10-01-T-WT |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | ZF1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | FFC |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Bottom |
Key Features
- Reliable horizontal surface mount FPC connector suitable for use in PCB designs.
- Features a 1 mm pitch and 10-way female contact layout for flexible connections.
- Phosphor bronze contacts with gold over nickel plating ensure excellent conductivity and corrosion resistance.
- Supports maximum operating voltage of 200V and maximum current rating of 2.9A.
- Designed for bottom contact position with ZIF insertion force for easy and secure termination.
- Operates within a wide temperature range from -55°C to 105°C for industrial environments.
- Housing made from liquid crystal polymer guarantees dimensional stability and robustness.
- Orientation is horizontal, providing efficient PCB space utilization.
Product Description
The Samtec ZF1-10-01-T-WT is a high-quality 10-way horizontal female FPC connector engineered for precise surface mount applications in modern PCB designs. Featuring a 1 mm pitch and a robust phosphor bronze contact system, this connector delivers consistent electrical performance and is ideally suited for demanding industrial, laboratory, or commercial electronic systems.
Designed for surface mounting, the connector simplifies PCB assembly and ensures reliable contact thanks to the bottom-position configuration and ZIF (Zero Insertion Force) mechanism. Its gold over nickel contact plating enhances conductivity and longevity, providing low contact resistance and lasting corrosion resistance even in harsh environments.
The ZF1-10-01-T-WT model supports a maximum operating voltage of 200 V and a current rating up to 2.9 A per contact, making it appropriate for a wide array of signal or power applications. The connector operates across a broad temperature range from -55°C to 105°C, ensuring stable and durable performance in both tightly controlled laboratory and industrial settings.
Its housing is manufactured from liquid crystal polymer, offering excellent mechanical strength, dimensional stability, and resistance to chemical and thermal degradation. The horizontal orientation optimizes board space and layout flexibility, especially for compact designs and multi-connector configurations.
This connector utilizes solder termination, making it compatible with industrial-grade manual and automated soldering processes while ensuring firm mechanical attachment to the PCB. The female gender and FFC subtype facilitate secure mating with flat flexible cables for clean, organized signal distribution.
Key use cases include industrial electronic assemblies, laboratory instrumentation, control panels, automation equipment, and commercial device manufacturing requiring high-reliability flexible circuit connections.
Explore more high-performance PCB Connectors and Samtec model variants in the EnvMart Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating voltage of this connector is 200V.
This model has a maximum current rating of 2.9A per contact.
The pitch size of this FPC connector is 1 mm.
It utilizes solder termination, making it compatible with both manual and automated soldering processes.
The housing is made from liquid crystal polymer, and the contacts are constructed from phosphor bronze with gold over nickel plating.
This connector operates within a temperature range of -55°C to 105°C.
This connector features 10 contacts.
The orientation of this connector is horizontal, which optimizes PCB space utilization.
It is suitable for industrial electronic assemblies, laboratory instrumentation, control panels, automation equipment, and commercial device manufacturing.
This connector features a ZIF (Zero Insertion Force) insertion mechanism for easy and secure termination.
The connector gender is female, designed for secure mating with flat flexible cables.
The connector is manufactured in India.
