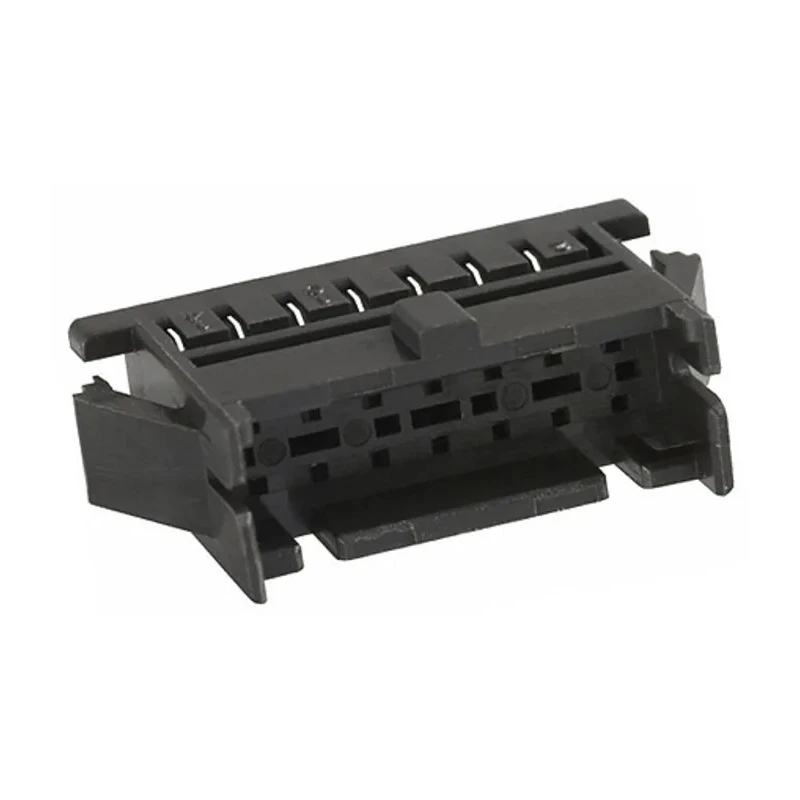

Hirose Male Connector Housing 2 mm Pitch, 16 Way, 2 Row Straight, Polyamide DF11
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 23mm |
| Model | DF11 |
| Width | 13mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series Contact |
| Number of Contacts | 16 |
| Connector Gender | Male |
Key Features
- Connector housing features 16 contacts to accommodate multiple signals.
- Double row straight orientation with 2 mm pitch for space-saving PCB layouts.
- Mating ribs prevent incorrect insertion and twisting during installation.
- Friction locking mechanism secures the connector to its mating socket.
- Mounting ears provide reliable retention when panel-mounted.
- Polyamide material ensures robust insulation and mechanical strength.
- Panel mountable; suitable for applications requiring secure installation.
- Compatible with DF11 series contacts (sold separately).
Product Description
The Hirose DF11-16DEP-2C Male Connector Housing is a high-quality PCB wire-to-wire connector developed for applications requiring a compact, reliable, and secure connection solution. Featuring a double row configuration, this housing supports 16 contacts at a precise 2 mm pitch, making it suitable for dense, space-constrained circuit board layouts.
This male connector housing is designed with a straight orientation and features guide ribs to prevent mismating and offer protection against twisting during installation. Its polyamide construction ensures superior mechanical strength and reliable insulation properties. The friction locking mechanism firmly connects the housing to its mating socket, minimizing the risk of accidental disconnection.
Mounting ears are integrated into the design to ensure strong retention when the connector is panel-mounted, supporting panel thicknesses from 1.0 mm to 1.6 mm, as required in professional electronic assemblies. The compact body (13 mm width, 23 mm length) enables double row contact configuration within the same spatial footprint as a single row, optimizing PCB real estate.
DF11 series contacts must be ordered separately and are compatible with this housing, providing flexibility and adaptability to different signal requirements. The robust design adheres to high engineering standards, suitable for applications such as digital cameras, LCD displays, video recorders, car navigation systems, access control, and various measurement devices.
Typical industrial uses include portable electronics, electronic instrumentation, and embedded system assemblies where multi-signal connectivity is essential.
Browse related wire housings and PCB connector solutions in the PCB Connector Housing category to find complementary parts and expand installation options with Hirose and other leading industrial brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose Male Connector Housing features a pitch of 2 mm, allowing for compact and efficient PCB layouts.
This connector housing supports 16 contacts, suitable for multiple signal connections.
The connector housing has a straight orientation, designed for easy installation and connection.
The housing is constructed from polyamide, providing reliable insulation and mechanical strength.
The dimensions of the housing are 23 mm in length and 13 mm in width.
Yes, this model is designed for panel mounting, with integrated mounting ears for secure installation.
This housing is compatible with DF11 series contacts, which must be ordered separately.
It is suitable for applications such as digital cameras, LCD displays, video recorders, and various measurement devices.
The connector housing is manufactured in India.
This model features a double row configuration, allowing for efficient use of space on the PCB.
Yes, it includes a friction locking mechanism that secures the connector to its mating socket, minimizing accidental disconnection.
The housing can accommodate panel thicknesses ranging from 1.0 mm to 1.6 mm.
