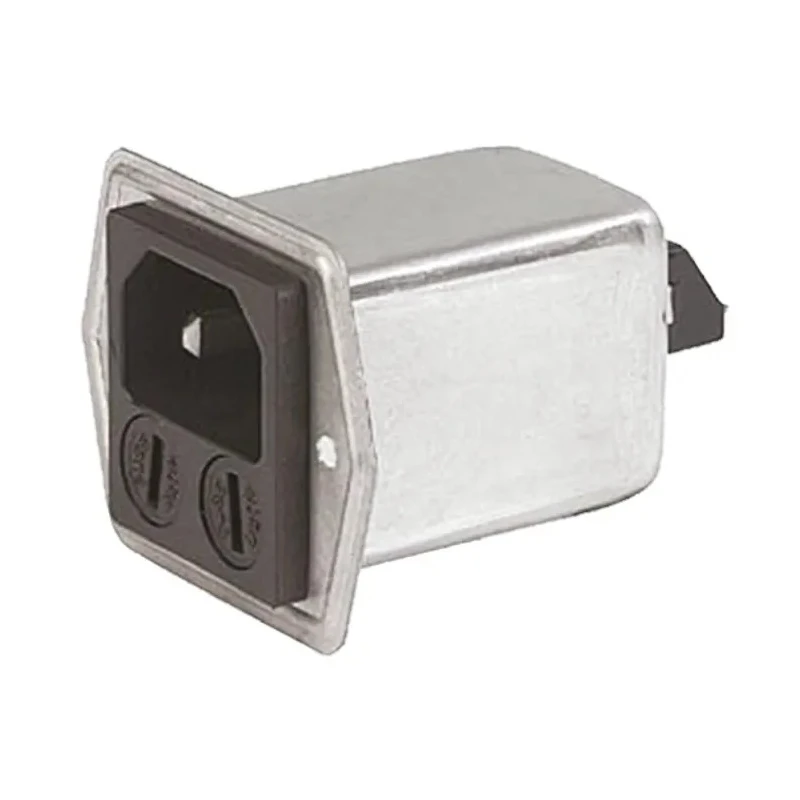

Schurter 250V AC 1A Panel Mount IEC Connector Male 2 Fuse Quick Connect 5707.0101.312
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 1A |
| Height | 42mm |
| Filter Type | Line |
| Depth | 59.6mm |
| Width | 51mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| Number of Fuses | 2 |
| IEC Connector Type | C18, C14 |
Key Features
- The connector is designed for panel mounting with screw or snap-in installation.
- It supports line filtering with a fully closed filter case for high performance.
- Features dual screw type fuse holders accepting 5 x 20 mm fuses.
- Quick connect terminals measure 6.3 x 0.8 mm allowing easy installation.
- Operates efficiently in temperature range from -25°C to 85°C.
- The connector complies with IEC Connector Types C18 and C14.
- Suitable for industrial and medical filtration applications requiring panel mount IEC inlets.
Product Description
Schurter 5707.0101.312 is a panel mount IEC Connector rated at 250V AC and 1A current featuring a robust line filter and male contact gender design. This component is engineered to provide efficient filtering performance with a completely closed filter case, suitable for industrial, laboratory, electronic components, and medical device applications.
The 5707 series supports screw-on or snap-in panel mounting with installation screws included, enabling secure attachment from front or rear. It operates at standard frequencies of 50 and 60 Hz and includes quick connect terminations sized at 6.3 x 0.8 mm for fast and reliable electrical connections.
Dual screw type fuse holders accommodate 5 x 20 mm fuses (sold separately), offering protection and compliance with safety standards despite no specific certifications being listed.
The device performs reliably across a wide temperature range from -25°C minimum to a maximum of 85°C, making it suitable for varied environmental conditions. Physical dimensions are compact with a height of 42 mm, width of 51 mm, and depth of 59.6 mm, fitting easily into a variety of panel mount configurations.
Applications include use in industrial power connectors, electronics filtration, medical equipment, and other scenarios demanding durable IEC filtered connectors with panel mount capability and fuse protection.
The connector provides high-performance line filtering in a fully enclosed case. Quick connect terminations facilitate swift installation and maintenance. Dual fuse holders accept standard 5 x 20 mm fuses, enhancing safety.
Robust design suitable for panel mounting via screw or snap-in methods. Operates effectively in temperatures from -25°C to 85°C. Meets IEC C18 and C14 connector type specifications. Compact footprint enables integration in tight panel spaces.
Ideal for industrial, electronic, HVAC, medical, and laboratory use cases.
Choose Schurter 5707.0101.312 for reliable, high-quality IEC panel mount connectors with integral line filtering and fuse protection. Explore more connectors and power components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for 250V AC.
It can handle a maximum current of 1A.
The dimensions are 42 mm in height, 51 mm in width, and 59.6 mm in depth.
It accepts dual screw type fuses sized 5 x 20 mm.
The operating temperature range is from -25°C to 85°C.
It supports panel mounting with either screw or snap-in installation.
It is suitable for industrial, laboratory, electronic components, and medical device applications.
The termination type is quick connect, measuring 6.3 x 0.8 mm.
It complies with IEC Connector Types C18 and C14.
It operates efficiently at standard frequencies of 50 and 60 Hz.
The country of origin for this connector is India.
Yes, installation screws are included for secure attachment.
