Schurter 250V AC 6A Panel Mount IEC Connector Male Quick Connect Terminals 5120.1004.0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 6A |
| Height | 24.6mm |
| Filter Type | Line |
| Depth | 54.5mm |
| Width | 48.6mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C14 |
| Quick connect terminals | 6.3 x 0.8 mm |
Key Features
- Designed for panel mount applications ensuring secure fitting.
- Male connector type with C14 IEC connector compatibility.
- Line filter type with 60Hz operating frequency for noise reduction.

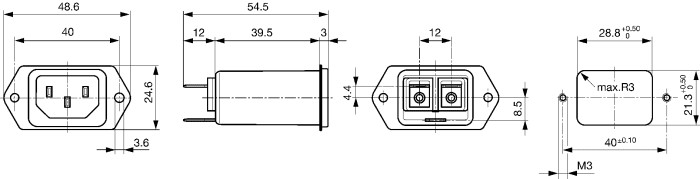

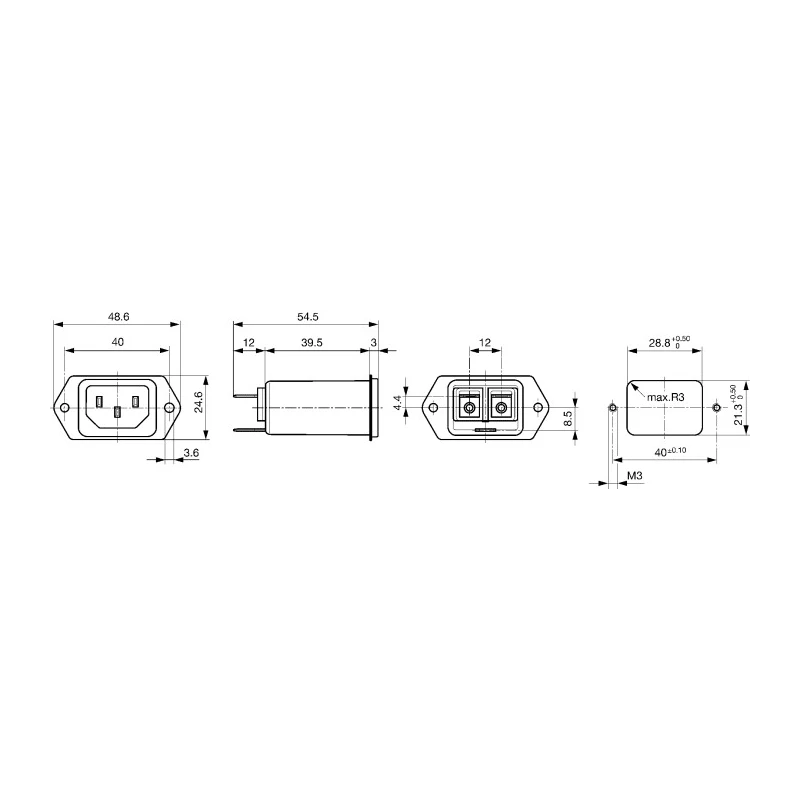

- Compact dimensions with height 24.6 mm, width 48.6 mm, and depth 54.5 mm.
- Operates reliably from -25°C up to 85°C temperature range.
- Quick connect terminals measuring 6.3 x 0.8 mm for easy wiring.
- Suitable for fuse size 5 x 20 mm (fuse drawer not included).
Product Description

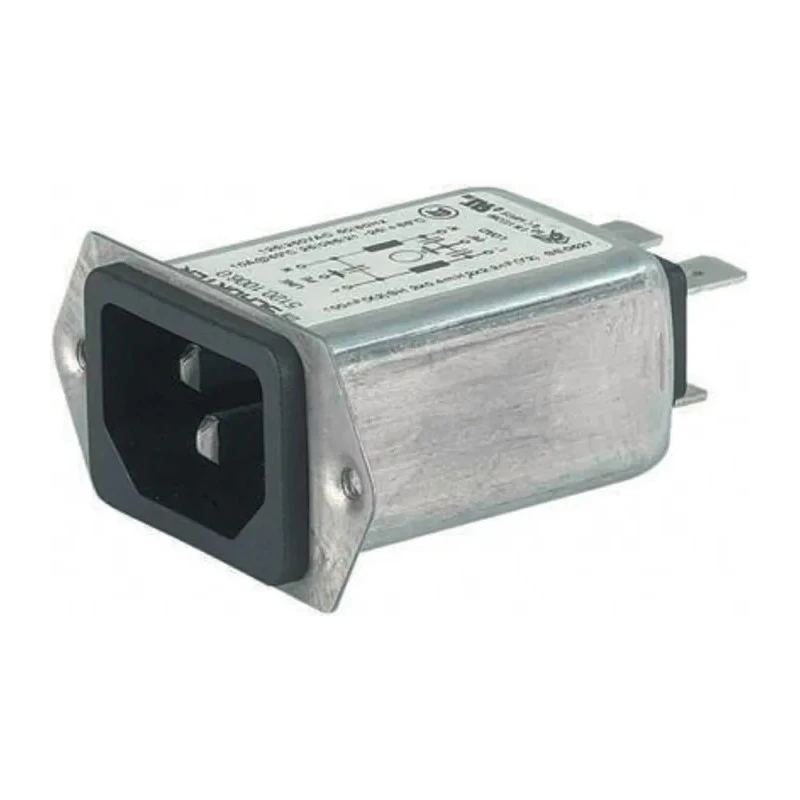

Schurter 5120.1004.0 is a panel mount IEC connector designed for integration into electronic and power equipment requiring 250V AC at 6A operational current. Equipped with quick connect terminals for streamlined electrical connections, this male C14 connector ensures efficient and reliable power delivery in various industrial, laboratory, and commercial applications.

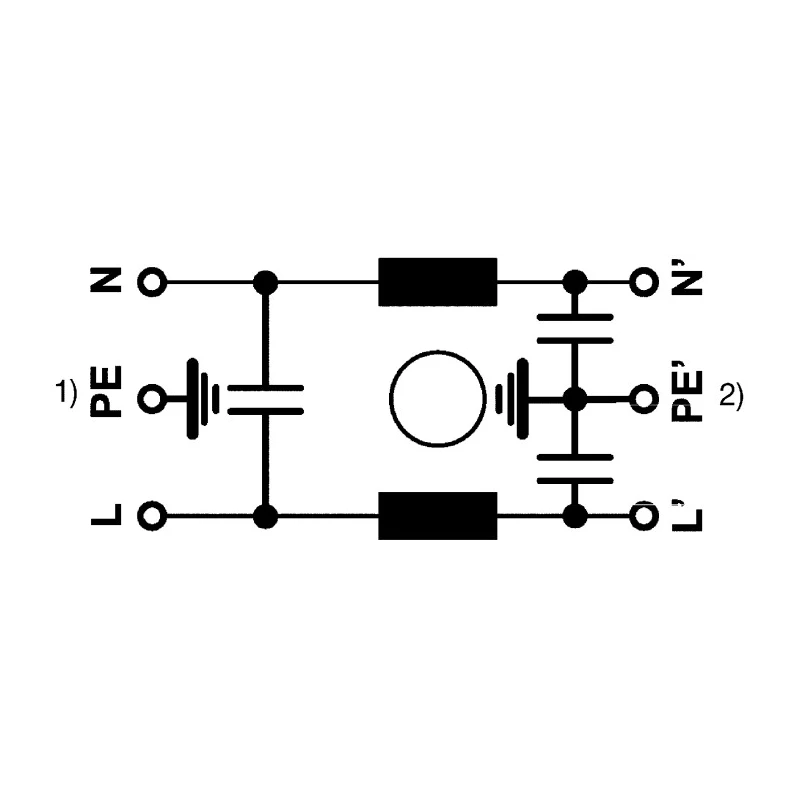

The component features a fully enclosed 5120 series filter case, providing effective line filtering to reduce EMI and improve device performance. Its compact design with a height of 24.6 mm, width of 48.6 mm, and depth of 54.5 mm suits space-constrained installations while maintaining robust electrical performance.
Operating frequency is 60Hz with a wide temperature range from -25°C to 85°C, making it suitable for demanding environments. The quick connect terminals have dimensions of 6.3 x 0.8 mm for reliable and fast connection. Note that the fuse drawer is sold separately and accommodates Ø5x20 mm fuse sizes.
Applications include use in electronic control panels, power supplies, laboratory instruments, and industrial machinery where secure and noise-filtered power connectors are essential. The panel mount design simplifies installation and maintenance.
Panel mount male IEC connector complies with Schurter 5120 series specifications. High performance line filter with compact and sealed case design. Suitable for industrial, electronic, laboratory, and commercial power distribution.
Quick connect terminals ensure easy and secure wiring installation. Reliable operation under wide temperature and frequency conditions. Explore more IEC Connectors and power components from Schurter and other leading brands on EnvMart for your electrical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This IEC connector is rated for a maximum voltage of 250V AC and a current of 6A.
The dimensions of this model are height 24.6 mm, width 48.6 mm, and depth 54.5 mm.
It features quick connect terminals measuring 6.3 x 0.8 mm for easy wiring.
It operates reliably within a temperature range of -25°C to 85°C.
This model accommodates a fuse size of 5 x 20 mm, although the fuse drawer is sold separately.
The operating frequency for this connector is 60Hz.
The connector is a male type, specifically a male C14 IEC connector.
This model is designed for panel mount applications, ensuring secure fitting.
It is suitable for use in electronic control panels, power supplies, laboratory instruments, and industrial machinery.
It features a line filter type designed to reduce electromagnetic interference (EMI).
The compact design allows for space-constrained installations while maintaining robust electrical performance.
This connector is manufactured in India.
