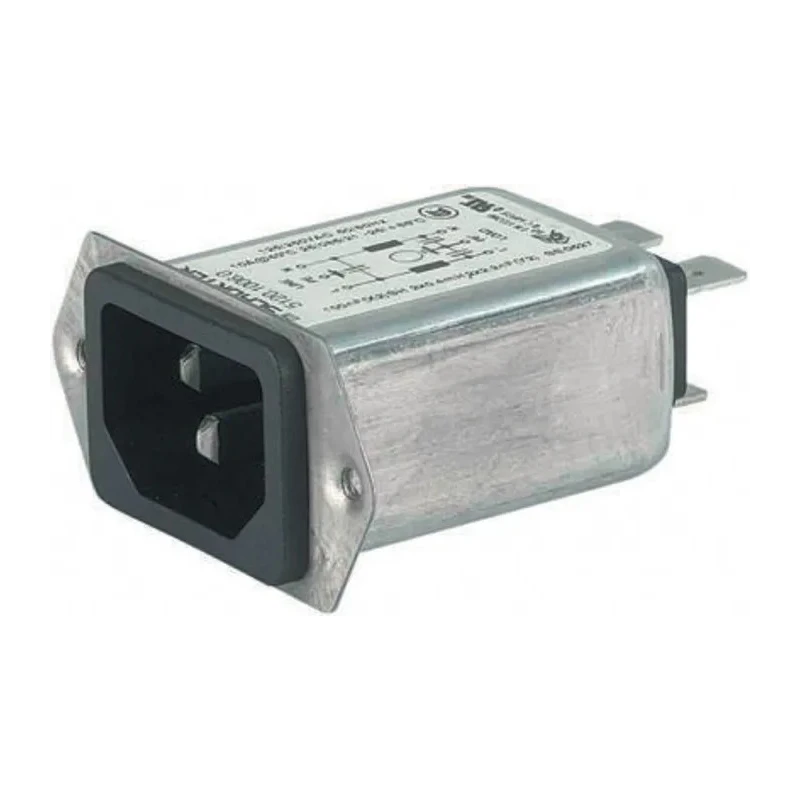

Schurter 15A 250V AC Panel Mount IEC Connector Male Quick Connect 5120.1007.0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 15A |
| Height | 24.6mm |
| Filter Type | Line |
| Depth | 54.5mm |
| Width | 48.6mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C14 |
| Quick connect terminals | 6.3 x 0.8 mm |
Key Features
- Rated for a current of 15 amperes and voltage of 250 volts AC.
- Features C14 IEC connector type suitable for industrial and electronic applications.
- Quick connect terminals measuring 6.3 x 0.8 mm for secure and efficient connections.

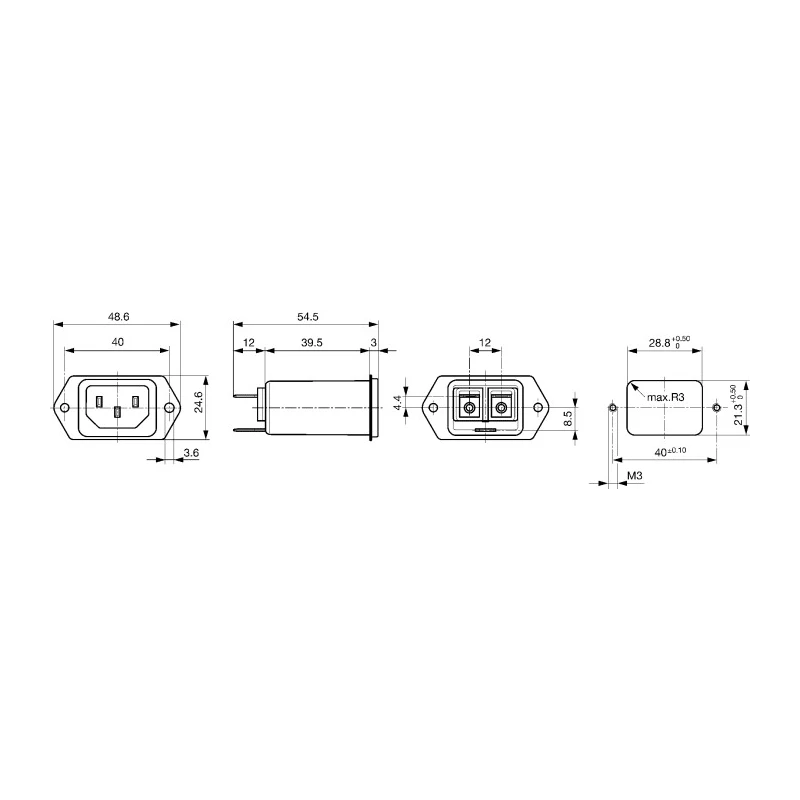

- Compact panel mount design with dimensions 48.6mm width, 24.6mm height, and 54.5mm depth.
- Operates efficiently within temperature range of -25°C to 85°C.
- Compatible with 5 x 20 mm fuse size with fuse drawer sold separately.
- Constructed with male connector gender contacts.

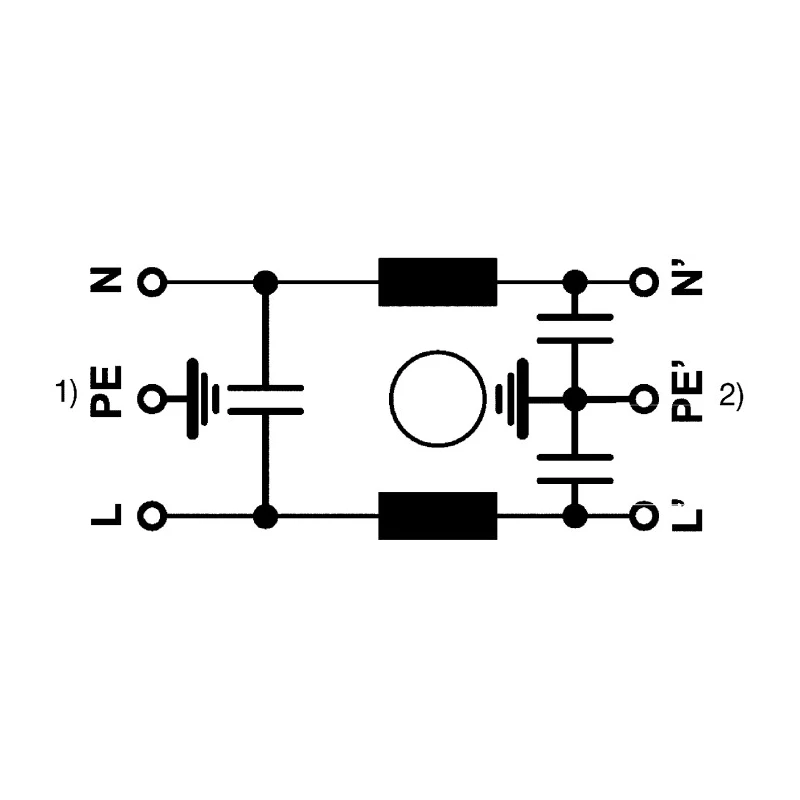

- Provides line filter functionality for noise reduction in electrical circuits.
Product Description
Schurter 5120.1007.0 is a high-performance panel mount IEC connector featuring a male C14 type suitable for AC power applications requiring 250V and 15A ratings. The connector incorporates a fully enclosed filter case offering superior line filter capabilities, which effectively reduces electrical noise and interference.
This model is designed with quick connect termination terminals sized at 6.3 x 0.8 mm, enabling fast and reliable installation on panels. Its compact dimensions (48.6 mm width, 24.6 mm height, and 54.5 mm depth) make it suitable for a variety of industrial and electronic equipment.
The operating temperature range from -25°C to 85°C ensures dependable performance in challenging environments, while the male connector gender aligns with standard IEC power connectors. Although the fuse drawer is excluded, the unit supports fuse sizes of 5 x 20 mm, making it compatible with common fuse sizes used in power protection.
This panel mount IEC connector is ideal for applications in industrial machinery, laboratory instruments, and commercial electronic devices requiring reliable power connection and noise filtering.
Rated for 15A current and 250V AC voltage for robust power delivery. Quick connect terminations provide convenience and reduce installation time. Compact, panel mount form factor for versatile equipment integration. Line filter design ensures high performance in electromagnetic noise reduction.
Stable operation across a wide temperature range from -25°C to 85°C. Compatible with 5 x 20 mm fuse size for added circuit protection. Male IEC C14 connector ensures industry-standard connectivity. Durable construction suitable for industrial and commercial use.
Explore more from Schurter's 5120 series to find complementary components and enhance your power connector setups. Browse our IEC Connector category at EnvMart for high-quality industrial connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 15 amperes and a voltage of 250 volts AC.
It features a male C14 IEC connector type, which is suitable for various industrial and electronic applications.
The compact dimensions are 48.6 mm in width, 24.6 mm in height, and 54.5 mm in depth.
It operates efficiently within a temperature range of -25°C to 85°C.
It has quick connect terminals measuring 6.3 x 0.8 mm for secure and efficient connections.
This model includes a line filter design that helps reduce electrical noise and interference in circuits.
No, the fuse drawer is sold separately, but the connector is compatible with 5 x 20 mm fuse sizes.
The termination type is quick connect, allowing for fast and reliable installation.
The maximum operating frequency is 60Hz.
The country of origin for this connector is India.
It is ideal for use in industrial machinery, laboratory instruments, and commercial electronic devices requiring reliable power connections.
The connector has male gender contacts, aligning with standard IEC power connectors.
