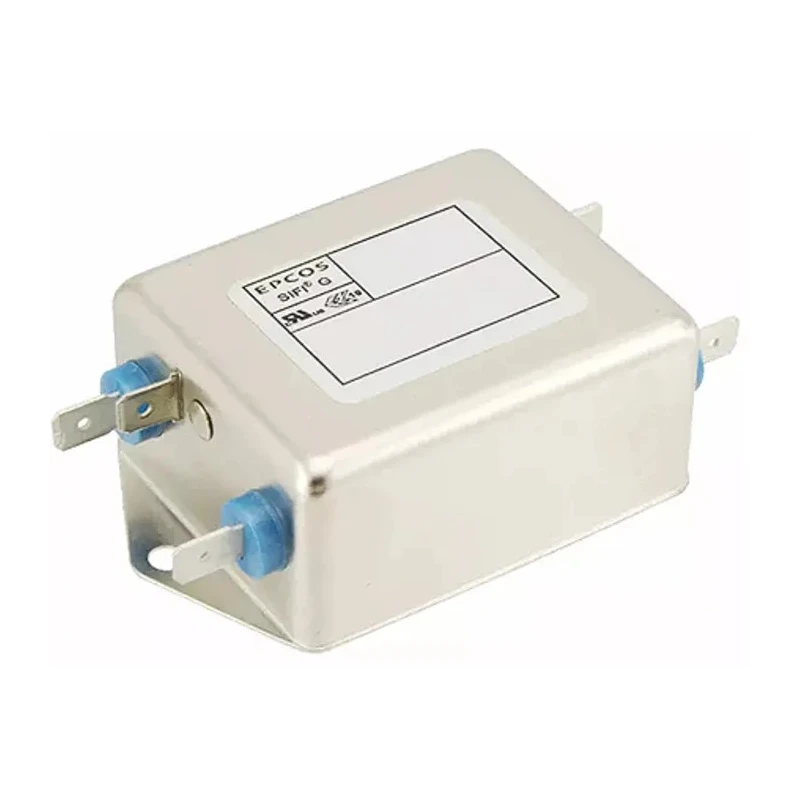

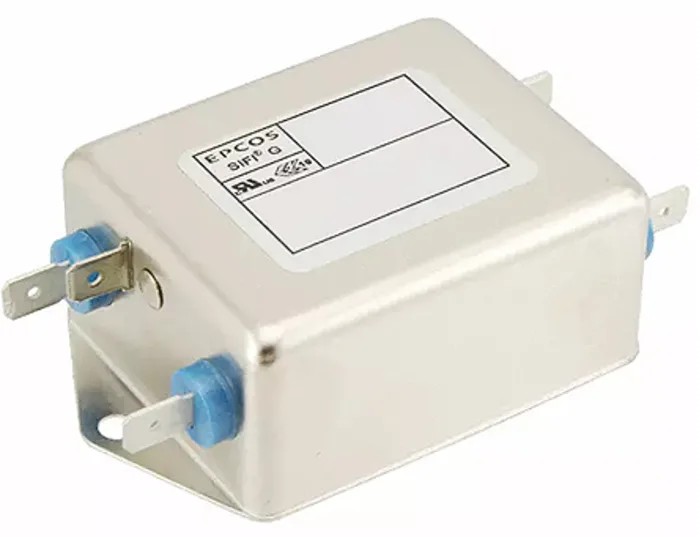

TDK Chassis Mount EMC Filter Single Phase 6 A 250 V AC/DC 50Hz, 60 Hz B84112G0000M060



Category EMC Filters Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	29mm
Length	63mm
Model	B84112G0000M060
Depth	51mm
Mount Type	Chassis Mount
Operating Frequency	50, 60Hz
Series	B84112G
Maximum Operating Temperature	100°C
Number Of Stages	1
Capacitance	2μF
Minimum Operating Temperature	-25°C
Maximum Current	6A
Number of Phases	1
Leakage Current	0mA
Maximum Voltage	250V ac/dc
Inductance	2mH
Standards/Approvals	UL1283
Termination Style	Lug

Key Features

Compact and easy to install chassis mount design with lug termination.
Constructed with two line filters housed within a metal case.
Incorporates SIFI-G technology for improved insertion loss performance.
Rated for a maximum current of 6 A and voltage of 250 V AC/DC.
Applications include industrial electronics, switch-mode power supplies, telecom and data systems.
Also suitable for DC applications and certain medical equipment versions.
Operational temperature range from -25°C to 100°C ensuring reliability in various environments.
Compact dimensions measuring 63 mm length, 51 mm depth, and 29 mm height.

Product Description

TDK's B84112G0000M060 model is a chassis mount EMC filter designed for single phase electrical systems. Rated for 6 amperes current and 250 volts AC/DC, it operates efficiently at frequencies of 50 and 60 Hz. The compact design facilitates easy installation and features lug termination style, ideal for industrial electronics and other demanding applications.

This filter consists of two integrated line filters enclosed in a robust metal case, employing SIFI-G technology to enhance insertion loss and noise suppression. With a capacitance of 2 μF and inductance of 2 mH, it ensures effective filtering performance while maintaining zero leakage current.

The device supports a wide operational temperature range from -25°C to 100°C which makes it suitable for use in various harsh environmental conditions. Dimensions of 63 mm length, 51 mm depth, and 29 mm height contribute to its ease of mounting in constrained electrical enclosures.

Applications span industrial electronics, switch-mode power supplies, telecommunication systems, data equipment, DC systems, and selected medical equipment models within the B84112G series. The product conforms to UL1283 certification standards, highlighting its high-quality electromagnetic interference filtering capabilities.

Manufactured in China, the TDK B84112G0000M060 EMC filter provides a reliable and durable solution for suppression of electromagnetic noise in single phase electrical circuits, supporting improved performance and compliance with emission standards.

Compact and easy to install chassis mount design with lug termination. Constructed with two line filters housed in a metal case. SIFI-G technology delivers enhanced insertion loss. Rated current of 6 A and voltage up to 250 V AC/DC.

Suitable for industrial electronics and switch-mode power supply applications. Works with telecom, data systems, and select medical equipment. Operational temperature range -25°C to 100°C. Compact dimensions enable easy enclosure integration.

UL1283 approved for electromagnetic interference filtering. Explore more high-quality EMC filter solutions and other electronic components at EnvMart for industrial, construction, telecom, and manufacturing applications.
