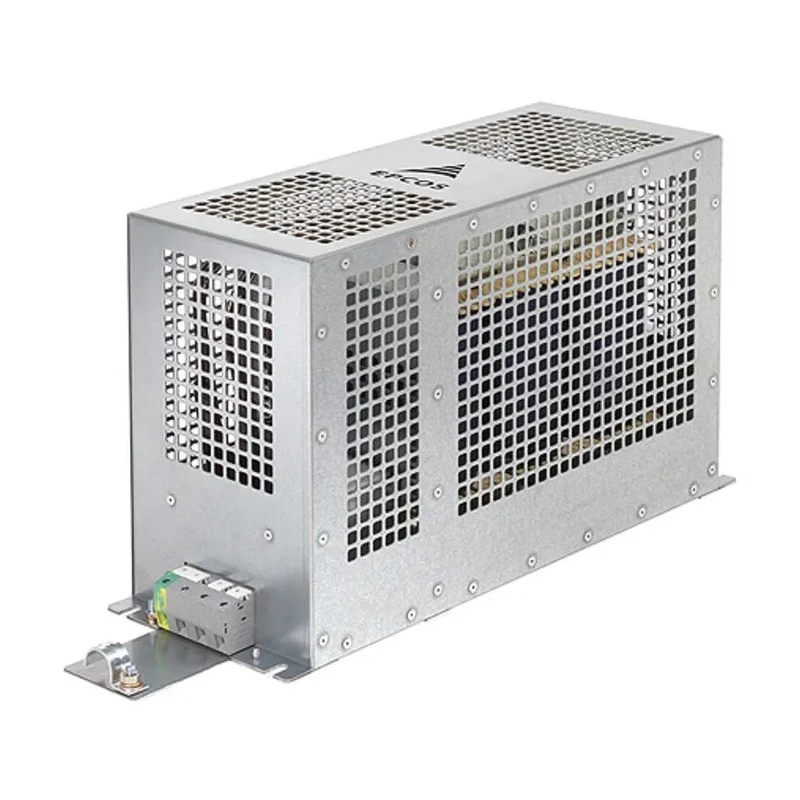

TDK Sine Wave Filter B84143V0006R127 520V AC 6A Chassis Mount Terminal Block B84143V0006R127

Free Delivery in India | Lowest Global Shipping Charges

TDK Sine Wave Filter B84143V0006R127 520V AC 6A Chassis Mount Terminal Block B84143V0006R127



Category EMC Filters Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	160mm
Length	335mm
Model	B84143V0006R127
Depth	120mm
Mount Type	Chassis Mount
Series	B84143V
Maximum Current	6A
Maximum Voltage	520V ac
Standards/Approvals	EN 60939, UL 1283, CSA 22.2 No.8
Termination Style	Terminal Block

Key Features

Constructed with 3-line sine wave EMC filters housed in a metal case.
Compact design suitable for easy chassis mounting installation.
Optimized for operation under full load and use with motor cables up to 1000 m.
Reduces motor noise and motor bearing currents.
Features low dv/dt values and reduced eddy current losses.
Protected to IP20 standard, maintenance free without forced ventilation.
Does not require DC link connection for operation.
Approved to EN 60939, UL 1283, and CSA 22.2 No.8 standards.

Product Description

TDK B84143V0006R127 Sine Wave Filter is a high-performance EMC filter designed to mitigate electromagnetic interference in power electronics and frequency converters. This series features a 520V AC maximum voltage and is rated for a 6A maximum current, ensuring reliable operation in demanding industrial applications.

The filter consists of 3-line sine wave EMC filters enclosed in a robust metal housing, engineered for chassis mounting with terminal block termination style. Its compact 335mm length, 160mm height, and 120mm depth provide easy installation within control cabinets and converter systems.

These filters are optimized for full load operation and support use with motor cables up to 1000 meters, effectively reducing motor bearing current and noise. The design delivers low dv/dt values and reduced eddy current losses, contributing to enhanced motor and system longevity.

Offering IP20 protection, the filter is maintenance free and requires no integrated forced ventilation or DC link connection, simplifying system design. It holds certifications including EN 60939, UL 1283, and CSA 22.2 No.8, affirming its compliance with international safety and performance standards.

Typical applications include frequency converters for motor drives in HVAC systems, traction systems, conveyor systems, pumps, and elevators across industrial, commercial, and manufacturing sectors.

Constructed with 3-line sine wave EMC filters housed in a metal case. Compact chassis mount design with terminal block termination. Optimized for use with long motor cables up to 1000 meters. Reduces motor bearing current and motor noise.

Low dv/dt values with reduced eddy current losses. IP20 protected, maintenance free, no forced ventilation. No DC link connection required. Certified to EN 60939, UL 1283, and CSA 22.2 No.8 standards. Explore our broad range of EMC Filters and sine wave filters at EnvMart for your industrial electronic component needs.
