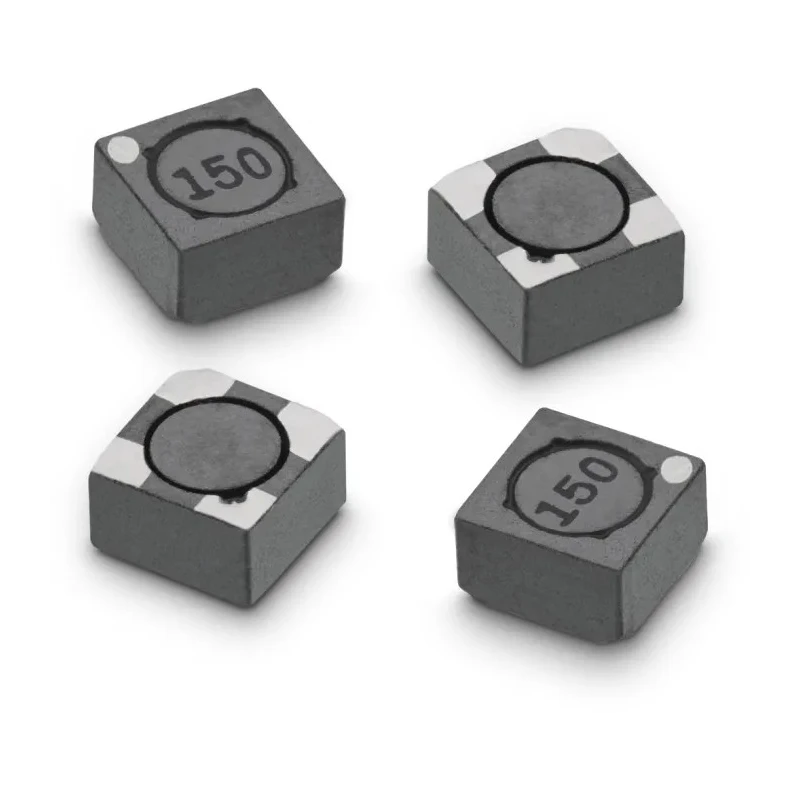

Wurth Elektronik Coupled Inductor Iron Powder Core 33μH 700mA 250V WE-DPC HV 7448841330

Wurth Elektronik 7448841330 is a high quality coupled inductor featuring an iron powder core with a nominal inductance of 33μH. It is designed for use in high density isolated converter applications such as flyback converters, offering isolation up to 1.5kV. The inductor has a magnetic shield to minimize interference and provides two identical windings in a 1:1 transformer configuration.

The device supports a wide operating temperature range from -40°C to +125°C, ensuring reliable performance under varying environmental conditions. Its compact size with dimensions 5.2mm length, 5.2mm depth, and 3.1mm height allows integration into space-sensitive electronic assemblies.

This coupled inductor operates at a current rating of 700mA and maximum voltage of 250V, making it suitable for various DC-DC converter topologies including buck, boost, sepice, zeta, and CUK converters. It can also be used as a single inductor through series or parallel connection of the windings.

Manufactured with precision iron powder core materials in China, this component meets robust industrial and electronic system requirements but does not conform to automotive standards. Its small form factor and effective shielding make it ideal for advanced power electronics modules in industrial, communication, and consumer electronics applications.

Features a magnetic shield and 1:1 transformer winding configuration. Compact dimensions of 5.2mm x 5.2mm x 3.1mm for tight spaces. Wide operating temperature range from -40°C to +125°C. High voltage isolation up to 1.5kV suitable for flyback converters.

Supports multiple converter types including buck, boost, and CUK. Can be used as a single inductor via series/parallel connections. Explore the extensive selection of Wurth Elektronik inductors and components at EnvMart for your electronic design needs.
