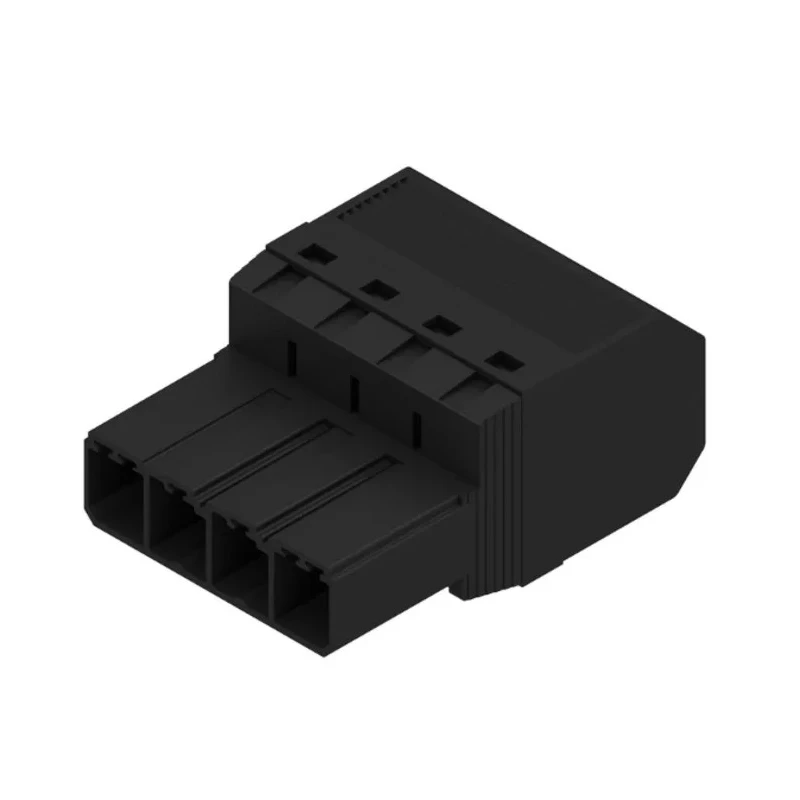

Weidmüller SVF Series PCB Connector, 4 Contacts, 7.62 mm Pitch, 1 Row, Polyamide, Male, 1060850000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 600V |
| Brand | Weidmüller |
| Colour | Black |
| Current | 36A |
| Depth | 44.7mm |
| Width | 31.36mm |
| Housing Material | Polyamide Powder-Filled with Glass Particles |
| Series | SVF |
| Voltage Rating | 1000 V |
| Number of Rows | 1 |
| Pitch | 7.62mm |
| Standards/Approvals | CSA, cURus |
| Number of Contacts | 4 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 2mm² |
| Maximum Wire Size mm² | 10mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
Key Features
- Robust PCB connector with 4 contacts for reliable connectivity.
- Features a 7.62 mm pitch, suitable for automation and control panels.
- Supports wire sizes from 24 to 10 AWG, accommodating both solid and stranded types.
- Polyamide housing powder-filled with glass particles for enhanced durability.
- Rated up to 57A for demanding high-current applications.
- Touch-safe design and PUSH IN connection for quick, safe installation.
- Single row format for space-saving on PCBs.
- Operates up to 1000V, ideal for power distribution and industrial setups.
Product Description
Weidmüller 1060850000 SVF Series PCB Connector is a high-quality pluggable terminal block designed for modern automation, industrial, and electrical applications. Featuring a compact 1-row format with 4 contacts and a 7.62 mm pitch, it provides robust connectivity for PCB mounting, supporting versatile wire sizes from 24 to 10 AWG. The connector's polyamide housing, powder-filled with glass particles, ensures durability and insulation in demanding environments.
This connector leverages PUSH IN connection technology, enabling quick and secure assembly. With a current rating of up to 57A and operational voltage capabilities up to 1000V, it suits power distribution, drive technologies, and machinery control panels. Its touch-safe design protects against reverse voltages, making it compliant with IEC and UL safety standards.
Reliable pluggable terminal block for PCB mounting. Four contacts with 7.62 mm pitch; single row. Accommodates solid and stranded wires, 24 - 10 AWG. Polyamide glass-filled housing for increased mechanical strength. Push-in technology for simplified and tool-free wire connection.
Handles high-current applications (up to 57A), and operates up to 1000V. Touch-safe design enhances both safety and usability. Conforms to CSA and cURus standards.
Applications include automation systems, industrial control panels, electrical machinery, and equipment installations. The connector's design allows for efficient PCB layouts and flexible wire management, recommended for use in mechanical and electrical installations, as well as power distribution settings.
Installation requirements: Designed for PCBs with a maximum wall thickness of 2 mm. Clamping range accommodates wire sizes from 0.5 to 10 mm². Its compatibility with both stranded and solid wire types supports a variety of industrial needs.
Explore more PCB Connectors and automation components in the Electronics Components category. Discover the Weidmüller SVF Series for reliable terminal block solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of up to 36A, making it suitable for various high-current applications.
It operates with a voltage rating of up to 1000V, which is ideal for power distribution and industrial setups.
The connector supports wire sizes from 24 AWG to 10 AWG, accommodating both solid and stranded wire types.
The connector has a depth of 44.7mm and a width of 31.36mm, making it compact for PCB mounting.
The contacts are spaced at a pitch of 7.62mm, which allows for efficient PCB layouts.
The housing is made from polyamide powder-filled with glass particles, enhancing its durability and insulation properties.
This model features 4 contacts, providing reliable connectivity for various applications.
It is designed for PCBs with a maximum wall thickness of 2mm, ensuring compatibility with standard PCB designs.
The connector conforms to CSA and cURus standards, ensuring it meets safety requirements for electrical applications.
It utilizes PUSH IN connection technology, allowing for quick and tool-free wire connections.
It is recommended for use in automation systems, industrial control panels, and electrical machinery installations.
This model is available in black, which is standard for many industrial connectors.
