Omron 10 Way 24V DC DIN Rail Relay Socket for Use with G7SA Series Relay P7SA

Free Delivery in India | Lowest Global Shipping Charges

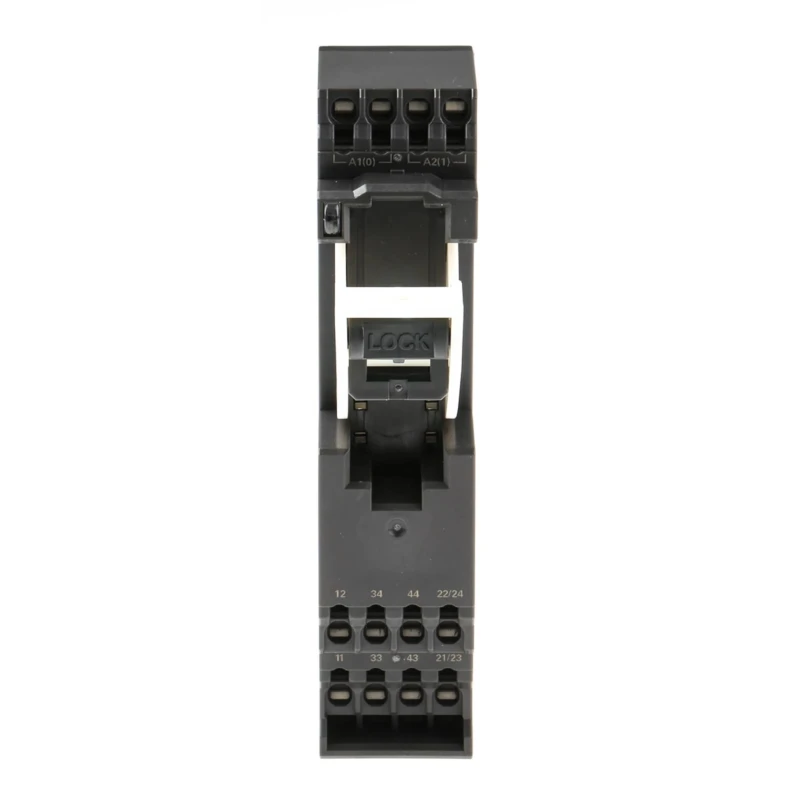

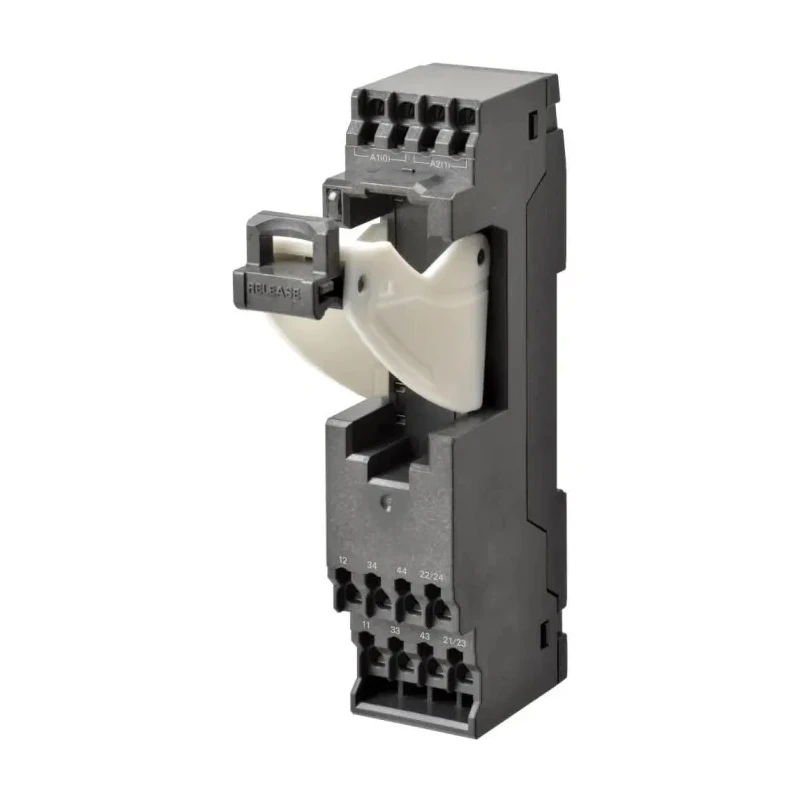

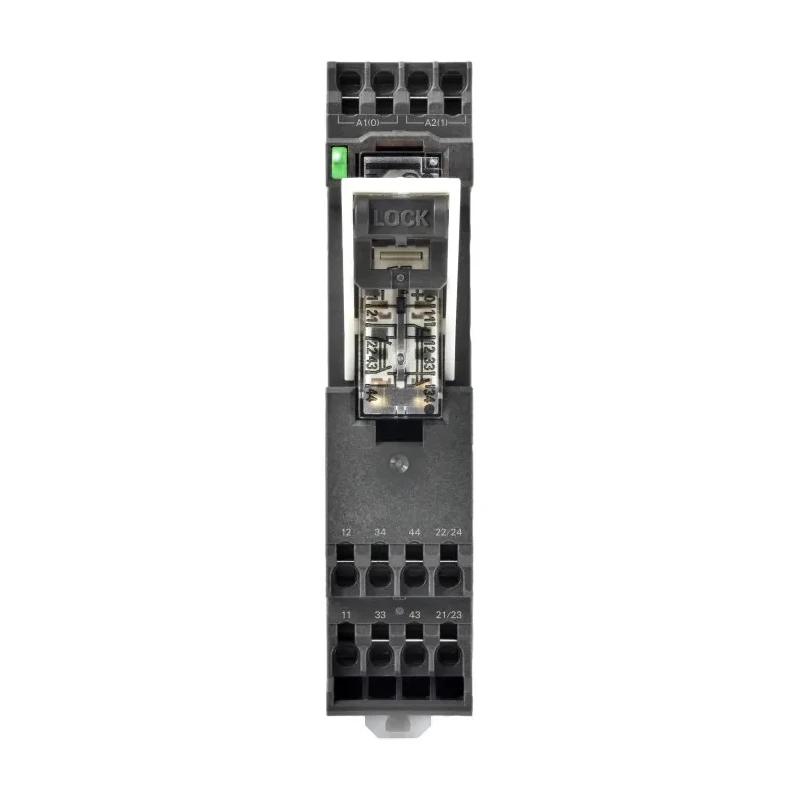

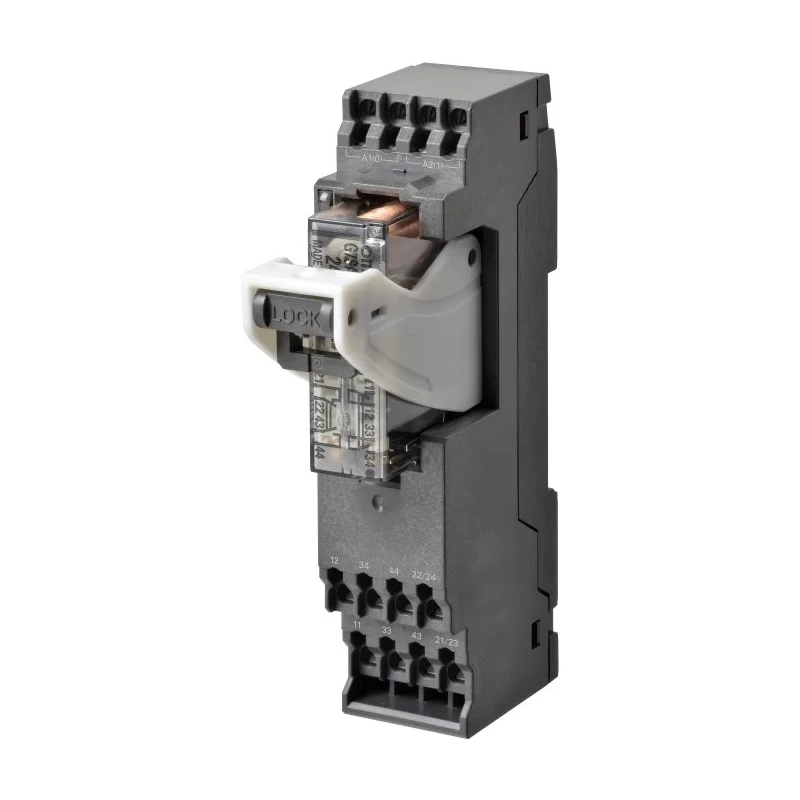

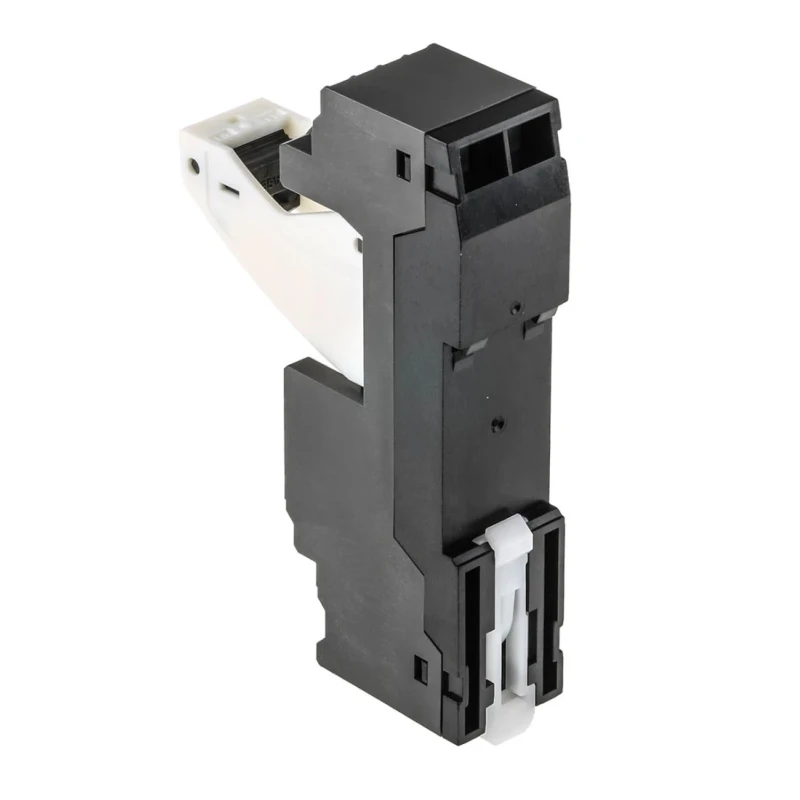

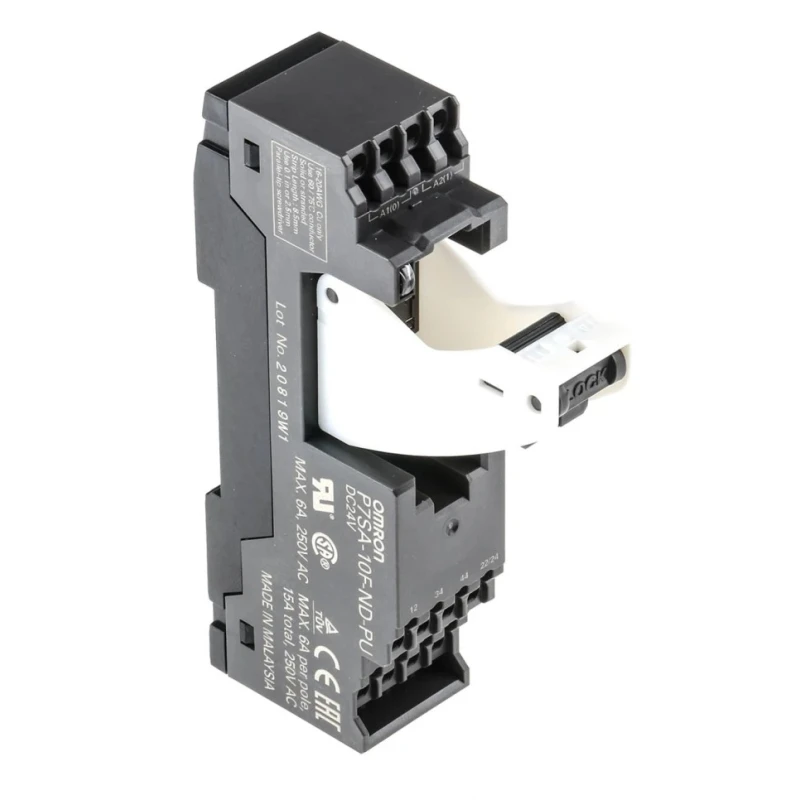

Omron 10 Way 24V DC DIN Rail Relay Socket for Use with G7SA Series Relay P7SA

Name: Omron 10 Way 24V DC DIN Rail Relay Socket for Use with G7SA Series Relay P7SA
Brand: Omron
SKU: 142627
Price: 48.01 USD
Availability: InStock



Category Relay Socket Brand Omron Condition New

Specifications

Country of Origin	India
Voltage	24V dc
Brand	Omron
Current	6A
Model	P7SA
Mount Type	DIN Rail
Series	P7SA
Terminal type	Push-in
For Use With	G7SA Series Relay
Standards/Approvals	RoHS
Number of Contacts	10
Omron G7SA 10 Way 24V dc DIN Rail Relay Socket, for use with G7SA SeriesBrand	Omron

Key Features

Equipped with push-in terminal type for quick and secure wiring connection.
Compact width of 22.5mm maximizes DIN rail space efficiency.
Suitable for handling a current of up to 6A, ensuring robust electrical performance.
Includes a built-in LED indicator for clear operational status monitoring.
Designed for mounting on DIN rails, facilitating easy and fast installations.
RoHS compliant, ensuring environmental safety and regulatory compliance.
Operates within a temperature range from -20°C to +70°C for factory environments.
Minimum insulation resistance of 1000mΩ provides protection against leakage currents and electric shocks.

Product Description

Omron P7SA 10 Way DIN Rail Relay Socket is a high-quality relay socket specifically designed to accommodate G7SA Series Relay. It supports a stable voltage of 24V DC and is rated for a current of 6A, ensuring dependable performance in various industrial environments.

The relay socket employs push-in terminal technology, allowing quick and reliable circuit wiring using solid, stranded wires, or ferrules. This feature simplifies installation and maintenance tasks, especially when working on standard DIN rails.

Compactly designed with a width of only 22.5mm, this socket optimizes panel space, allowing for additional control devices such as contactors and switches. It comes with a handy lever that holds and releases the relay effortlessly, facilitating smooth system maintenance.

Designed to withstand harsh factory conditions, the product operates reliably in temperatures ranging from -20°C to +70°C and offers a minimum insulation resistance of 1000mΩ to protect against electrical shocks and leakage.

This relay socket comes with a built-in LED indicator that provides convenient status checks during operation. The socket is RoHS compliant, ensuring that it meets environmental protection standards.

Push-in terminal type for easy wiring. Compact 22.5mm width for space efficiency. Supports 6A current with 24V DC voltage. Built-in LED indicator for status monitoring. DIN rail mounting for quick installation. Operating temperature range of -20°C to +70°C.

High insulation resistance of 1000mΩ for safety. Locking lever mechanism for easy relay handling. Meets RoHS environmental compliance standards. Suitable for industrial automation and energy sectors.

This Omron P7SA relay socket is ideal for applications in industrial automation, manufacturing sectors, energy industries, and packaging lines. It enables effective and safe electrical connections within control panels, promoting system reliability and ease of maintenance.

Explore more products in the Relay Sockets category to meet various automation and electrical control requirements with confidence.
