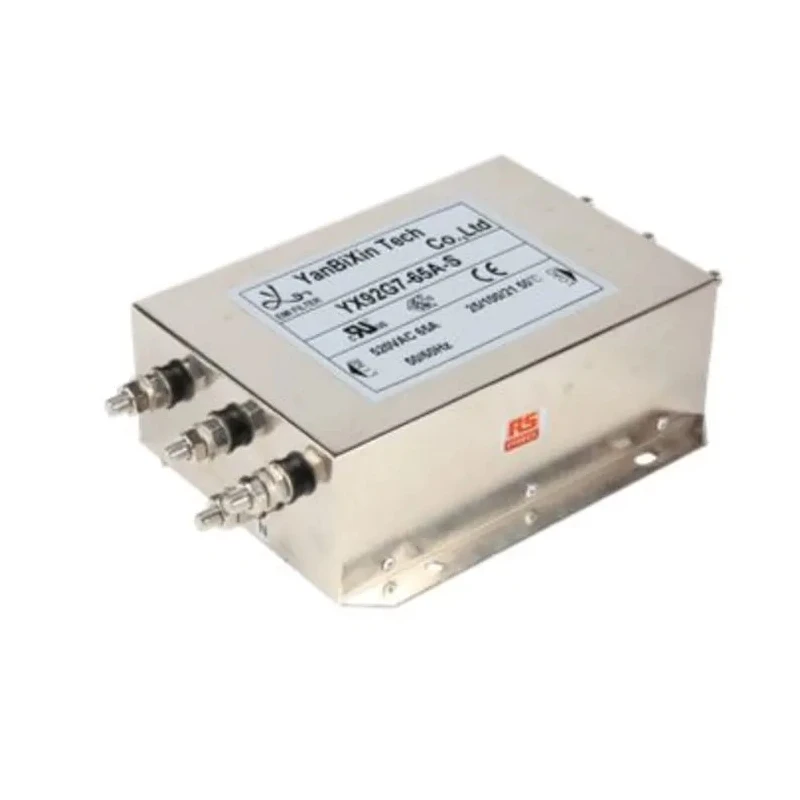

RS PRO Chassis Mount Power Line Filter, Screw Terminals, 65A, 520V AC, 50/60Hz, 3 Phase, 237-8777

RS PRO 237-8777 Power Line Filter is an industrial-grade chassis mount device designed to protect electrical equipment from harmful radio frequency interference (RFI) and transient voltage spikes. With a maximum current rating of 65A and voltage up to 520V AC, this filter reliably operates in demanding environments across 3 phase systems. It incorporates screw terminal connectivity for robust mounting and easy installation.

The filter offers two-stage EMI suppression, ideal for industrial, laboratory, medical, and commercial applications where equipment needs shielding from unpredictable electromagnetic environments.

Featuring 2.2μF capacitance and 0.3mH inductance, it efficiently reduces conducted frequencies between devices and power lines. Leakage current protection is set at 10.4mA, ensuring operational safety without compromising performance.

The device provides wide temperature resilience, operating from -25°C up to 100°C, suitable for harsh and variable sites. Its construction follows certified standards: CSA C22.2 No.8, EN 60939, IEC, and UL1283, supporting international safety compliance.

Dimensions are 200mm (length), 168mm (depth), and 69.5mm (height), facilitating integration into control panels and machinery enclosures. A resistance rating of 1mΩ improves current flow while minimizing voltage drop. Power line filters such as this RS PRO unit are critical for ensuring stable, interference-free operation in automation, HVAC, manufacturing, and sensitive laboratory systems.

This model is suitable for equipment such as CNC machines, industrial washers, HVAC systems, medical imaging devices, and other machinery where clean power supply is essential to prolong service life.

RS PRO products are recognised for rigorous quality and reliable engineering, validated against worldwide standards. For more Power Line Filters and EMI protection solutions, continue exploring the RS PRO range on EnvMart.
