Wurth Elektronik WR-FPC 0.5 mm Pitch 22 Way Horizontal Female FPC Connector, Top Contact 687122183622

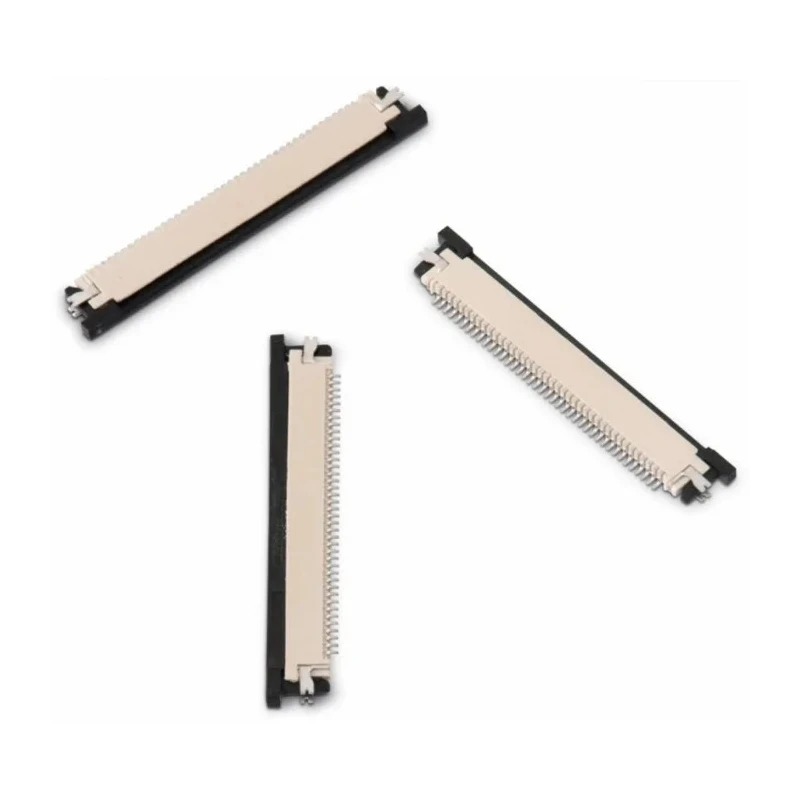

Wurth Elektronik 687122183622 is a 0.5 mm pitch 22 Way Horizontal Female FPC Connector designed for surface mounting with a top contact termination. It features a compact low profile design with a height of just 1.2 mm, making it ideal for high density PCB applications such as displays, touch panels, and screens. The connector offers a ZIF (Zero Insertion Force) flip lock actuator that enables easy insertion of flexible printed circuits while ensuring secure mechanical and electrical connection once closed.

The contact material is phosphor bronze plated with tin over nickel, which provides excellent conductivity and corrosion resistance. The connector supports a current of 400mA and an AC voltage rating of 50V, suitable for a wide range of electronic components and systems. Its housing is crafted from durable liquid crystal polymer, ensuring mechanical stability and performance across an operating temperature range of -25°C to 85°C.

This Wurth Elektronik WR-FPC series connector is horizontally oriented with a single row of 22 contacts. The locking mechanism ensures reliable retention and durability in demanding environments. Additionally, brass solder tabs on either side reinforce the mechanical fixation to the PCB, improving reliability in vibration-prone and industrial applications.

FPC connectors like this are commonly used in consumer electronics including computers, tablets, mobile phones, cameras, as well as in business, industrial, and medical equipment requiring compact and high density interconnections.

Low profile design suitable for space saving applications. ZIF flip lock actuator for effortless insertion and firm retention of FPC cables. High reliability through solder tabs securing the connector to the PCB. Top contact termination for flexible design integration options.

Stable operation within -25°C to 85°C temperature range. Phosphor bronze contacts with tin over nickel plating for optimal conductivity. Horizontal orientation with 22 contact positions. Supports 50V AC and 400mA current for typical electronic applications.

Housing made of liquid crystal polymer ensuring mechanical robustness. Explore EnvMart for more Wurth Elektronik FPC Connectors and high-quality electronic components designed to meet modern industrial and manufacturing requirements.
