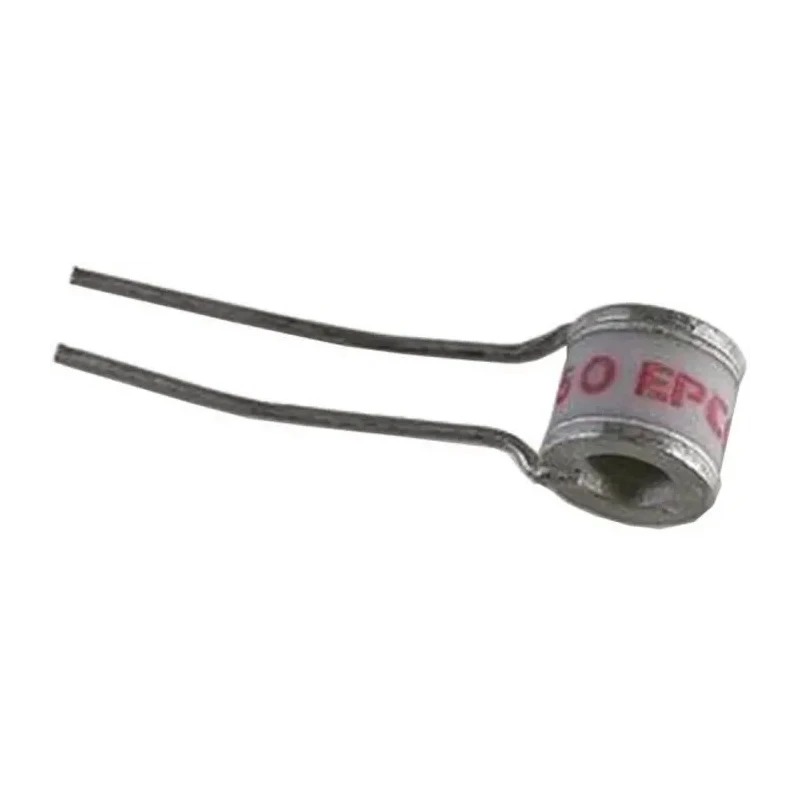

TDK Gas Discharge Tube EHV 300 V dc 5 kA Through Hole 2 Electrode Arrester B88069X4180B502

Free Delivery in India | Lowest Global Shipping Charges

TDK Gas Discharge Tube EHV 300 V dc 5 kA Through Hole 2 Electrode Arrester B88069X4180B502



Category Gas Discharge Tube Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	6.7mm
Length	4.7mm
Model	B88069X4180B502
Mount Type	Through Hole
Series	EHV
Maximum Operating Temperature	90°C
Capacitance	1pF
Minimum Operating Temperature	-40°C
Suppressor Type	2 Electrode Arrester
Maximum Voltage	300V dc
Standards/Approvals	ITU-T Rec. K.12, DIN 57845/VDE0845, IEC 60068-1
Maximum Surge Current	5kA
DC Spark Over Voltage	300V dc
Impulse Spark Over Voltage	550V

Key Features

This miniature gas-filled tube has a very small size enabling compact design integration.
The device features very fast response time to transient voltage spikes.
It exhibits stable performance throughout its lifespan ensuring reliability.
Extremely low capacitance of 1 pF reduces influence on circuit signals.
High insulation resistance minimizes leakage current during operation.
Designed to operate within a temperature range of -40°C to 90°C.
Complies with ITU-T Rec. K.12, DIN 57845/VDE0845, and IEC 60068-1 standards.

Product Description

TDK B88069X4180B502 is a Gas Discharge Tube from the EHV series, specifically engineered for surge protection in electronic circuits. It is rated for a maximum surge current of 5 kA at a DC spark over voltage of 300 V. The through hole mount type with two electrodes ensures secure and reliable installation on printed circuit boards.

This gas-filled miniature tube is noted for its very small form factor, allowing usage in compact electronic designs where space saving is critical. It offers a very fast response time to electrical surges, protecting sensitive components effectively.

The product maintains stable and dependable performance over its operational life, with an extremely low capacitance of 1 pF, which is beneficial for high-frequency or sensitive applications. Its high insulation resistance further helps in preventing unwanted current leakage, ensuring long-term safety.

Operating temperature ranges from -40°C to 90°C, making it suitable for diverse environmental conditions encountered in industrial, laboratory, and commercial electronic applications.

It conforms to international standards including ITU-T Rec. K.12, DIN 57845/VDE0845, and IEC 60068-1, assuring quality and reliability.

Measuring 4.7 mm in length and 6.7 mm in height, this compact arrester tube enables efficient PCB layout and mounting flexibility. It is a valuable component in electronic systems requiring surge protection against transient voltage spikes that can damage sensitive equipment.

This miniature gas-filled tube has a very small size enabling compact design integration. The device features very fast response time to transient voltage spikes. It exhibits stable performance throughout its lifespan ensuring reliability.

Extremely low capacitance of 1 pF reduces influence on circuit signals. High insulation resistance minimizes leakage current during operation. Designed to operate within a temperature range of -40°C to 90°C. Complies with ITU-T Rec. K.12, DIN 57845/VDE0845, and IEC 60068-1 standards.

Dimensions are 4.7 mm length and 6.7 mm height for efficient PCB mounting. Ideal for use in industrial electronics, power supplies, telecommunications equipment, laboratory instrumentation, and protective circuitry designs.
