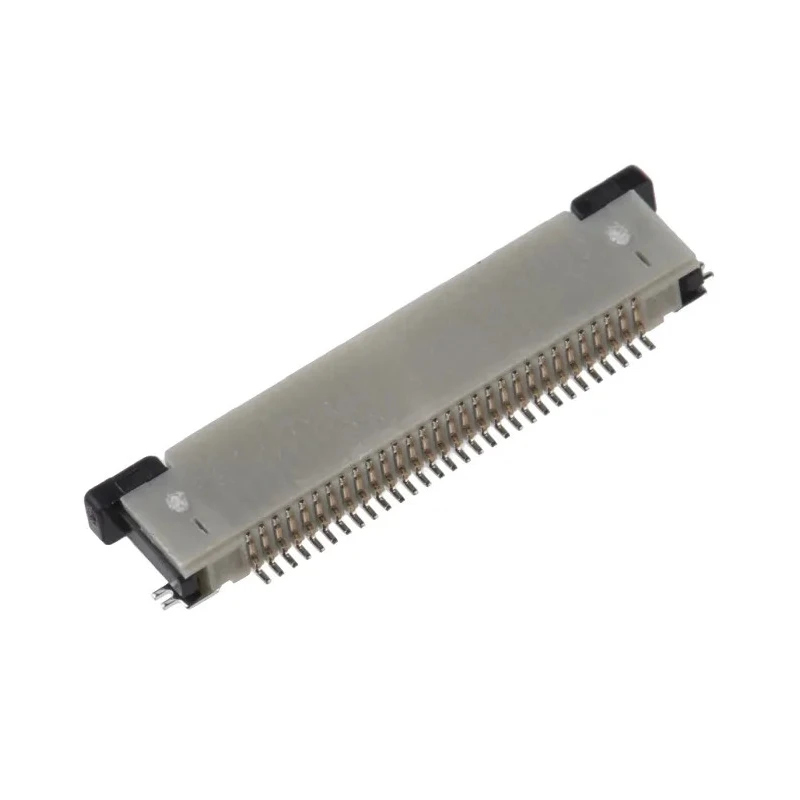

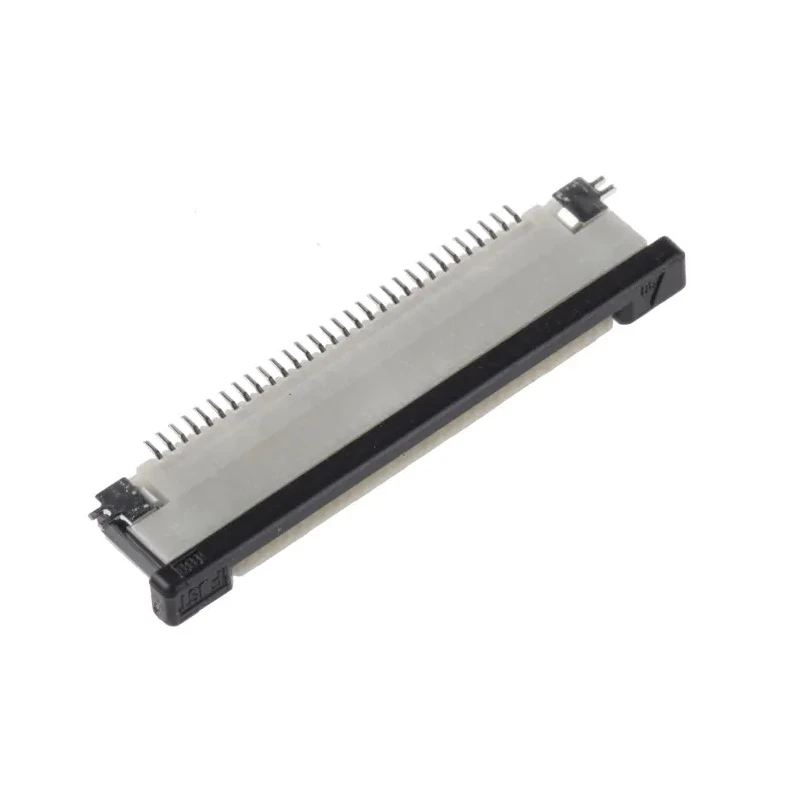

JST FLZ 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder 30FLZ-SM2-TB(LF)(SN)(P)

Free Delivery in India | Lowest Global Shipping Charges

JST FLZ 0.5 mm Pitch 30 Way Right Angle Female FPC Connector, Solder 30FLZ-SM2-TB(LF)(SN)(P)



Category FPC Connectors Brand JST Condition New

Specifications

Country of Origin	Japan
Voltage	50, 50V ac
Brand	JST
Orientation	Right Angle
Current	500mA
Model	30FLZ-SM2-TB(LF)(SN)(P)
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Phosphor Bronze
Series	FLZ
Termination Type	Solder
Maximum Operating Temperature	85°C
Sub Type	Easy-On FFC/FPC Connector
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	0.5mm
Contact Plating	Tin
Number of Contacts	30
Contact Gender	Female
Connector Gender	Female
Insertion Force	ZIF
Contact Position	Top

Key Features

The connector uses phosphor bronze contacts plated with tin for reliable electrical connection.
Zero insertion force (ZIF) mechanism enhances connector lifespan and wear resistance.
Compact, space-saving design with a height of 2.00 mm above the PCB allows tight interconnections.
Compatible with reflow soldering due to heat-resistant polyamide 6T housing material.
Supports operating voltage of 50V AC and current rating of 500mA for low power applications.
The connector has a locking mechanism and a single contact row for secure mating.
Rated for a temperature range from -25°C to 85°C, suitable for various industrial environments.
Designed for easy inspection with inline surface mount tails and top contact position.

Product Description

JST 30FLZ-SM2-TB(LF)(SN)(P) is a high quality FPC connector designed for electronic and industrial applications requiring compact space saving.

This 30 contact, 0.5 mm pitch female right angle connector uses an Easy-On FFC/FPC design with a zero insertion force (ZIF) mechanism, improving the durability and ease of use in PCB assembly.

The connector’s contacts are made from phosphor bronze and plated with tin, ensuring reliable conductivity and resistance to corrosion.

The polyamide 6T housing provides excellent heat resistance, enabling seamless SMT reflow soldering process compatibility. The connector’s low profile, just 2 mm above the PCB, allows for interconnections in tight spaces.

Designed with a locking mechanism and a single row of contacts, it offers mechanical security and consistent electrical performance. This connector supports an operating voltage of 50V AC and a continuous current of 500mA, making it suitable for low power signal transmission.

Operating temperature ranges from -25°C to 85°C, enabling robust performance in harsh industrial, manufacturing, laboratory, and electronic assembly environments. Manufactured in Japan, the product meets stringent quality standards.

The compact space saving design enables efficient PCB layout. Zero insertion force mechanism reduces wear and extends lifecycle. Reflow solder compatible due to heat resistant plastic housing. Surface mount tails allow for easy visual inspection during PCB assembly.

Available in right angle female configuration for versatile board designs. Secure locking mechanism ensures reliable mating retention. Phosphor bronze contacts provide good conductivity and mechanical strength. Supports low voltage and current suitable for data and signal connectors.

Robust temperature rating for industrial applications.

JST FPC Connectors like this 30FLZ-SM2-TB(LF)(SN)(P) are widely used in electronics manufacturing, industrial control systems, laboratory equipment, consumer electronics, and automotive applications.

Explore more electronic connectors and components within the EnvMart industrial catalog for reliable and precise connector solutions.
