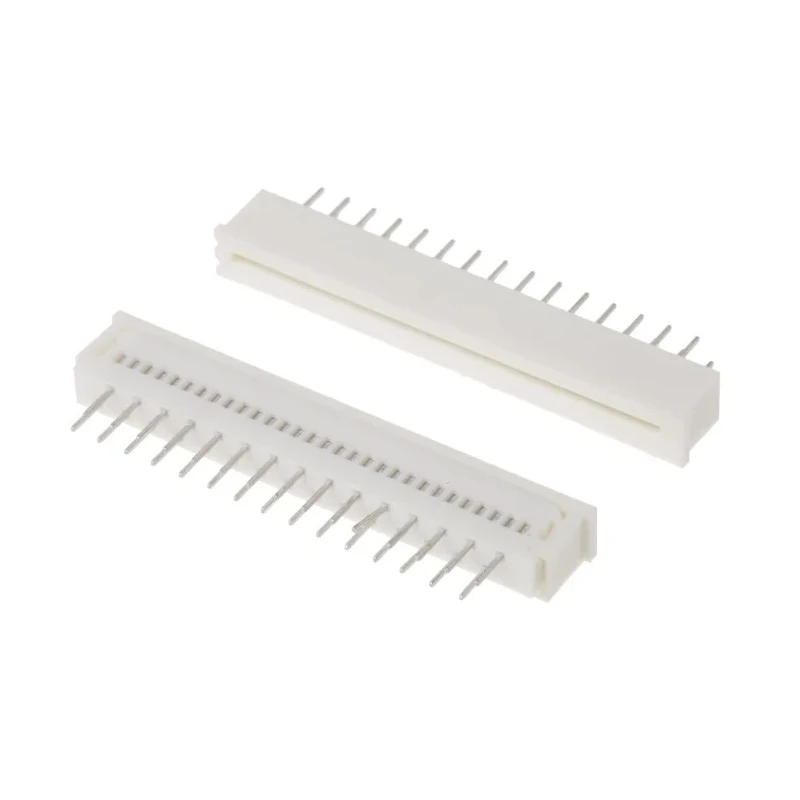

Molex 1.25 mm Pitch 30 Way Straight Female FPC Connector, Solder Termination, 200V, ZIF, Through Hole Mount 39-53-2305
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 200V |
| Brand | Molex |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polyethylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | 5597 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
Key Features
- This connector features 30 contacts made of phosphor bronze for reliable connectivity.
- Designed with a 1.25 mm pitch providing space-saving and precise connections.
- The straight orientation with a locking mechanism ensures secure and stable connection.
- Termination type is solder with a Zero Insertion Force (ZIF) actuator to reduce wear during cycles.
- Operating temperature range from -20°C to 80°C allows use in varied environments.
- Contact plating of tin over nickel enhances corrosion resistance and conductivity.
- Housing is made from durable polyethylene terephthalate material.
- Ideal for electronic automotive and tight packaging applications requiring secure FPC connections.
Product Description
Molex 39-53-2305 is a 1.25 mm pitch Zero Insertion Force (ZIF) PCB through-hole mount female FPC connector featuring 30 contacts. This straight orientation connector includes a slide type actuator that ensures an easy, secure engagement with the flexible printed circuit, minimizing mechanical wear during repeated insertions.
The connector utilizes phosphor bronze contacts plated with tin over nickel, providing excellent conducting properties along with robust corrosion resistance. Its polyethylene terephthalate housing offers durability and reliability within the operating temperature range of -20°C to 80°C.
Designed specifically for compact electronic and automotive assemblies, this connector supports a voltage rating of up to 200V and a current rating of 1A. Its 1.25 mm pitch allows for space-efficient circuit board layouts while maintaining mechanical stability through its built-in locking mechanism and staggered solder tails.
This model is ideally suited for applications requiring reliable, secure connections with flexible printed circuits and flat flexible cables in constrained spaces. The through-hole mounting facilitates robust mechanical integration on PCBs.
Features a slide actuator for Zero Insertion Force, reducing connector wear. Compact 1.25 mm pitch to save PCB space in tight packaging. Phosphor bronze contacts with tin over nickel plating for conductivity and resistance.
Through-hole mount style with staggered solder tails for secure PCB attachment. Operating temperature range suitable for automotive and industrial uses. Locking mechanism to secure flexible printed circuit during operation.
Polyethylene terephthalate housing for enhanced durability. Currents rated up to 1A and voltage up to 200V for electronic systems.
This connector belongs to the Molex 5597 series, known for durable and reliable PCB-to-FPC connection solutions used extensively in industrial, automotive, and electronic manufacturing sectors. EnvMart offers this high-quality component ensuring compliance with manufacturing requirements for precision and quality.
Explore more products in our FPC Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is up to 200V.
This connector has a current rating of 1A.
The operating temperature range is from -20°C to 80°C.
It features 30 contacts made of phosphor bronze.
This model uses solder termination with a Zero Insertion Force (ZIF) actuator.
The housing is made from polyethylene terephthalate material.
The pitch size of this connector is 1.25 mm.
This connector supports through-hole mounting.
The orientation of this model is straight.
The contacts are plated with tin over nickel for enhanced conductivity and corrosion resistance.
This model belongs to the Molex 5597 series.
It is designed for compact electronic and automotive assemblies requiring secure FPC connections.
