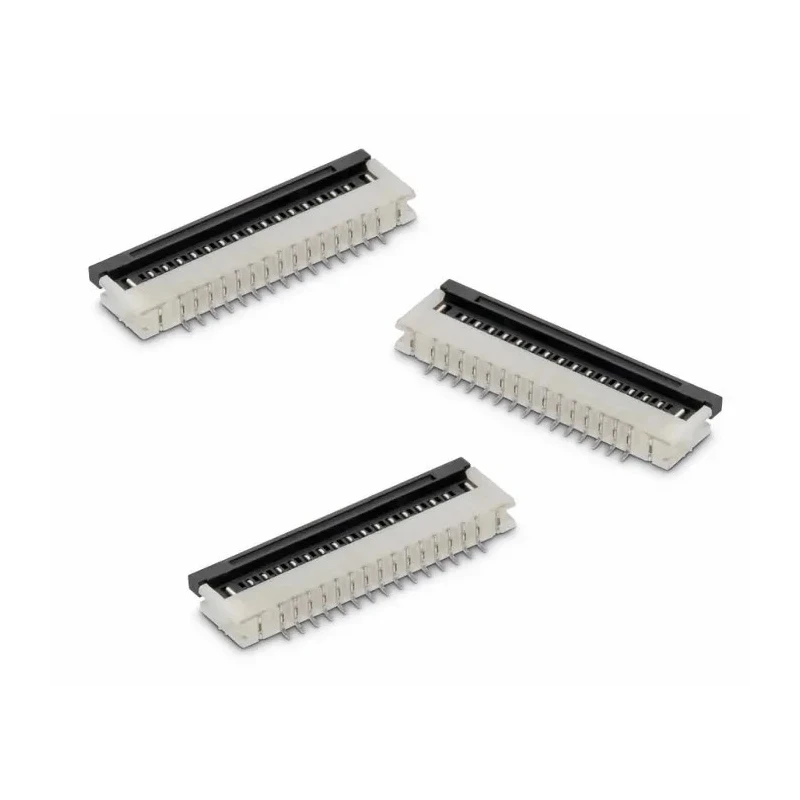

Wurth Elektronik WR-FPC 1 mm Pitch 22 Way Horizontal Female FPC Connector Solder 686122148922

Wurth Elektronik 686122148922 is a 1 mm pitch, 22 way horizontal female FPC connector designed for surface mounting solder applications. This connector utilizes phosphor bronze contacts with tin over nickel plating to ensure excellent electrical performance and mechanical durability.

The WR-FPC series features a low profile, lightweight design with a hinged flip-lock actuator providing Zero Insertion Force (ZIF) operation. This actuator secures the flexible printed circuit (FPC) firmly, guaranteeing reliable connectivity in miniature electronic assemblies.

This connector supports up to 1A current and operates at 100V AC, with a robust temperature range of -40°C to 105°C. The polyamide housing offers mechanical protection suitable for intensive use in industrial and commercial electronic devices.

Its bottom contact position and horizontal orientation optimize PCB layout for densely packed assemblies. The solder retention feature stabilizes the connector during wave or hand soldering, enhancing assembly reliability.

Common application scenarios include small display and keyboard connections where compact, secure wiring is essential. The connector's design eliminates the need for a mating connector, allowing direct cable insertion for cost-effective wiring.

This product is made in China and does not claim any specific certifications or approvals. The connector has 22 contacts spaced at 1 mm pitch suitable for fine-pitch applications. Phosphor bronze contact material with tin over nickel plating provides durability and conductivity.

Zero Insertion Force mechanism with hinged flip-lock actuator increases connection reliability. Surface mount solder termination type with solder retention enhances PCB assembly. Voltage rating of 100V AC and current rating of 1A supports typical low power applications.

Operating temperature range from -40°C to 105°C allows use in diverse environments. Polyamide housing material delivers mechanical strength. Horizontal orientation and bottom contact positioning are optimized for space saving on PCB.

No special standards or approvals conveyed with this product. Manufactured in China as the country of origin. Explore more Wurth Elektronik connectors and related FPC connector solutions in the EnvMart catalog for your electronic and industrial projects.
