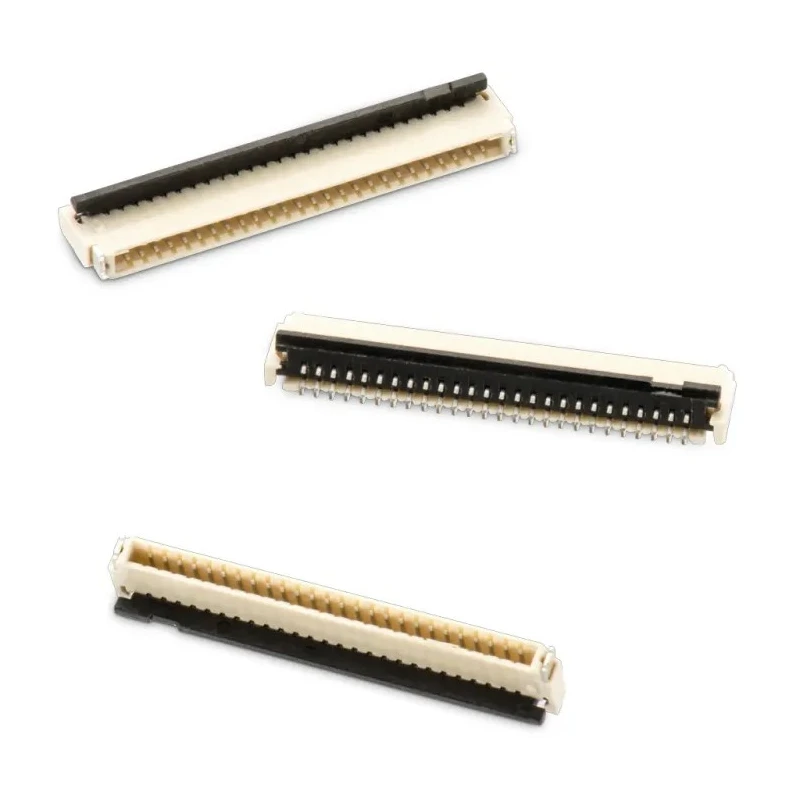

Wurth Elektronik Horizontal Male FPC Connector, ZIF Top & Bottom Contact, 17 Way, 0.5 mm Pitch, Surface Mount 687117182122

The Wurth Elektronik 687117182122 horizontal male FPC connector is designed for advanced PCB applications, where high-density signal transmission and reliable mechanical retention are essential. Featuring 17 contact positions with a narrow 0.5 mm pitch, it delivers excellent connectivity for fine pitch circuits commonly used in consumer electronics, instrumentation, and industrial controls.

This connector employs a ZIF (Zero Insertion Force) mechanism, allowing contacts to be made or released with minimal mechanical stress. Both top and bottom contacts are available, providing flexibility for signal routing as well as dual contact redundancy. The dual contact position enhances electrical and mechanical stability during board-to-board or flexible circuit connections.

The phosphor bronze contacts, plated with tin over nickel, provide high conductivity, corrosion resistance, and reliable performance in repeated mating cycles. Housing made from liquid crystal polymer offers mechanical strength, flame retardancy, and thermal endurance, making the connector suitable for extended temperature ranges from -55°C to 85°C.

Designed for surface mounting, this connector is optimized for space-saving horizontal PCB layouts and automated manufacturing environments. Its built-in locking mechanism delivers secure retention, preventing accidental disengagement during operation or handling.

Rated for 500 mA current and 250V AC voltage, the connector is suitable for a wide range of low- and medium-power signal lines and provides robust performance in demanding applications such as industrial electronics, medical devices, and compact embedded systems. The minimal insertion force reduces the risk of pin damage and facilitates high-volume assembly.

The single-row configuration and reliable dual contact orientation enable versatile integration with microcontrollers, sensors, and interface boards. Common industrial, laboratory, and manufacturing use cases include PCB interconnects, flexible circuit integration, and signal harnessing in compact or modular equipment.

Recommended for use in environments where space, reliability, and thermal stability are priorities, this connector can be found in telecommunications, automotive electronics, precision instrumentation, and advanced consumer products.
