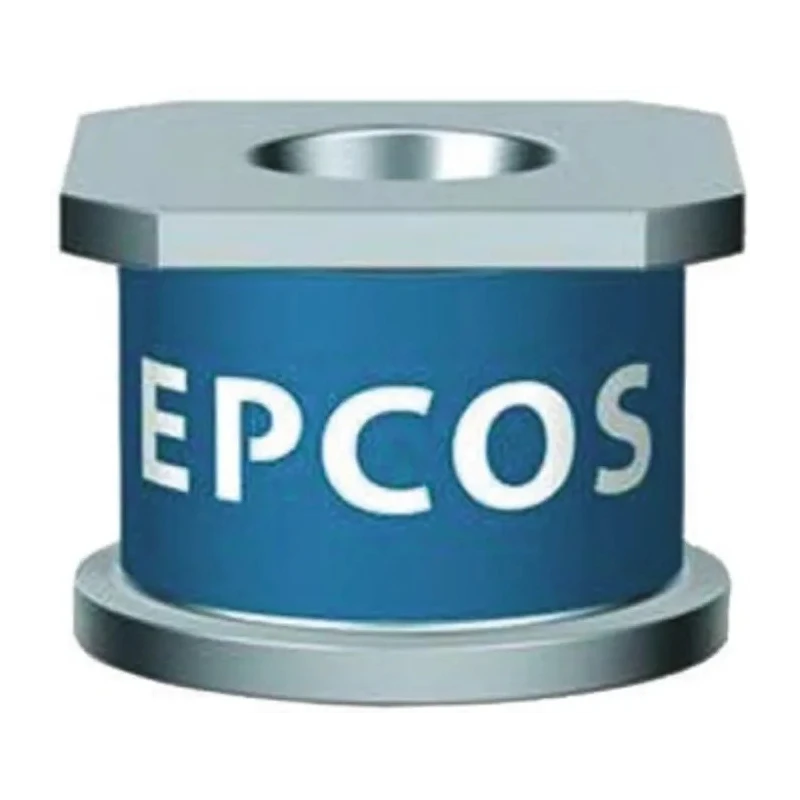

TDK EHV Series Surface Mount 2 Electrode Gas Discharge Tube Arrester 90V DC 25kA B88069X1630T602

Free Delivery in India | Lowest Global Shipping Charges

TDK EHV Series Surface Mount 2 Electrode Gas Discharge Tube Arrester 90V DC 25kA B88069X1630T602



Category Gas Discharge Tube Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	8.3mm
Length	6.05mm
Model	B88069X1630T602
Depth	8.3mm
Mount Type	Surface
Series	EHV
Maximum Operating Temperature	90°C
Capacitance	1.5pF
Minimum Operating Temperature	-40°C
Suppressor Type	2 Electrode Arrester
Maximum Voltage	90V dc
Maximum Surge Current	25kA
DC Spark Over Voltage	90V dc
Impulse Spark Over Voltage	550V

Key Features

Miniature surface mount device offers compact 6.05mm x 8.3mm x 8.3mm dimensions.
2 Electrode arrester provides reliable surge suppression in telecommunication and electronic circuits.
Maximum impulse spark over voltage of 550V ensures robust protection against voltage spikes.
Wide operating temperature range from -40°C to 90°C suits harsh environments.
Low capacitance of 1.5 pF minimizes impact on circuit performance.
Suitable for mounting in exchange main distribution frames and subscriber-end equipment.
Designed with 25kA maximum surge current rating for high energy transient suppression.
RoHS compliant for environmental safety and regulatory compliance.

Product Description

TDK B88069X1630T602 Series miniature gas discharge tube arrester is a surface mount surge protection component. It features a 2 electrode arrester design specifically engineered for use in telecommunication equipment and sensitive electronic devices. The device operates at a maximum voltage of 90V DC and can suppress surge currents up to 25kA, providing reliable protection against electrical transients.

The gas discharge tube has compact dimensions of 6.05mm length, 8.3mm height, and 8.3mm depth, enabling space-saving mounting on PCBs. Its low capacitance of 1.5 pF ensures minimal interference with high-frequency signals. The unit is rated for use in environments ranging from -40°C to 90°C, making it robust for diverse industrial and commercial applications.

Typical applications include telecommunication exchange main distribution frames, subscriber-end equipment, and any electronic circuits susceptible to voltage surges and spikes. The arrester helps maintain equipment integrity by clamping transient overvoltages, thereby preventing damage and enhancing system reliability.

The device has no additional formal industry approvals but is RoHS compliant, assuring environmentally responsible manufacturing. Its surface mount form factor improves production efficiency, especially in automated assembly lines.

Miniature surface mount surge arrester component. 2 Electrode design suitable for telecom and electronic circuits. Maximum surge current of 25kA for high transient energy absorption. Operating voltage up to 90V DC ensures compatibility with low voltage systems.

Wide temperature tolerance from -40°C to 90°C for harsh operating conditions. Low capacitance preserves signal integrity in high-frequency applications. Compact size allows integration in space-constrained layouts. RoHS compliant for regulatory and environmental standards adherence.

This TDK gas discharge tube arrester is ideal for industrial, telecommunications, electronics manufacturing, and testing laboratories requiring efficient surge protection solutions. For a comprehensive selection of surge protection components including Gas Discharge Tubes, please explore our Electronics & Electricals catalog at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum surge current rating of this model is 25kA, providing high energy transient suppression.

It has compact dimensions of 6.05mm in length, 8.3mm in height, and 8.3mm in depth, making it suitable for space-constrained applications.

This model operates at a maximum voltage of 90V DC, ensuring compatibility with low voltage systems.

The device can operate within a wide temperature range from -40°C to 90°C, making it suitable for harsh environments.

It features a low capacitance of 1.5 pF, which minimizes impact on circuit performance, especially in high-frequency applications.

This model is designed for surface mounting, which facilitates easy integration into printed circuit boards (PCBs).

The impulse spark over voltage is rated at 550V, ensuring robust protection against voltage spikes.

It is suitable for use in telecommunication exchange main distribution frames, subscriber-end equipment, and electronic circuits susceptible to voltage surges.

Yes, this model is RoHS compliant, ensuring it meets environmental safety and regulatory standards.

The suppressor type is a 2 electrode arrester, specifically engineered for surge suppression in electronic circuits.

The country of origin for this device is India.

Key features include a maximum surge current of 25kA, low capacitance of 1.5 pF, and a wide operating temperature range from -40°C to 90°C, enhancing its reliability in diverse applications.
