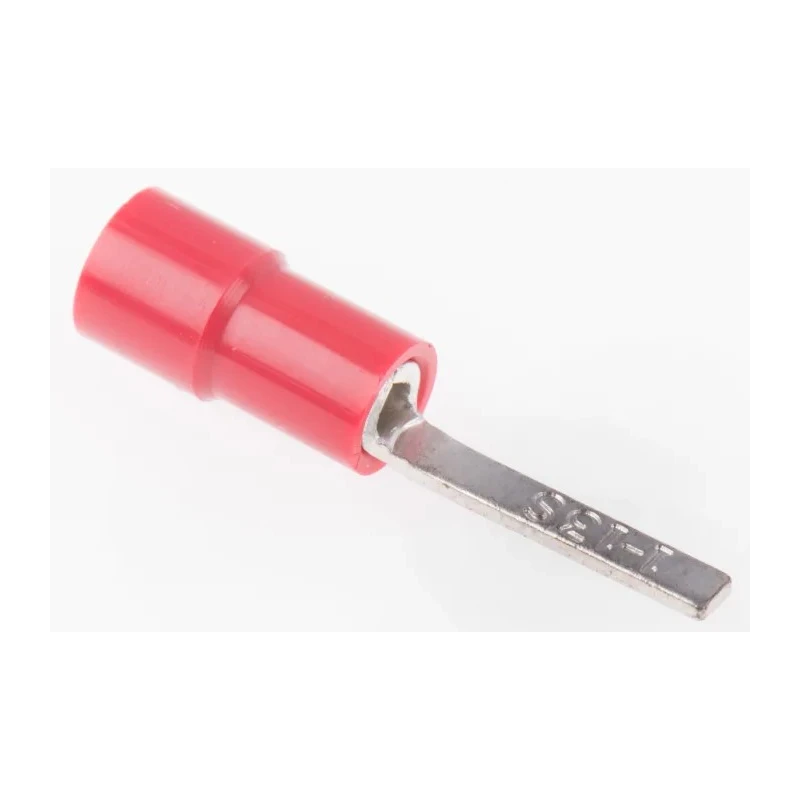

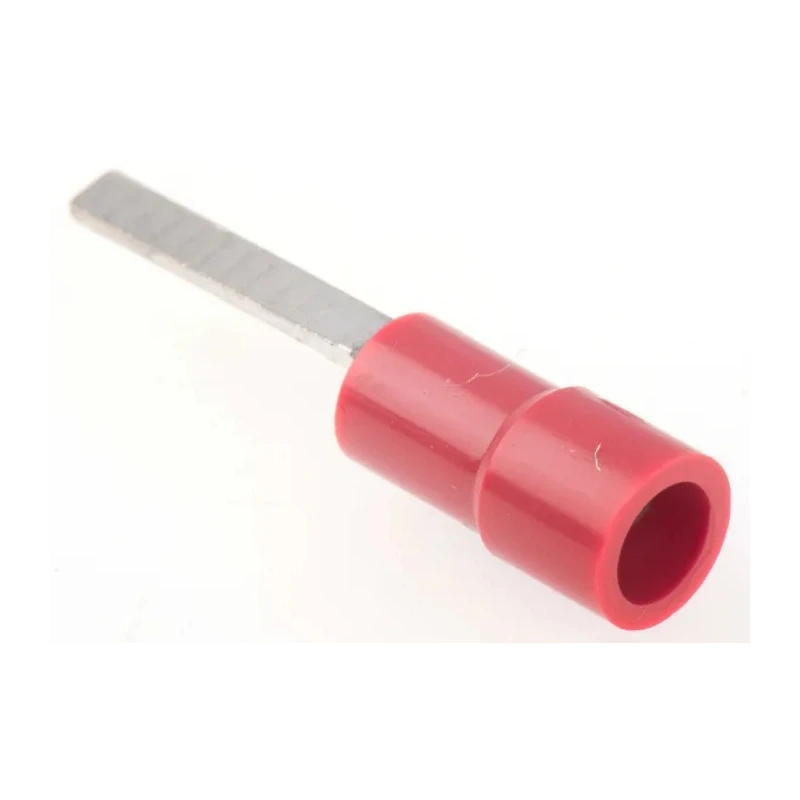

RS PRO Insulated Crimp Blade Terminal 13 mm Blade Length 22 AWG to 16 AWG Red 613-9700
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Model | 613-9700 |
| Insulation | Insulated |
| Overall Length | 23.8mm |
| Contact Material | Copper |
| Blade Length | 13mm |
| Insulation Material | Vinyl |
| Inside Diameter | 4mm |
| Blade Width | 3mm |
| Blade Thickness | 0.75mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Per Unit, RS stock no | 613-9700 |
| RS stock no | 270-7467 |
| RF Insulated Crimp Blade Terminal 13.2mm Blade Length, RedBrand | NEUTRAL |
Key Features
- Insulated blade terminal with vinyl insulation protects connections.
- Sized for 22 AWG to 16 AWG wires with minimum 0.5 mm² and maximum 1.5 mm² cross-section.
- Blade length of 13 mm with 23.8 mm overall length ensures precise fit.
- Copper contact material with tin plating offers corrosion resistance.
- Red colour coding for easy identification of wire gauge compatibility.
- Non-hooked male connector design for standard crimping applications.
- Designed for use in electrical and electronics components wiring and splicing.
- Small pack and bulk pack available for varied quantity needs.
Product Description
RS PRO 613-9700 Insulated Crimp Blade Terminal is engineered for reliable and durable electrical terminations in wires sized from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). It features a 13 mm blade length within a total terminal length of 23.8 mm, suited for precise connections in electronics and electrical systems.
The terminal uses a copper contact material plated with tin to reduce oxidation and enhance conductivity. The blade width is 3 mm, with an inside diameter of 4 mm and blade thickness of 0.75 mm, offering robustness in mechanical and electrical performance. The blade terminal is insulated with vinyl, which is flared for ease of insertion and protection against accidental shorts.
The red vinyl insulation provides a clear colour code that instantly identifies its wire gauge compatibility, vital in complex electrical assemblies. It employs a non-hooked male blade type designed for straightforward crimping onto stranded single-wire electrical cords without the need for soldering.
These crimp blade terminals are commonly used in industrial, laboratory, HVAC, and general electronics wiring for secure wire-to-wire connections. The RS PRO range assures quality and conformity to practical electrical engineering standards, though no specific certifications apply to this product.
Insulated vinyl sleeve prevents damage and shorts. Tin-plated copper contacts enable long-lasting connections. Compact 13 mm blade length fits varied terminal housings. Suitable for 22 AWG to 16 AWG wiring applications. Easy identification with red insulation colour.
Standard non-hooked male Blade Terminal type. Available in both single unit packaging and bulk packs.
This product is an ideal choice for professionals requiring dependable crimp terminals in manufacturing, electrical maintenance, and assembly operations. It supports efficient, corrosion-resistant connections in critical electronic and electrical circuits.
For more RS PRO quality solutions in terminals and connectors, explore the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is compatible with wire sizes from 22 AWG to 16 AWG, which corresponds to a minimum cross-section of 0.5 mm² and a maximum of 1.5 mm².
The blade length of this crimp blade terminal is 13 mm, with an overall terminal length of 23.8 mm.
The contacts are made of copper and are plated with tin to enhance conductivity and reduce oxidation.
It features vinyl insulation, which protects connections and prevents accidental shorts.
The inside diameter of the blade is 4 mm, allowing for a secure fit with compatible wires.
The blade width is 3 mm, and the blade thickness is 0.75 mm, contributing to its mechanical performance.
This model features a non-hooked male connector design, which is suitable for standard crimping applications without soldering.
It is commonly used in industrial, laboratory, HVAC, and general electronics wiring for secure wire-to-wire connections.
This crimp blade terminal is available in both single unit packaging and bulk packs to accommodate varied quantity needs.
The country of origin for this crimp blade terminal is India.
While it is designed to meet practical electrical engineering standards, no specific certifications apply to this product.
The terminal features red vinyl insulation for easy identification of wire gauge compatibility.
