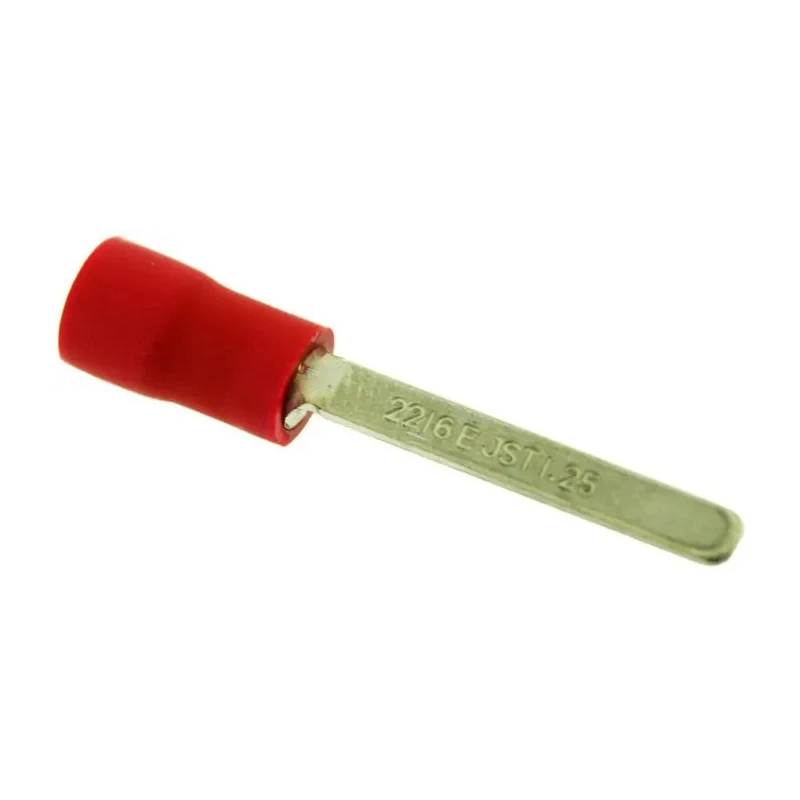

JST Insulated Crimp Blade Terminal 18 mm Blade Length, 22 AWG to 16 AWG, Red FV1.25-AF2.3A(LF)K

Free Delivery in India | Lowest Global Shipping Charges

JST Insulated Crimp Blade Terminal 18 mm Blade Length, 22 AWG to 16 AWG, Red FV1.25-AF2.3A(LF)K



Category Blade Terminal Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Red
Model	FV1.25-AF2.3A(LF)K
Insulation	Insulated
Overall Length	27.2mm
Blade Length	18mm
Insulation Material	Vinyl
Inside Diameter	4mm
Blade Width	2.3mm
Blade Thickness	0.8mm
Standards/Approvals	RoHS
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG

Key Features

Vinyl insulation provides high insulation properties and flame resistance.
High resistance to heat, cold, oil, and fire ensures durable performance.
Flared wire entry allows for quick and simple wire insertion.
Constructed from oxygen-free copper offering excellent electrical conductivity and mechanical strength.
High strength brazed seams enhance terminal durability.
Rated for operation up to 75 degrees Celsius temperature.
Blade thickness of 0.8 mm and width of 2.3 mm ensure reliable connectivity.
Compact overall length of 27.2 mm suitable for various electronic applications.

Product Description

JST FV1.25-AF2.3A(LF)K insulated crimp blade terminal features an 18 mm blade length and is designed for wire sizes ranging from 22 AWG to 16 AWG. The terminal is insulated with vinyl material that offers both high insulation properties and flame resistance, making it suitable for demanding electronic applications.

These AF type blade terminals exhibit excellent resistance to heat, cold, oil, and fire, contributing to their dependable performance in various industrial, manufacturing, and electronic component assembly settings.

The flared wire entry design facilitates fast and simple wire insertion, improving installation efficiency. The terminal blades themselves are made from oxygen-free copper, known for superior electroconductivity and mechanical characteristics, surpassing standard copper materials. This oxygen-free copper also permits high-strength brazed seams without hydrogen embrittlement, ensuring long-lasting and robust connections.

The blade has a thickness of 0.8 mm, a width of 2.3 mm, and an inside diameter of 4 mm, while the overall terminal length measures 27.2 mm. The terminal is colored red for easy identification and complies with RoHS standards for environmental safety. It is manufactured in Japan, ensuring high quality and reliability.

This insulated crimp blade terminal is ideal for electronics manufacturing, power connectors assembly, wire terminal applications, and other industrial electronic component uses that require reliable and flame-resistant insulation combined with excellent electrical conductivity.

Vinyl insulation provides high insulation and flame resistance. High resistance to extreme environmental conditions such as heat and cold. Oxygen-free copper blade ensures excellent electrical and mechanical properties. Flared design simplifies wire insertion during installation.

RoHS compliant and manufactured under strict quality controls in Japan. Rated for continuous operation up to 75°C. Compact design with 27.2 mm overall length and 18 mm blade length. Explore the full range of Blade Terminals and wire terminals on EnvMart for various industrial and electronic applications.
