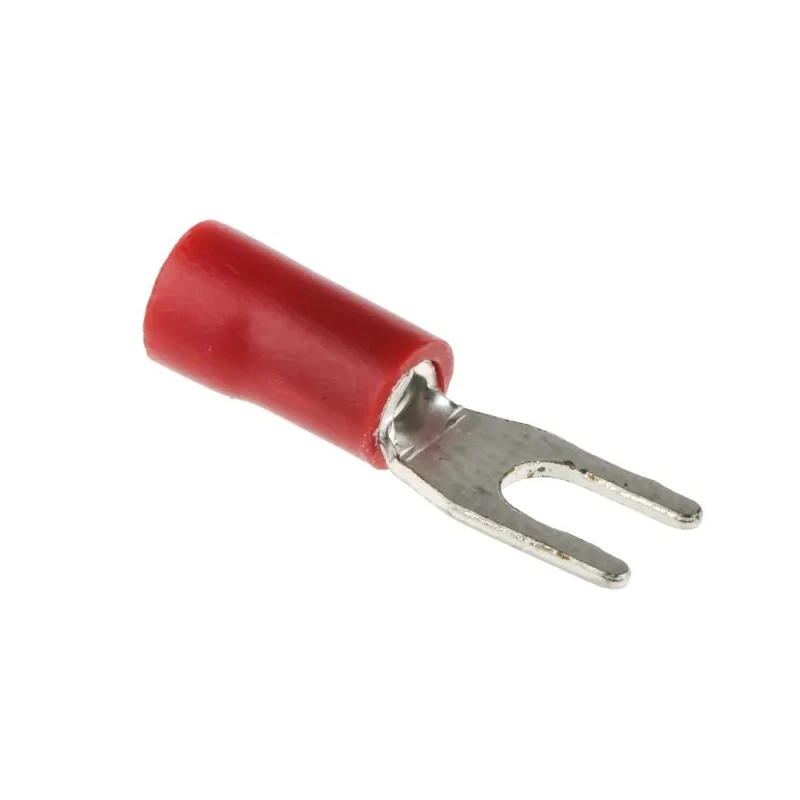

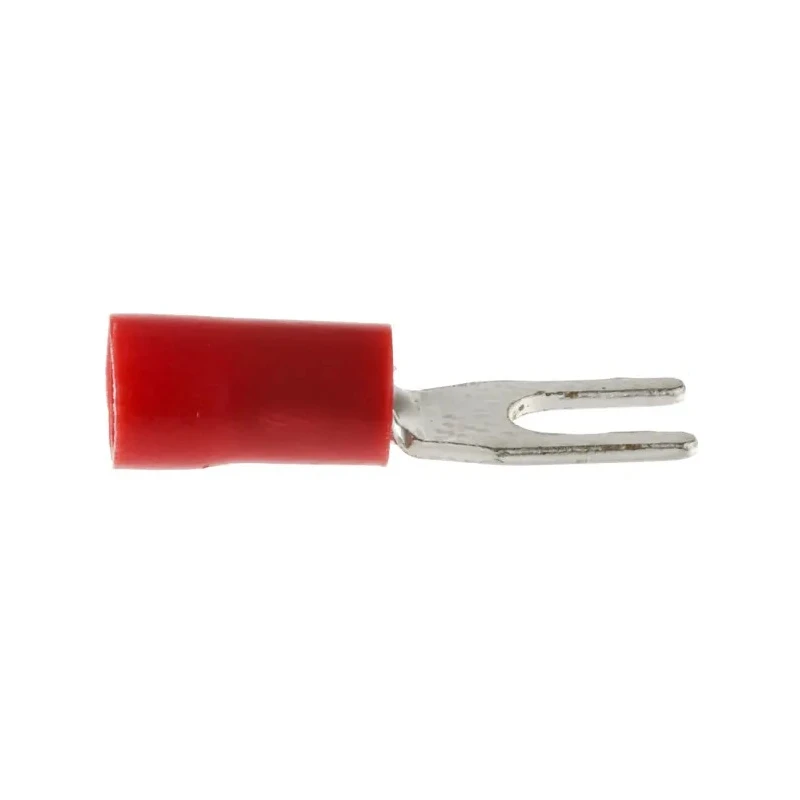

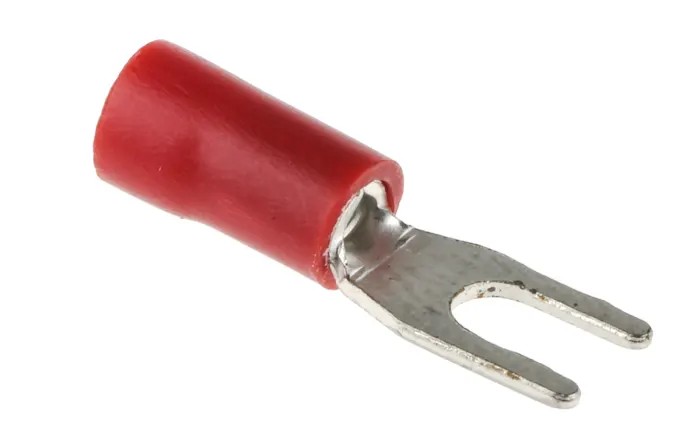

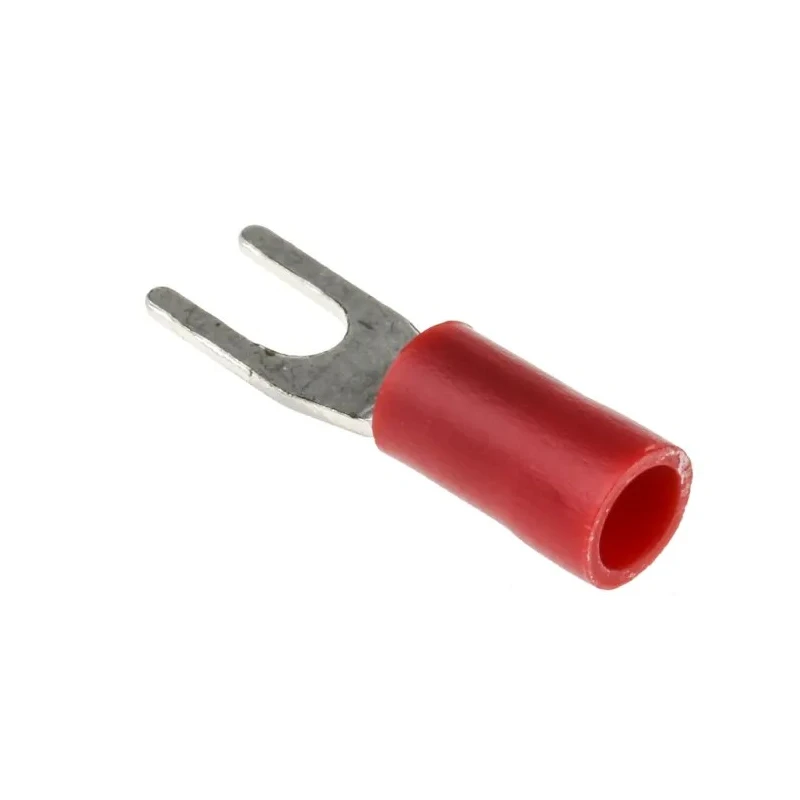

TE Connectivity Insulated Crimp Spade Connector 22 AWG to 16 AWG, M3 Stud Size, Vinyl, Red, 0.5 mm² - 1.5 mm² 208-2515
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 208-2515 |
| Width | 5.7mm |
| Insulation | Insulated |
| Overall Length | 20.5mm |
| Contact Material | Copper |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Stud Size | M3 |
Key Features
- Provides secure electrical connections for 22 - 16 AWG wires.
- Features insulated vinyl construction for enhanced safety and durability.
- Copper contact material with tin plating ensures reliable electrical conduction.
- Suitable for wire sizes from 0.5 mm² to 1.5 mm² and includes an M3 stud for easy installation.
- Red vinyl insulation offers clear identification and resistance to environmental factors.
- Spade connector design facilitates rapid panel wiring and harness construction.
- Overall length of 20.5 mm and width of 5.7 mm allow easy fit in confined spaces.
Product Description
RS PRO 208-2515 Insulated Crimp Spade Connector is designed to provide robust and reliable electrical wire terminations for panel and harness assembly. This connector accepts stranded wires with gauges from 22 AWG up to 16 AWG and supports wire sizes ranging from 0.5 mm² to 1.5 mm², making it suitable for a wide range of low-voltage electrical and electronics applications.
The core contact is constructed of copper material with a tin-plated finish, delivering excellent conductivity and corrosion resistance. The red vinyl insulation not only offers protection and electrical isolation but also makes identification fast and accurate in busy control panels or wiring harnesses.
The M3 stud size is engineered for secure mechanical fastening in terminal blocks or panel fastener installations. The terminal itself features a 0.8 mm thickness and a compact overall length of 20.5 mm with a width of 5.7 mm, ensuring easy accommodation in space-constrained assemblies. The fork design of the spade terminal allows quick connection and disconnection from screw terminals without the need for completely removing fasteners, streamlining maintenance and upgrades.
Typical uses include wiring of control panels, distribution boards, electrical harnesses in machinery, switches, and automotive or HVAC wiring, wherever robust and insulated crimp connectors are required for dependable performance. The color-coded red insulation facilitates compliance with wiring standards and helps in visual troubleshooting.
Designed for industrial, commercial, and laboratory wiring projects, RS PRO crimp Spade Connectors undergo rigorous testing to assure quality and reliability. The vinyl insulation resists abrasion and withstands moderate environmental exposures, extending the service life of the terminal.
This connector is part of the RS PRO brand, offering trusted value and high quality for professional electricians, engineers, and assembly technicians. Browse other RS PRO connectors and wire terminal solutions on EnvMart for compatible products and comprehensive wiring accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This spade connector supports wire sizes from 0.5 mm² to 1.5 mm², which corresponds to 22 AWG to 16 AWG.
The overall length of this connector is 20.5 mm, and its width is 5.7 mm.
The contact material of this connector is copper, which is tin-plated for enhanced conductivity and corrosion resistance.
The insulation material used in this connector is vinyl, which provides electrical isolation and protection.
The stud size for this spade connector is M3, designed for secure mechanical fastening.
The thickness of this connector is 0.8 mm.
This spade connector is suitable for applications such as wiring of control panels, distribution boards, electrical harnesses in machinery, and automotive or HVAC wiring.
The fork design allows for quick connection and disconnection from screw terminals without fully removing fasteners, facilitating easier maintenance and upgrades.
The insulation is red, which not only provides clear identification but also helps in compliance with wiring standards and visual troubleshooting.
This connector is manufactured in Taiwan.
This connector provides secure electrical connections for panel and harness assembly, ensuring reliable terminations for low-voltage applications.
This connector undergoes rigorous testing to assure quality and reliability, suitable for industrial, commercial, and laboratory wiring projects.
