JST FV Insulated Crimp Blade Terminal 18 mm Blade Length, 22 AWG to 16 AWG, Red FVWS1.25-AF2.3A(LF)

Free Delivery in India | Lowest Global Shipping Charges

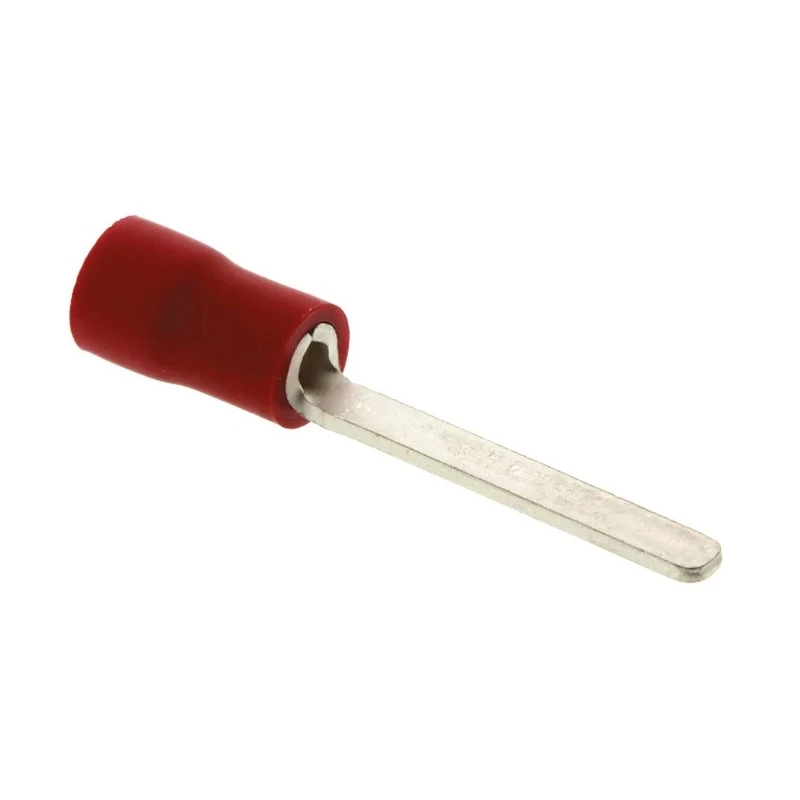

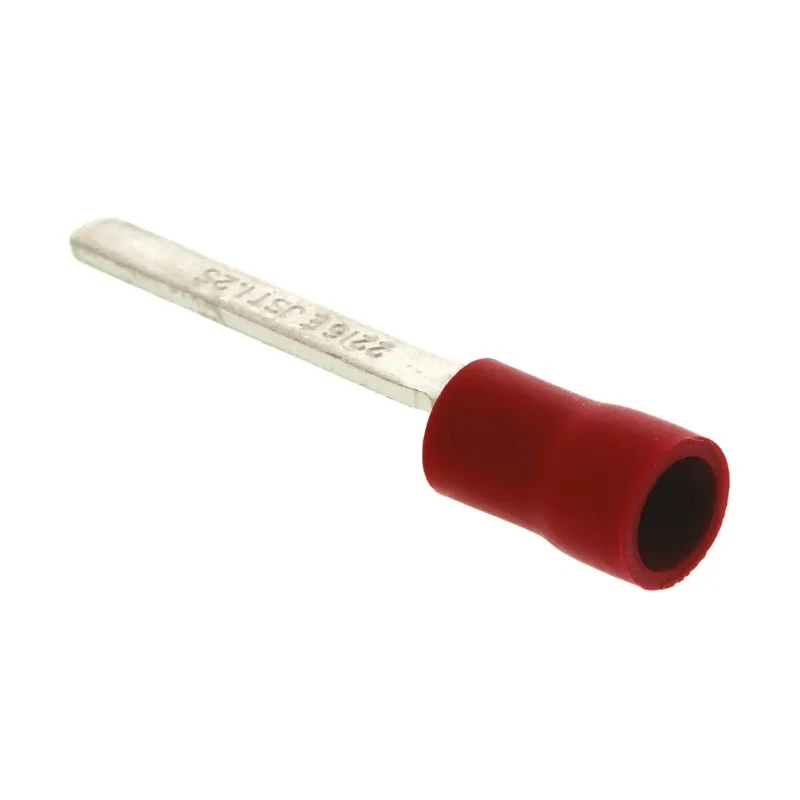

JST FV Insulated Crimp Blade Terminal 18 mm Blade Length, 22 AWG to 16 AWG, Red FVWS1.25-AF2.3A(LF)



Category Blade Terminal Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Colour	Red
Model	FVWS1.25-AF2.3A(LF)
Insulation	Insulated
Overall Length	27.2mm
Series	FV
Blade Length	18mm
Insulation Material	Vinyl
Inside Diameter	4mm
Blade Width	2.3mm
Blade Thickness	0.8mm
Minimum Wire Size mm²	0.25mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG

Key Features

Insulated crimp blade terminal ensures safe and reliable wire connections.
Constructed with vinyl insulation providing durability and electrical protection.
Compatible with wire sizes from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²).
Features an 18 mm blade length and 2.3 mm blade width optimized for efficient connections.
Overall terminal length is 27.2 mm, with a blade thickness of 0.8 mm for strength.
Red color coding aids quick identification and wiring organization.

Product Description

JST FVWS1.25-AF2.3A(LF) insulated crimp blade terminal provides a high-quality, durable connection solution for electrical wiring requiring insulation and mechanical security. Its vinyl insulation offers robust protection against abrasion and electrical hazards, ideal for various electronic and electrical component assemblies.

The terminal is designed to accommodate wire sizes ranging from 22 AWG to 16 AWG (0.25 mm² to 1.65 mm²), making it versatile for multiple wiring applications. Featuring an 18 mm blade length with 2.3 mm blade width and 0.8 mm blade thickness, the terminal ensures a solid and reliable mechanical and electrical connection.

Its overall length of 27.2 mm facilitates easy installation and handling in electronic assemblies, while the red color coding helps distinguish terminal types or wiring groups efficiently. The inside diameter of 4 mm complements compatibility with connectors and mounting hardware.

JST insulated crimp Blade Terminals with the 'FVWS' prefix denote a butted seam and flared vinyl insulation, delivering enhanced electrical insulation and durability in harsh environments. These terminals are suitable for use in industrial, electronics manufacturing, automotive, and power distribution systems requiring precise and reliable fastening solutions.

Insulated design improves electrical safety and protects against short circuits. Vinyl insulation compounds provide durability and resistance to environmental factors. Compatible with wire gauges from 22 AWG to 16 AWG for broad applicability.

Standardized dimensions ensure interchangeability and ease of installation. Red color insulation aids in wire identification and system organization. Manufactured in Japan to high-quality standards for consistent performance.

Ideal for industrial, laboratory, and commercial electrical connections.
