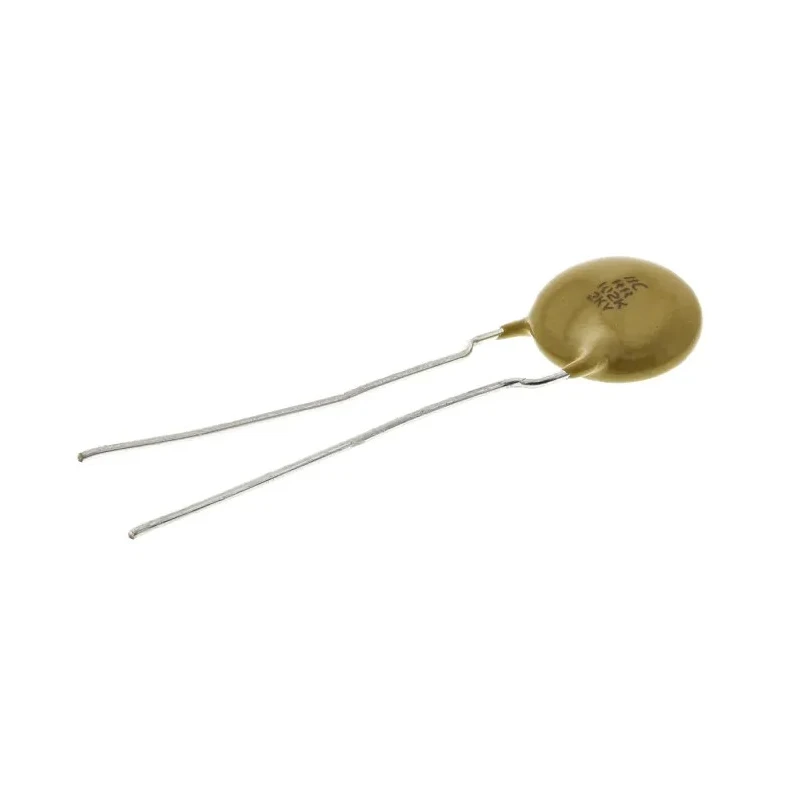

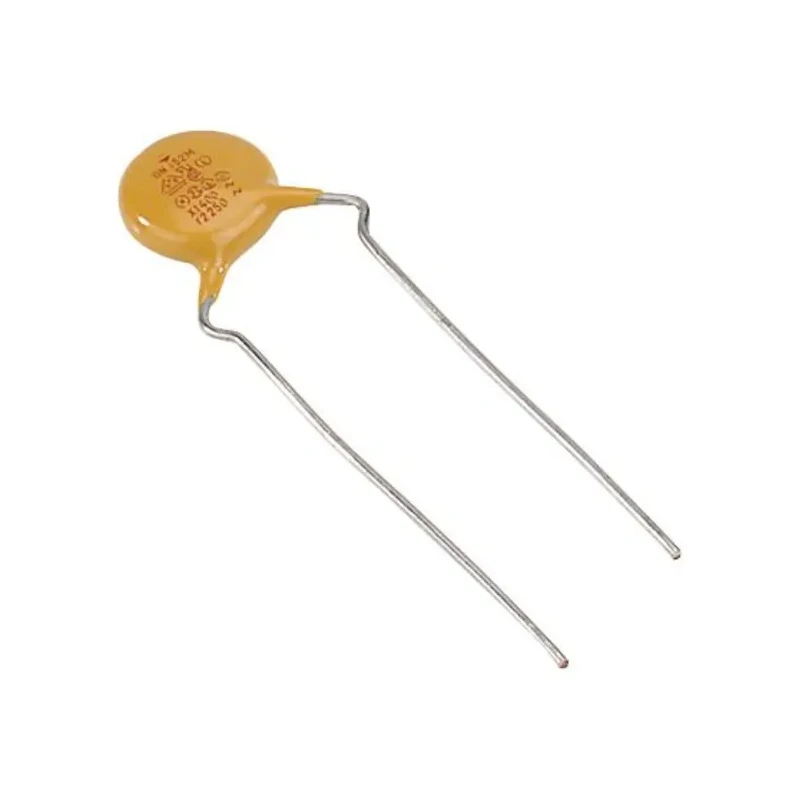

Vishay Single Layer Ceramic Capacitor 1 nF 2kV dc ±10 % Y5R Dielectric Through Hole F Series F102K43Y5RP6UK5R

The Vishay F102K43Y5RP6UK5R is a single layer ceramic capacitor delivering 1 nF capacitance and 2kV dc rated voltage with a ±10 % tolerance utilizing Y5R dielectric technology. It is designed for through-hole mounting featuring a disc package with radial leads. The capacitor supports a maximum operating temperature of 125 °C and exhibits a dissipation factor of 0.2%, making it suitable for applications requiring low losses and high reliability.

This capacitor is ideal for electronic circuits where compact size with high capacitance is essential, such as in switching power supplies (SMPS), high frequency ballast circuits, snubbers, and other high voltage circuits. It is not suited for mains suppression applications, which typically require X and Y suppression capacitors.

With a pin count of 2 and mounting type through hole, it provides secure and reliable PCB connectivity. The physical dimensions are 40 mm height, 11 mm length, 11 mm diameter, and 5 mm width, offering a compact form factor in electronic assemblies. Operating temperature ranges from -30 °C to 125 °C, allowing broad environmental tolerance.

This Vishay capacitor conforms to ROHS and EC directives and is classified under Class II suppression. Its features include high capacitance density, low losses, and stable performance under varying environmental conditions. Ideal for industrial, commercial, and laboratory electronic applications demanding dependable ceramic capacitors with high voltage ratings.

Uses Y5R dielectric technology for high capacitance and temperature stability. Rated for 2kV dc voltage with ±10 % tolerance ensures precise performance. Disc package with radial terminal type supports through-hole PCB mounting.

Low dissipation factor (0.2%) improves efficiency in high frequency circuits. Dimensioned for compact electronics with 40 mm height and small diameter. Meets RoHS and EC standards ensuring compliance with environmental regulations.

Suitable for SMPS, ballast, snubber, and high voltage electronic circuit applications. Operating temperature range from -30 °C to 125 °C for versatile usage. Explore more Single Layer Ceramic Capacitors and electronic components at EnvMart for reliable industrial and laboratory applications.
