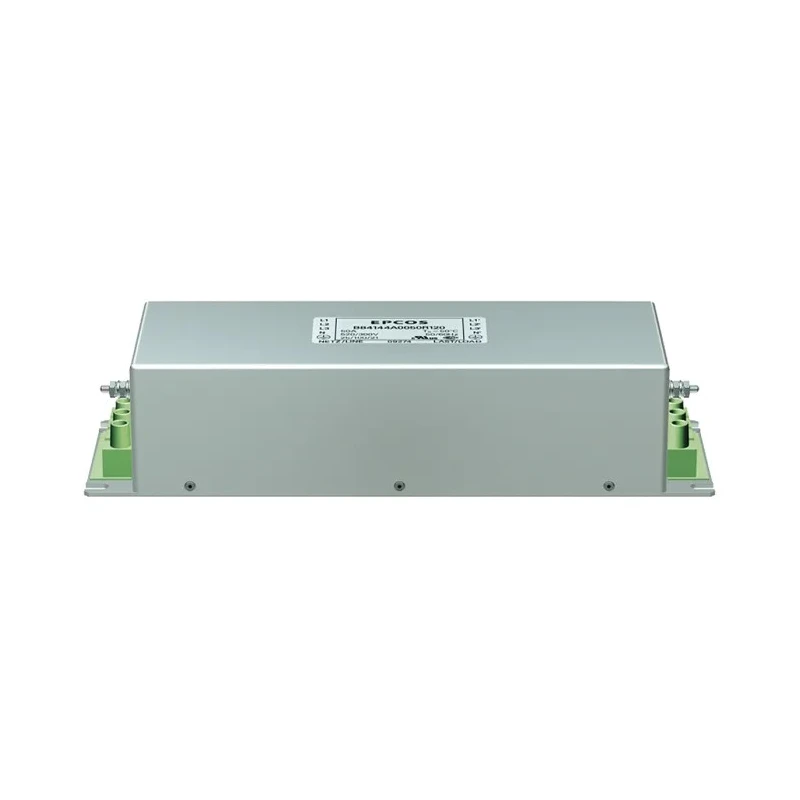

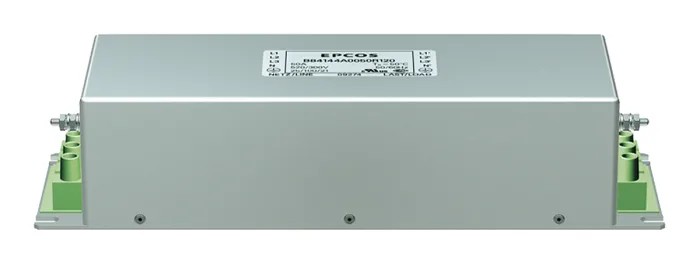

TDK EMC Filter B84144A0066R120 66A 520V AC 50Hz 60Hz Flange Mount Screw Termination 3 Phase B84144A0066R120

Free Delivery in India | Lowest Global Shipping Charges

TDK EMC Filter B84144A0066R120 66A 520V AC 50Hz 60Hz Flange Mount Screw Termination 3 Phase B84144A0066R120



Category EMC Filters Brand TDK Condition New

Specifications

Country of Origin	Hungary
Brand	TDK
Height	80mm
Length	100mm
Model	B84144A0066R120
Depth	324.6mm
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84144A*R120
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	1.1mΩ
Minimum Operating Temperature	-25°C
Maximum Current	66A
Number of Phases	3
Leakage Current	13mA
Maximum Voltage	520V ac
Standards/Approvals	UL 1283
Termination Style	Screw
Applications include	Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications

Key Features

Designed for flange mounting with screw termination style.
Suitable for 3 phase electrical systems.
Features a single-stage filter in a metal case potted with polyurethane.
Operates between temperatures of -25°C to 100°C.
Low leakage current of 13mA ensures energy efficiency.
Compact dimensions of 80mm height, 324.6mm depth, and 100mm length.
Resistance rated at 1.1 milliohms to minimize power loss.
Certified to UL 1283 standard for electromagnetic compatibility.

Product Description

TDK B84144A0066R120 EMC Filter is a high-performance power line filter designed for industrial applications requiring electromagnetic compatibility control and noise suppression. The product supports a maximum current of 66A and a maximum voltage of 520V AC, operating efficiently at frequencies of 50Hz and 60Hz. This filter features a flange mount type with screw termination, suitable for three-phase power systems.

The filter is housed in a robust metal case potted with UL 94 V-0 rated polyurethane for electrical safety and durability. It is optimized for use with long motor cables and full load conditions, making it ideal for frequency converters associated with motor drives such as elevators, pumps, conveyor systems, and HVAC equipment. The design incorporates one stage for effective filtering with a low leakage current of 13mA.

Operating temperature ranges from -25°C up to 100°C, ensuring suitability in various industrial environments. The compact size with dimensions of 80mm in height, 324.6mm depth, and 100mm length allows easy integration into existing installations. Electrical resistance is very low at 1.1 mΩ, minimizing voltage drop and efficiency losses.

The product complies with standards EN 133200, UL 1283, and CSA C22.2 No.8, with UL and cUL approvals pending. Manufactured in Hungary, this EMC filter delivers reliable performance for power supplies and industrial EMI suppression applications.

Designed for flange mounting with screw termination style. Suitable for 3 phase electrical systems. Features a single-stage filter in a metal case potted with polyurethane. Operates between temperatures of -25°C to 100°C.

Low leakage current of 13mA ensures energy efficiency. Compact dimensions of 80mm height, 324.6mm depth, and 100mm length. Resistance rated at 1.1 milliohms to minimize power loss. Certified to UL 1283 standard for electromagnetic compatibility.

Optimized for long motor cable installations and full load operation. Applicable for frequency converters used in motor drives like elevators, pumps, and HVAC systems.

This TDK EMC filter is highly suited for industrial, manufacturing, HVAC, and power supply environments demanding EMC compliance and noise filtering. Browse EnvMart's Electronics Components catalog for compatible filters and power line solutions.
