RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size, 22 to 16 AWG 178-8295

Free Delivery in India | Lowest Global Shipping Charges

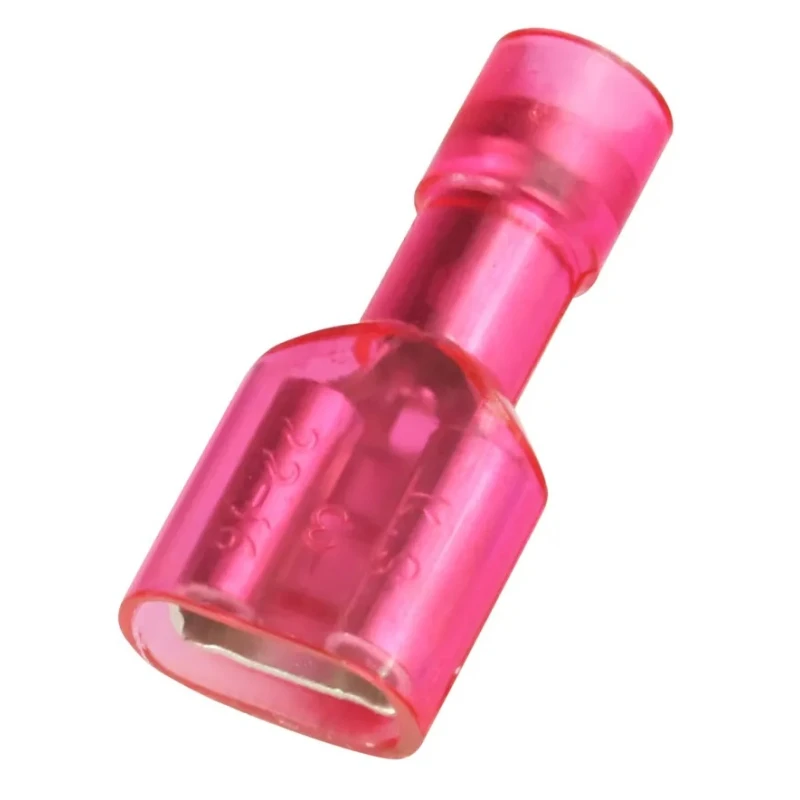

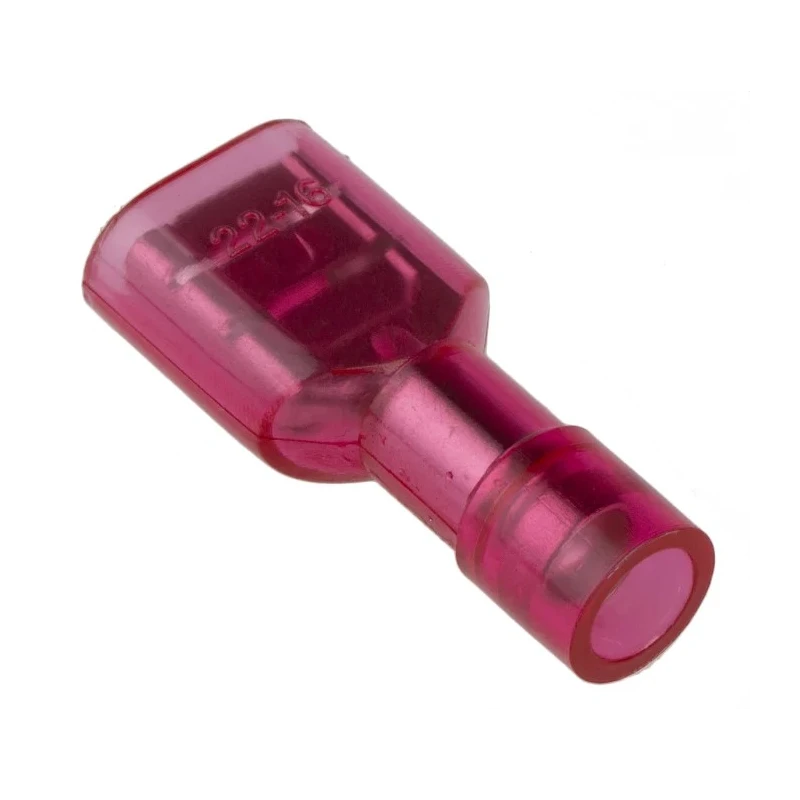

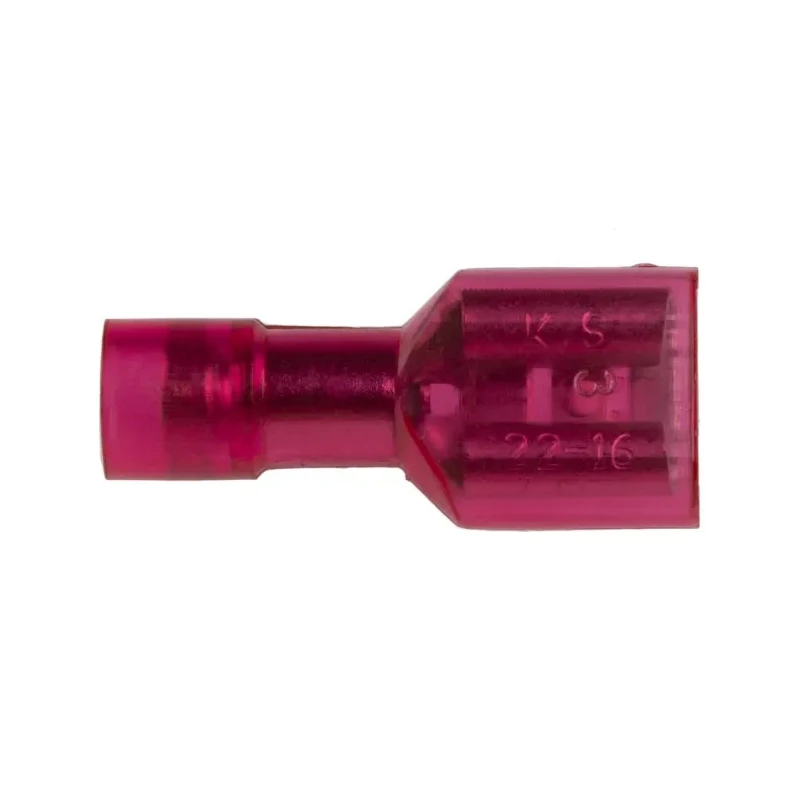

RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size, 22 to 16 AWG 178-8295

Name: RS PRO Red Insulated Female Spade Connector, Crimp, 0.8 x 6.35 mm Tab Size, 22 to 16 AWG 178-8295
Brand: RS PRO
SKU: 81938
Price: 0.18 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	178-8295
Gender	Female
Insulation	Insulated
Overall Length	21.5mm
Contact Material	Brass, Copper
Series	RS PRO
Termination Type	Crimp
Insulation Material	Polycarbonate
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	6.35mm
Tab Thickness	0.8mm
Tab Size	0.8 x 6.35 mm
Termination Method	Crimp

Key Features

Provides reliable crimp termination for electrical wiring applications.
Features a red insulated body made from polycarbonate for enhanced electrical safety and strain relief.
Accommodates wire sizes from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²), ensuring compatibility with diverse electrical setups.
Tab size is precisely 0.8 x 6.35 mm, suitable for standard spade connections.
Female connector orientation with straight entry for straightforward insertion and stable contact.
Constructed with brass and copper contacts, finished with tin plating for corrosion resistance and optimal conductivity.
Overall length of 21.5 mm for compact integration into panels or harnesses.
Designed to comply with general industry standards for wire terminals and splices.

Product Description

RS PRO offers the 178-8295 Red Insulated Female Spade Connector, engineered for secure and efficient crimp termination in electrical assemblies. This connector is specifically designed to accommodate tab sizes of 0.8 x 6.35 mm, providing a robust and standardized solution for quick connect/disconnect applications typically used in panels, control cabinets, and harnesses.

The connector supports wire sizes ranging from 22 AWG (0.5 mm²) up to 16 AWG (1.5 mm²), making it versatile for both light and medium gauge wires found in electronics, electrical controls, and machinery installations. Its insulation is crafted from red polycarbonate, ensuring enhanced electrical protection and offering strain relief on the wire during crimping.

Internally, the contact system utilizes a combination of brass and copper components with tin plating. This combination delivers exceptional conductivity and corrosion resistance, helping to maintain long-term performance in demanding environments. The female orientation is straight, enabling easy insertion and reliable mating with compatible male spade tabs.

With an overall length of 21.5 mm, the connector presents a compact profile suitable for high-density installations. The crimp termination method enables consistent mechanical and electrical connections when used with standard crimping tools, reducing the risk of loose or unreliable contacts.

Applications for this RS PRO spade connector span across industrial automation systems, electrical distribution panels, instrumentation, automotive wiring harnesses, and consumer electronic devices. The product’s construction and material choices ensure durability even in frequent connection/disconnection cycles, and its compliance with industry standards assures suitability for professional electrical installations.

Explore more variants and compatible accessories by browsing Spade Connector solutions within RS PRO's extensive range on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The tab size of this spade connector is 0.8 x 6.35 mm, making it suitable for standard spade connections.

It accommodates wire sizes ranging from 22 AWG (0.5 mm²) to 16 AWG (1.5 mm²), providing versatility for various electrical setups.

The connector is constructed with brass and copper contacts, finished with tin plating for corrosion resistance and optimal conductivity.

The overall length of this connector is 21.5 mm, allowing for compact integration into panels or harnesses.

This model utilizes a crimp termination method, ensuring consistent mechanical and electrical connections when used with standard crimping tools.

The connector features a straight orientation, enabling easy insertion and reliable mating with compatible male spade tabs.

Yes, it has a red insulated body made from polycarbonate, which enhances electrical safety and provides strain relief during crimping.

It is suitable for applications in industrial automation systems, electrical distribution panels, instrumentation, automotive wiring harnesses, and consumer electronic devices.

The contact system combines brass and copper components, ensuring exceptional conductivity and corrosion resistance for long-term performance.

The connector is designed to comply with general industry standards for wire terminals and splices, ensuring suitability for professional electrical installations.

This connector is manufactured in Taiwan, reflecting its origin in a recognized production region for electrical components.

This model is a female spade connector, designed to mate with male spade tabs for secure connections.
