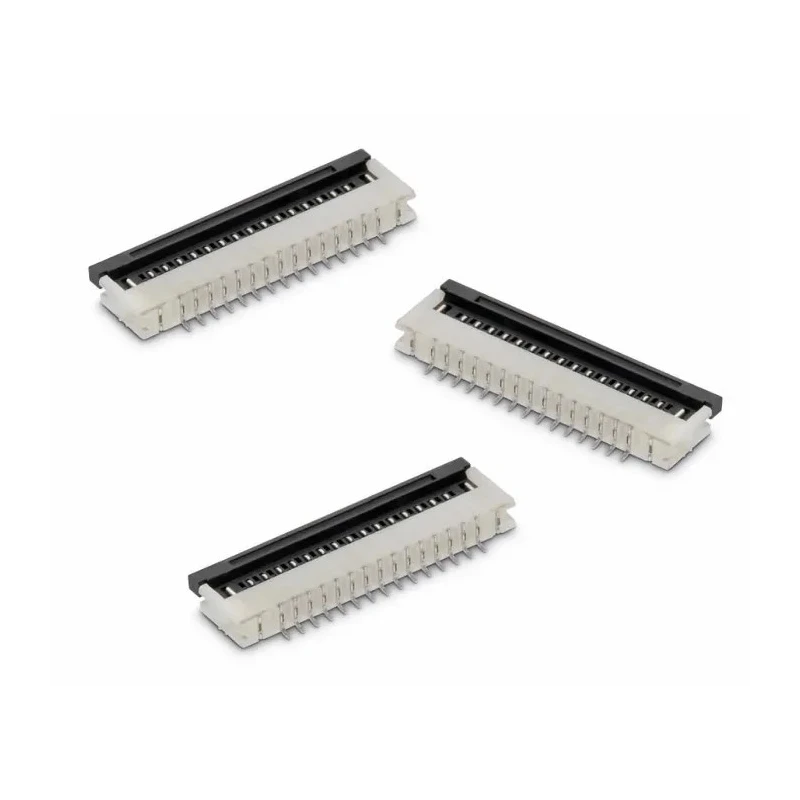

Wurth Elektronik WR-FPC 1 mm Pitch 18 Way Horizontal Female FPC Connector, ZIF Bottom Contact 686118148922

Wurth Elektronik 686118148922 WR-FPC 1 mm Pitch 18 Way Horizontal Female FPC Connector is engineered for demanding electronics environments where secure fine pitch flexible connections are essential. As part of the WR-FPC connector series, this model is designed with a 1.0 mm pitch configuration and supports up to 18 contacts, providing reliable wire-to-board connectivity in miniaturized devices.

This connector features a ZIF (Zero Insertion Force) bottom contact with a flip-lock hinge actuator. The actuator allows for easy insertion and strong retention of the FFC/FPC cable, eliminating the need for mating connectors. Its surface mount termination supports high-density placements on modern compact PCBs, enhancing design flexibility for industrial, instrumentation, and consumer devices.

The contacts are manufactured from phosphor bronze, delivering excellent electrical performance and mechanical strength. The tin-over-nickel plating resists corrosion, promising exceptional longevity even in demanding operational environments. The connector handles a maximum current of 1A and voltage up to 100V AC, supporting low to moderate power applications safely.

A solder retention feature stabilizes the connector during assembly, reducing defects and improving manufacturability. The horizontal orientation conserves vertical space, making this an ideal choice for devices requiring slim profiles such as handheld instruments, small displays, keyboards, and embedded systems.

Rated for operation between -40°C and +105°C, this connector is suitable for a wide range of industrial, laboratory, instrumentation, and commercial use cases. Integration is straightforward, as the FPC cable is inserted directly, streamlining installation and reducing materials cost.

The WR-FPC series connectors are widely used in sectors including industrial automation, laboratory instrumentation, smart electronics, consumer devices, medical equipment, and automotive dashboards. This model, with its combination of high reliability, compact design, and ease of assembly, is tailored for engineers and designers prioritizing robust signal transmission and mechanical integrity in space-constrained layouts.
