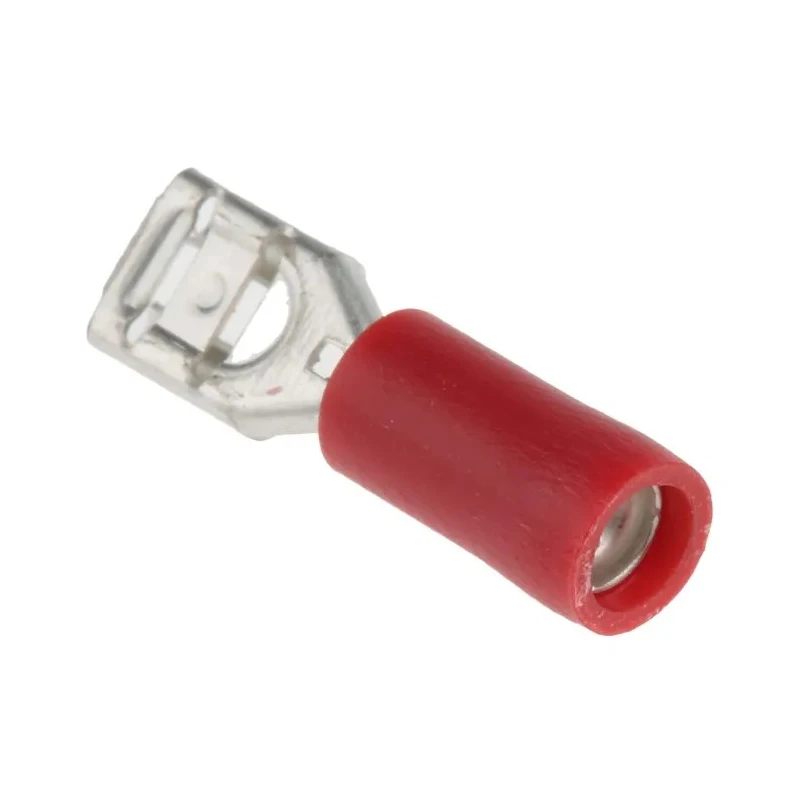

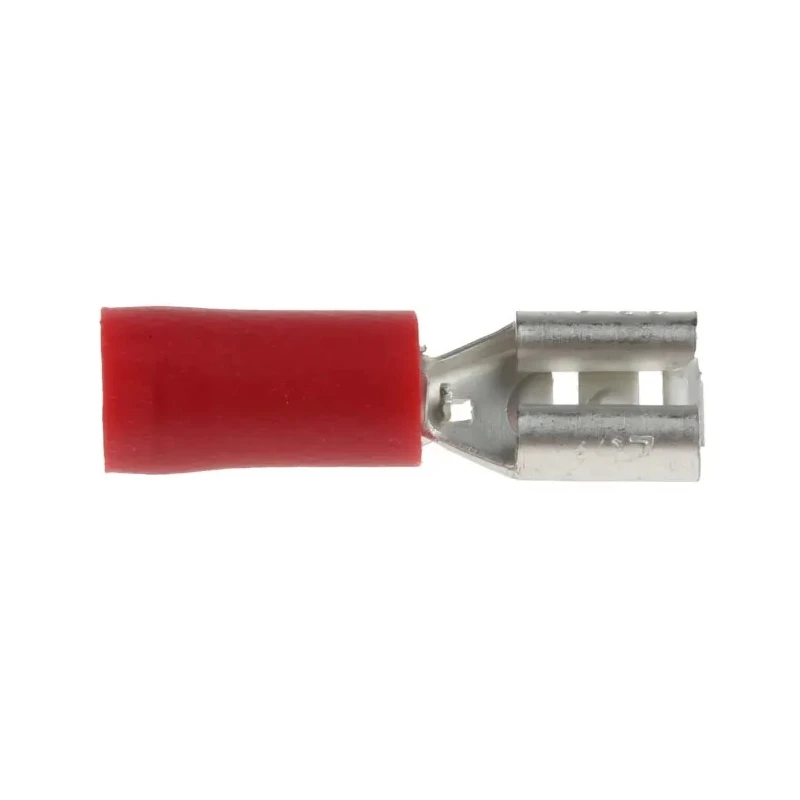

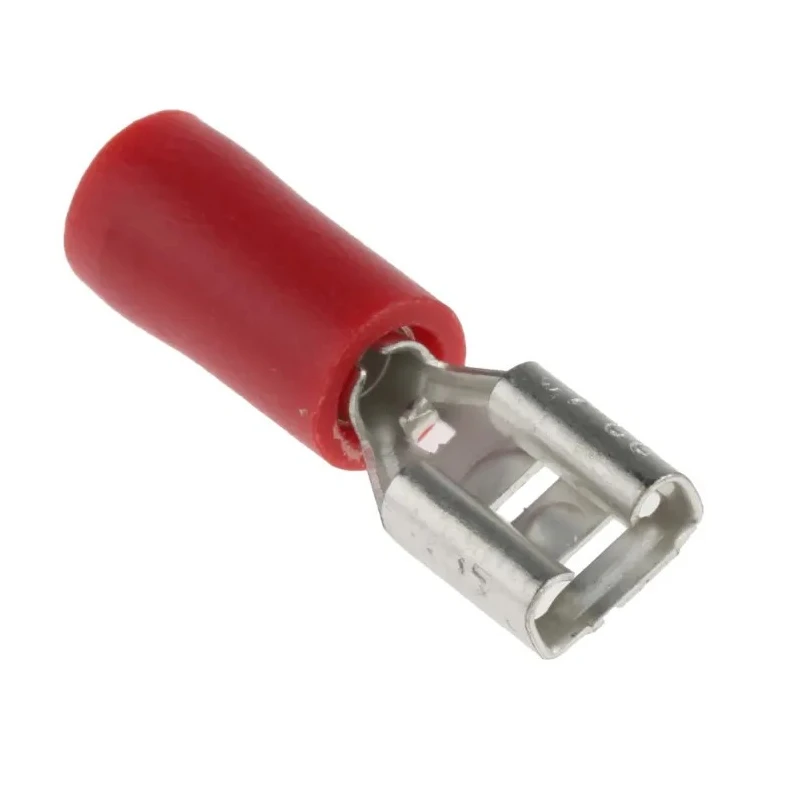

RS PRO Red Insulated Female Spade Connector Crimp, 4.8 x 0.8 mm Tab Size, 22 AWG to 16 AWG, Brass, Vinyl Insulation 534-395
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Orientation | Straight |
| Model | 534-395 |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 19mm |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Insulation Material | Vinyl |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Tab Width | 4.8mm |
| Tab Thickness | 0.8mm |
| Tab Size | 4.8 x 0.8 mm |
| 4.8X0.8 PUSH ON REDBrand | NEUTRAL |
Key Features
- Provides quick and secure connections for electrical circuits.
- Insulated design ensures safety against electric shock and prevents shorting.
- Fits stranded electrical wires from 0.5 mm² to 1.5 mm², 22 - 16 AWG.
- Internal copper sleeve and double crimp strengthen the joint and enhance durability.
- Tin-plated brass contacts for excellent conductivity and corrosion resistance.
- Color-coded red insulation makes terminal size identification easy.
- Funnelled vinyl insulation simplifies wire insertion for reliable crimping.
- Used in industrial controls, power supplies, HVAC, automotive, and domestic appliances.
Product Description
RS PRO 534-395 Red Insulated Female Spade Connector is an industrial-grade crimp terminal engineered for reliable electrical connections. This female spade connector features a 4.8 x 0.8 mm tab size, suitable for use with stranded wires from 0.5 mm² to 1.5 mm² (22 AWG to 16 AWG). Constructed with a tin-plated brass body and internal copper sleeve, the connector provides robust strength and secure crimping, delivering optimal conductivity.
Its vinyl insulation protects against electric shock and environmental contaminants, while color coding enables quick size identification. Designed for easy installation, the connector allows tool-free mating with compatible male blade connectors, streamlining maintenance and repair procedures.
The internal copper sleeve reinforces the barrel, ensuring a reliable and sturdy joint even under vibration or stress. Tin plating on the contact surfaces offers excellent resistance to corrosion and maintains effective electrical performance over time.
Industrially, this connector is ideal for automotive wiring, industrial control systems, machinery, communication equipment, power supplies, HVAC installations, and domestic appliances such as dishwashers, washing machines, and dryers.
RS PRO's funnelled insulation and double-crimp design simplify wire insertion and provide and maintain a strong crimp, minimizing risk of connection failure. The straight orientation supports easy integration into panel layouts, terminal blocks, and equipment wiring harnesses.
Quick and secure wire-to-wire or wire-to-tab connection for versatile applications. Insulated design reduces risk of accidental electrical contact and contamination. Double crimp and internal copper sleeve enhance mechanical strength and vibration resistance.
Tin-plated brass contacts ensure long-term conductivity and corrosion protection. Color-coded insulation streamlines terminal identification and selection during installation. Compatible with crimping tools for easy field service and assembly.
Suited for industrial automation, automotive, commercial, and domestic electronics. Reliable choice for maintenance, repair, and new installations. Explore more industrial connectors and wire terminal solutions from RS PRO in the Spade Connector category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The tab size of this female spade connector is 4.8 x 0.8 mm.
It is compatible with stranded electrical wires ranging from 0.5 mm² to 1.5 mm², which corresponds to 22 AWG to 16 AWG.
The contacts are made of brass and are tin-plated for enhanced conductivity and corrosion resistance.
It features vinyl insulation that provides protection against electric shock and environmental contaminants.
The overall length of this connector is 19 mm.
The connector has a straight orientation, which supports easy integration into panel layouts and wiring harnesses.
This connector uses a crimp termination type for secure connections.
It is suitable for various applications including automotive wiring, industrial control systems, HVAC installations, and domestic appliances like dishwashers and washing machines.
The connector includes an internal copper sleeve and a double crimp design that enhance mechanical strength and vibration resistance.
Yes, it allows tool-free mating with compatible male blade connectors, simplifying installation and maintenance.
The country of origin for this connector is Taiwan.
The insulation on this connector is red, which aids in terminal size identification.
