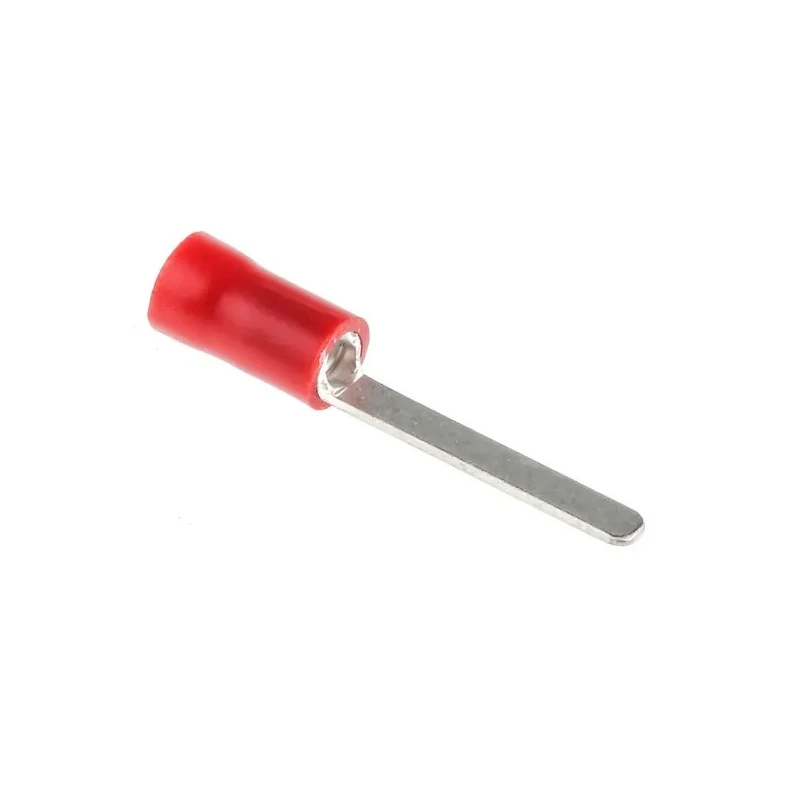

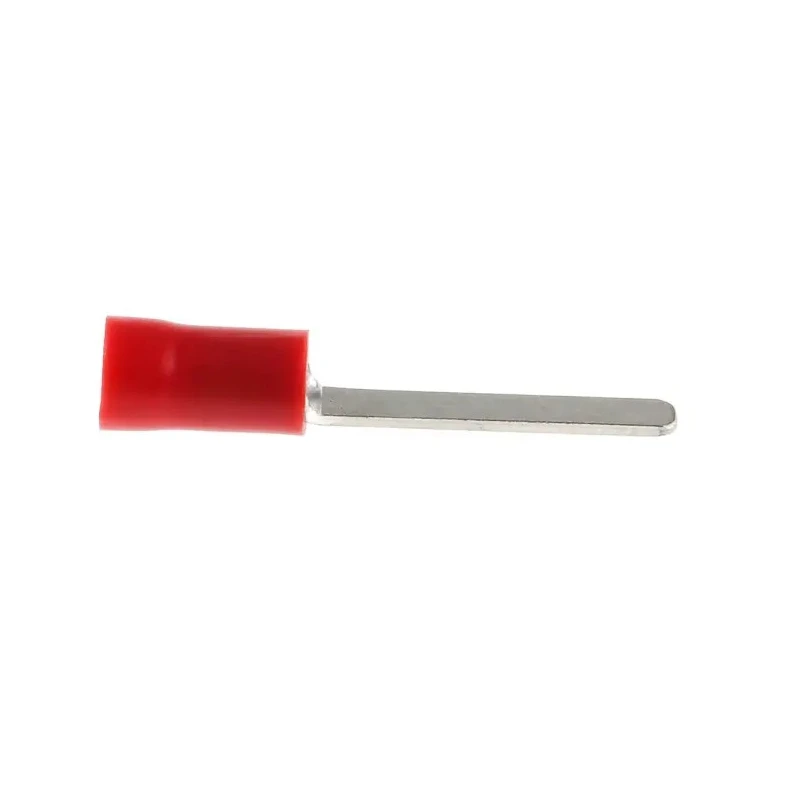

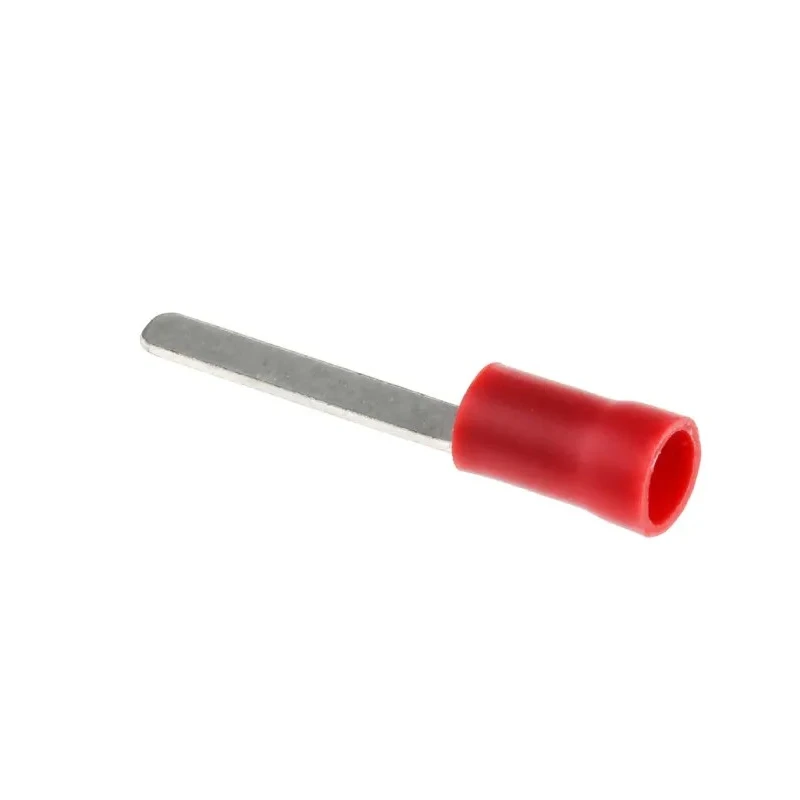

RS PRO Insulated Crimp Blade Terminal 17.6 mm Blade Length, 22 AWG to 16 AWG, Red 534-294
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| Model | 534-294 |
| Insulation | Insulated |
| Overall Length | 28mm |
| Contact Material | Copper |
| Blade Length | 17.6mm |
| Insulation Material | Vinyl |
| Inside Diameter | 4.3mm |
| Blade Width | 2.5mm |
| Blade Thickness | 0.8mm |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| CRIMP CONNS-FLAT BLADEBrand | NEUTRAL |
Key Features
- The blade length measures 17.6 mm ensuring precise fit and connection.
- Insulation is made from flared vinyl, colored red for wire gauge identification.
- The terminal accommodates wire sizes from 0.5 mm² (22 AWG) to 1.5 mm² (16 AWG).
- Copper contact material with tin plating provides durability and corrosion resistance.
- The overall length is 28 mm with blade width of 2.5 mm and thickness of 0.8 mm.
- Inside diameter of the terminal is 4.3 mm for secure wire insertion.
- Non-hooked, male gender terminal suitable for multiple electrical applications.
- Made for terminating stranded single-wire electrical connections without soldering.
Product Description
RS PRO 534-294 Insulated Crimp Blade Terminal is designed for secure and durable electrical terminations for wires ranging from 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²). The terminal features a blade length of 17.6 mm, which ensures a tight-fitting and reliable connection complementing a total overall length of 28 mm.
The copper contact material with tin plating provides excellent conductivity and corrosion resistance, while the vinyl insulation, colored red, offers protection against mechanical damage and easy wire size identification. The blade has a width of 2.5 mm and a thickness of 0.8 mm, with an inside diameter of 4.3 mm, suited for robust and dependable crimp connections.
This crimp Blade Terminal does not require soldering, streamlining installation processes in electrical circuits, control panels, and wiring harness assemblies. Its non-hooked male design supports numerous industrial and electrical applications including automation, power distribution, and general electrical maintenance.
The insulation material is vinyl, which flares to protect the connection point effectively. This product is manufactured in Taiwan, Province Of China, assuring quality production standards.
The blade length measures 17.6 mm ensuring precise fit and connection. Vinyl insulated with a red color coding for easy wire gauge identification. Supports wire sizes from 0.5 mm² (22 AWG) to 1.5 mm² (16 AWG). Copper construction with tin plating enhances durability and conductivity.
Overall length is 28 mm, blade width 2.5 mm, and thickness 0.8 mm. The inside diameter of 4.3 mm secures the wire firmly. Suitable for terminating stranded single-wire electrical connections without soldering. Non-hooked male terminal design for versatile use.
Ideal for electrical and industrial wiring applications. Explore more electronic components and connectors at EnvMart for your electrical assembly and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The blade length of this terminal is 17.6 mm, ensuring a precise fit and connection.
It accommodates wire sizes ranging from 0.5 mm² (22 AWG) to 1.5 mm² (16 AWG).
The overall length of the terminal is 28 mm.
The terminal features a copper contact material with tin plating and is insulated with vinyl.
The inside diameter of the terminal is 4.3 mm, which helps secure the wire firmly during installation.
The blade width is 2.5 mm and the thickness is 0.8 mm.
The insulation is colored red for easy wire gauge identification.
No, this terminal is designed for crimp connections and does not require soldering.
This terminal is manufactured in Taiwan, Province of China.
It features a non-hooked, male terminal design suitable for various electrical applications.
This terminal is suitable for terminating stranded single-wire electrical connections in various industrial and electrical applications.
The insulation material used is vinyl, which provides protection against mechanical damage.
