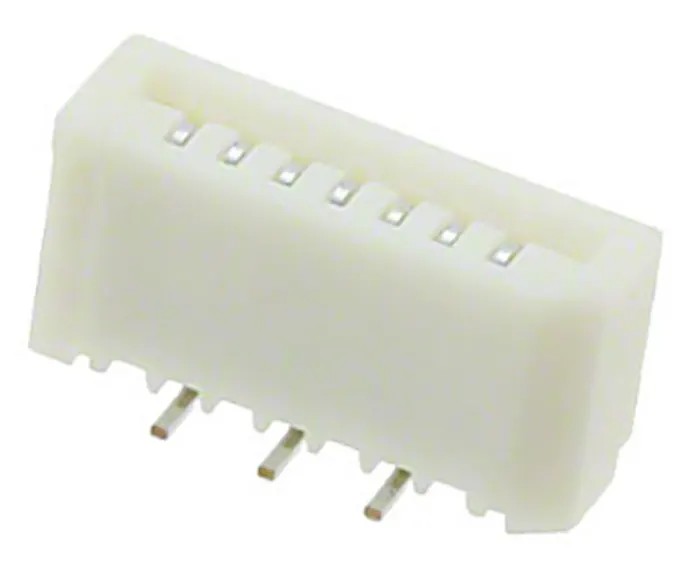

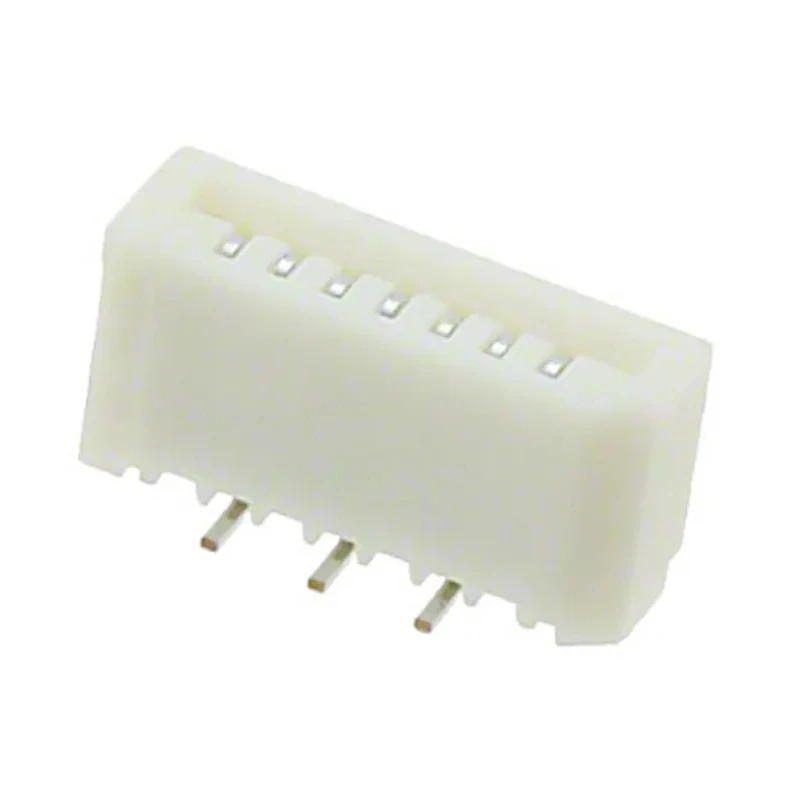

Molex 1 mm Pitch 7 Way Straight Female FPC Connector, Solder Termination, 500mA, 125V AC, Series 52808 52808-0770
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125, 125V ac |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Polysulfone |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin Bismuth over Nickel |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- This FPC connector features a space-saving 1 mm pitch design for compact PCB layouts.
- Phosphor bronze contacts with tin bismuth over nickel plating ensure excellent electrical conductivity and corrosion resistance.
- Housing made of durable polysulfone material provides high temperature and mechanical strength.
- Non-ZIF insertion force and locking mechanism secure stable and durable cable connection.
- Rated for a voltage of 125V AC and current up to 500mA for low power signal transmission.
- Operating temperature range from -20°C to 80°C supports varied environmental conditions.
- Single row with 7 contacts designed for easy solder termination on surface mount PCB.
- Chamfered housing facilitates correct connector orientation and reliable mating.
Product Description
Molex 52808-0770 is a high-quality 7 Way Straight Female FPC Connector designed for signal and data interconnection requiring compact, reliable connections on PCBs. This connector features a 1 mm pitch and easy-on FFC/FPC design optimized for solder termination in surface mount technology.
The connector contacts are made from phosphor bronze material with tin bismuth over nickel plating, providing excellent conductivity and durability. Its polysulfone housing material offers resistance to temperatures up to 80°C and mechanical stability needed in industrial or consumer electronic applications.
The design includes a locking mechanism and non-ZIF insertion force to ensure secure cable retention and stable electrical contact under vibration or handling. The staggered contact placement facilitates soldering processes during PCB assembly.
Operating voltage of 125V AC and current rating of 500mA make this connector ideal for low power, high-density wiring harnesses across automotive, medical, datacommunications, mobile phones, and consumer electronics.
Its compact single-row construction with 7 contacts supports complex wiring harness requirements where space saving is critical. The chamfered housing ensures correct orientation and easy mating of FPC cables, minimizing assembly errors.
This FPC connector supports applications including automotive navigation systems, smartphones, tablets, patient monitors, digital cameras, and security devices. The product is manufactured in Malaysia to Molex quality standards and meets RoHS compliance requirements.
Packaged on reels to improve production line efficiency, it is supplied ready for automated machinery insertion.
Choose Molex 52808-0770 for precise, durable connections in demanding industrial, laboratory, consumer, and automotive electronic assemblies. Explore more FPC Connectors and related components at EnvMart for comprehensive interconnect solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for a voltage of 125V AC and a current of up to 500mA.
The operating temperature range for this connector is from -20°C to 80°C.
The contacts are made from phosphor bronze with tin bismuth over nickel plating, while the housing is constructed from polysulfone material.
This connector features a single row with 7 contacts.
It utilizes solder termination, making it suitable for surface mount technology.
The pitch size of this connector is 1 mm, which supports compact PCB layouts.
Yes, this model includes a locking mechanism and non-ZIF insertion force to ensure secure cable retention.
This connector is manufactured in Malaysia to Molex quality standards.
The orientation of this connector is straight, designed for easy mating with FPC cables.
It is packaged on reels to improve production line efficiency and is supplied ready for automated machinery insertion.
