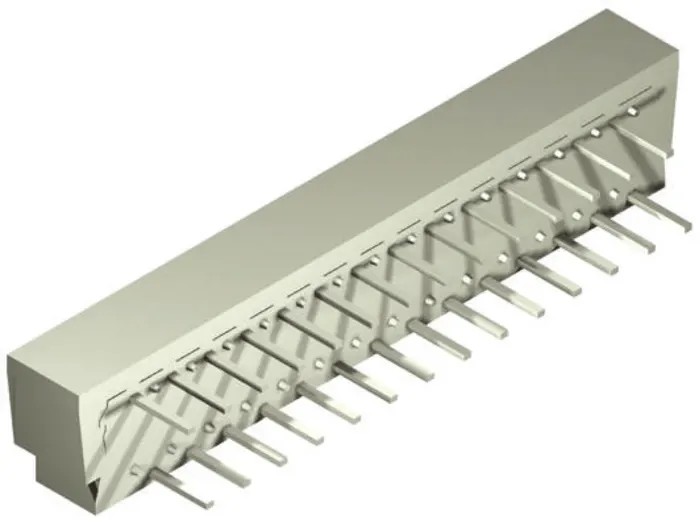

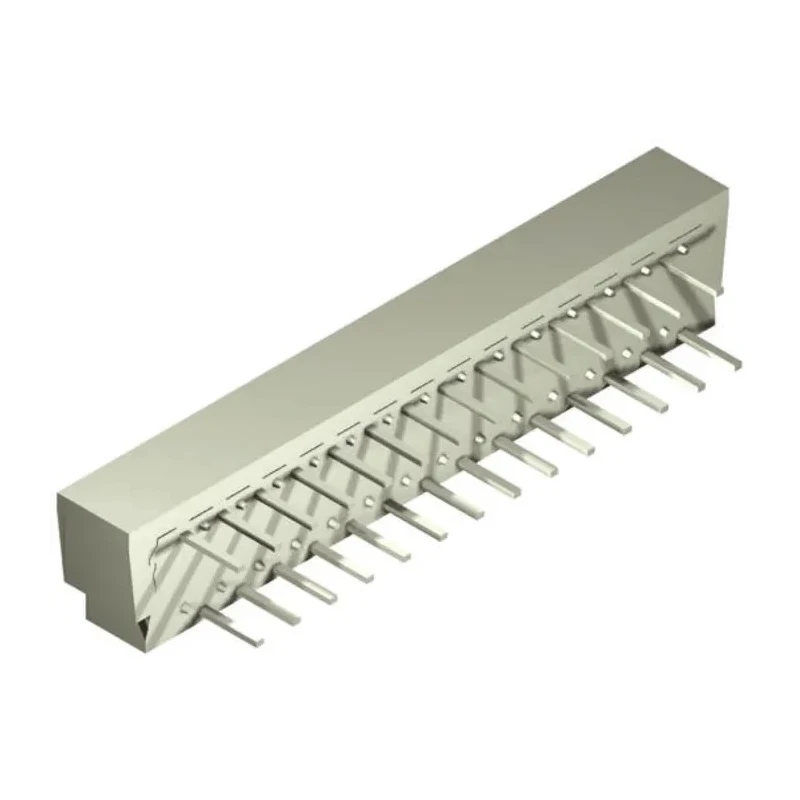

Molex 1.25 mm Pitch 5 Way Right Angle Female FPC Connector, Solder 39-53-2054

Molex 39-53-2054 Right Angle Female FPC Connector is a high-quality 5597 series ZIF PCB through hole mount connector featuring a 1.25 mm pitch and 5 contacts designed for reliable signal and power transmission in compact electronic assemblies. This connector's right angle orientation and space-saving profile make it perfect for use in tightly packed circuit board layouts.

The connector utilizes phosphor bronze contacts plated with tin bismuth over nickel, ensuring excellent conductivity and corrosion resistance. The durable polybutylene terephthalate housing provides mechanical strength and stability under varied industrial conditions. The Zero Insertion Force (ZIF) slide type actuator facilitates easy insertion and removal of flexible printed circuits without causing contact damage, enabling repeat cycles with minimal wear.

Designed for through hole mounting and solder termination, this connector provides robust electrical and mechanical connections. It is rated for a maximum operating voltage of 200 V and a maximum current of 1 A, suitable for many low power electronic and automotive uses. The range of operating temperatures from -20°C to 80°C allows for stable performance in harsh environments.

Additional features include the locking mechanism for secure cable retention and staggered solder tails enhancing solder joint reliability. This 5597 series connector is widely used in industrial electronics, automotive controls, telecommunications equipment, and other applications demanding miniaturized and reliable interconnections.

Its compact size and efficient design support modern manufacturing requirements such as automated PCB assembly and high-density board layouts.

This right angle female FPC connector is a precise component for use in commercial, automotive, industrial, and electronics manufacturing sectors where dependable flexible circuit connections are critical.

Features a 1.25 mm pitch and 5 contact points for precise signal transmission. Right angle orientation optimizes PCB layout in space constrained applications. Constructed with phosphor bronze contacts plated with tin bismuth over nickel for durability.

Housing made from polybutylene terephthalate providing excellent mechanical stability. Zero Insertion Force (ZIF) mechanism enables repeated mating cycles without contact wear. Maximum operating voltage of 200 V and current rating of 1 A guarantee safe operation.

Suitable for through-hole mounting with solder termination ensuring secure connectivity. Stable operation over temperature range from -20°C to 80°C. Includes locking mechanism to secure connection integrity. Compact design ideal for automotive and electronic applications requiring space savings.
