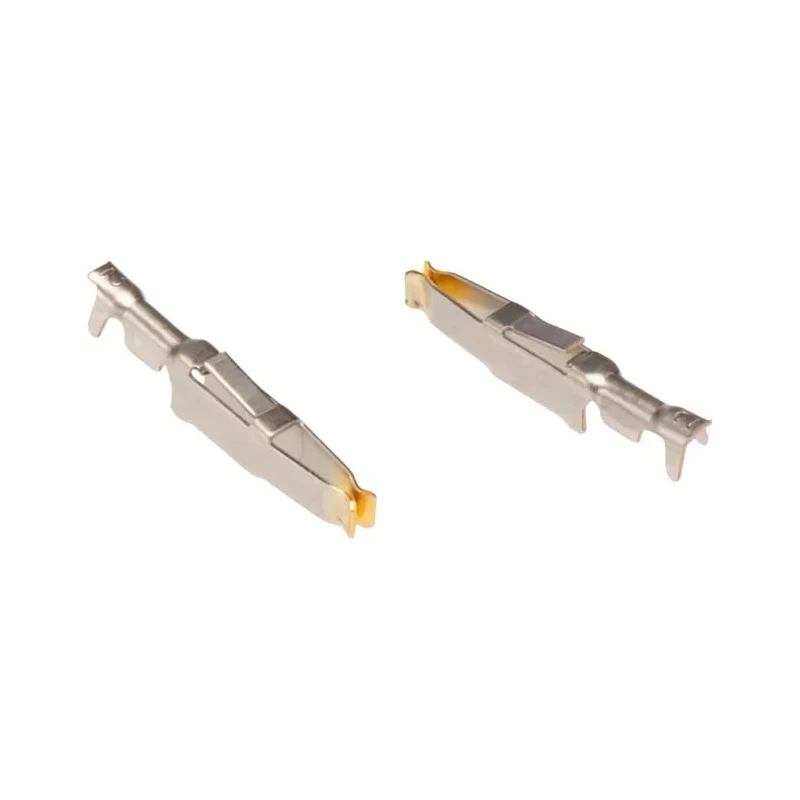

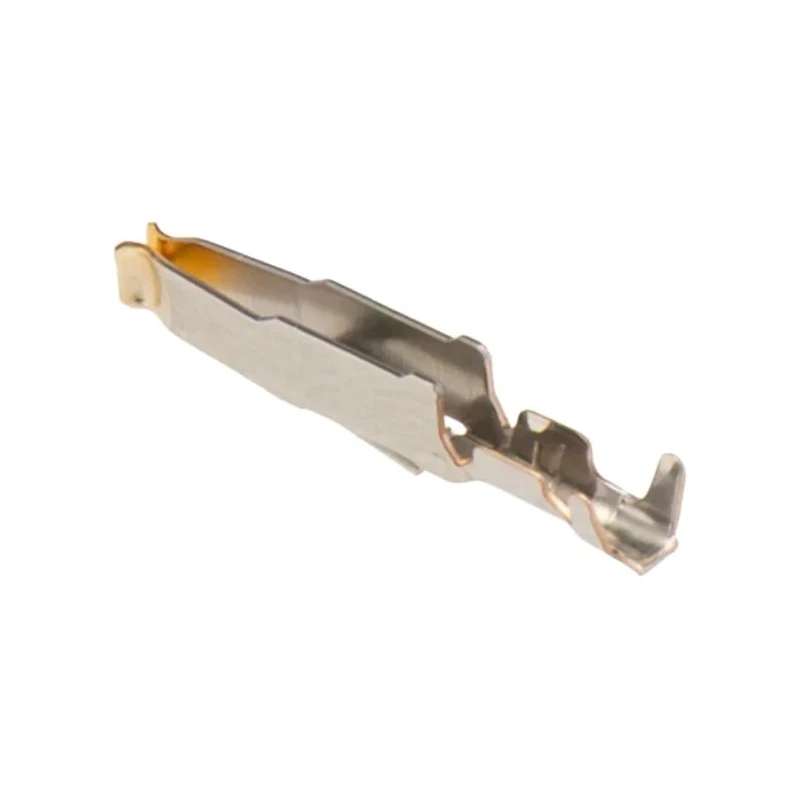

HARTING Backplane Connector Contact, Straight Female, Tin-Plated Copper Alloy, 6A Current, Crimp Termination 09060008471
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 6A |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | 09 06 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Wire size | 0.14, 0.56mm² |
| For Use With | DIN41612 Type F Female Connector, DIN41612 Type D Female Connector, DIN41612 Type E Female Connector |
| Contact Plating | Tin |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Tinned copper alloy material ensures corrosion resistance and reliable conductivity.
- Compatible with DIN41612 Type F, D, and E female connectors.
- Supports wire sizes from 0.14 mm² to 0.56 mm² for flexible wiring.
- Maximum operating temperature of 125 °C suitable for elevated thermal conditions.
- Low contact resistance at 20 mΩ reduces voltage drop and heating.
- Crimp termination provides secure and stable electrical connection.
- Durable design ideal for industrial backplane applications and rack connectors.
Product Description
HARTING 09060008471 is a high-quality backplane connector contact featuring a straight female design with tin-plated copper alloy material. It supports continuous current up to 6 amperes, making it suitable for industrial control and electronic equipment interfacing.
This crimp termination contact fits DIN41612 Type F, D, and E female connectors, providing a reliable interface in backplane and rack-mounted assemblies. The tin plating reduces oxidation and maintains consistent conductivity over time.
It accepts stranded or solid conductors ranging from 0.14 mm² to 0.56 mm², allowing for flexible wiring options. The contact maintains low resistance of 20 milliohms, minimizing power loss and thermal buildup under load.
With a maximum operating temperature rating of 125 °C, this component withstands elevated thermal environments common in industrial settings. Its straight orientation simplifies installation into mating female housings, ensuring secure connectivity and easy maintenance.
Tin plating resists corrosion for long-term reliable performance. Copper alloy core supports stable 6A current ratings for signal and low power circuits. Crimp termination compatible with precise conductor sizes enhances electrical integrity.
Low maximum contact resistance reduces voltage drop in critical backplane systems. High temperature tolerance suitable for demanding industrial electronics applications. Designed for use in DIN41612 female connector repair, rebuild, and maintenance.
Ideal for industrial backplane crimp terminations within control racks and panel systems.
This product is manufactured in Germany, ensuring strict quality control and compliance with industrial manufacturing standards. It is a new, unused component ready for immediate integration.
Explore a wide range of HARTING Backplane Connector Contacts and related industrial connector solutions within our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This backplane connector contact supports a maximum continuous current of 6 amperes.
It accepts stranded or solid conductors ranging from 0.14 mm² to 0.56 mm², allowing for flexible wiring options.
This contact is compatible with DIN41612 Type F, D, and E female connectors.
The maximum operating temperature for this model is 125 °C, suitable for elevated thermal conditions.
The contact is made from tin-plated copper alloy, which ensures corrosion resistance and reliable conductivity.
This model features a straight orientation, which simplifies installation into mating female housings.
The maximum contact resistance is 20 milliohms, which helps minimize power loss and thermal buildup under load.
It utilizes a crimp termination type, providing a secure and stable electrical connection.
The minimum operating temperature is -55 °C, making it suitable for a wide range of environments.
This backplane connector contact is manufactured in Germany, ensuring strict quality control and compliance with industrial standards.
This model belongs to the 09 06 series of backplane connector contacts.
It is designed for use in industrial backplane applications and rack-mounted assemblies, particularly for control and electronic equipment interfacing.
