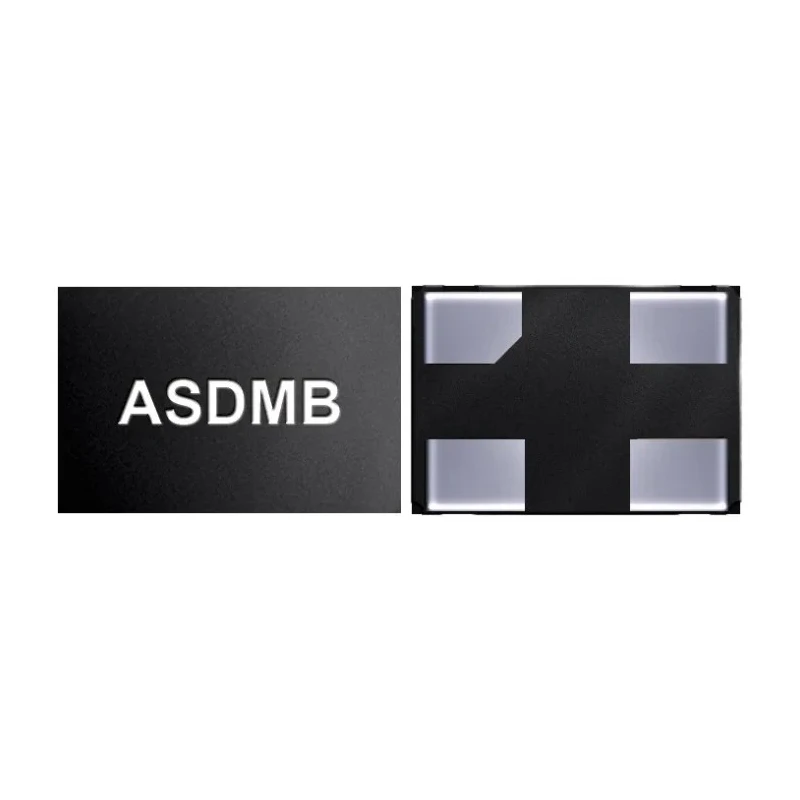

Abracon 100 MHz MEMS Oscillator 4-Pin Surface Mount ±10 ppm ASDMB-100.000MHZ-XY-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 100 MHz MEMS Oscillator 4-Pin Surface Mount ±10 ppm ASDMB-100.000MHZ-XY-T

Name: Abracon 100 MHz MEMS Oscillator 4-Pin Surface Mount ±10 ppm ASDMB-100.000MHZ-XY-T
Brand: Abracon
SKU: 177937
Price: 4.54 USD
Availability: InStock



Category MEMS Oscillators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.85mm
Length	2.5mm
Model	ASDMB-100.000MHZ-XY-T
Packaging	Tape & Reel
Width	2mm
Mount Type	Surface
Series	ASDMB
Maximum Operating Temperature	105°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Maximum Output Frequency	100MHz
Standards/Approvals	RoHS/RoHS II
Pin Count	4
Output Level	LVCMOS
Maximum Operating Supply Voltage	3.3V
Minimum Operating Supply Voltage	1.8V

Key Features

Maximum output frequency of 100 MHz delivers precise timing for electronic applications.
Surface mount package with 4 pins allows easy PCB integration.
Wide operating temperature range from -40°C to 105°C supports harsh industrial environments.
Operates at low power, ideal for portable and consumer electronics.
LVCMOS output level ensures compatibility with modern digital circuits.
Compact dimensions of 2.5mm length, 2mm width and 0.85mm height enable space-saving designs.
RoHS and RoHS II compliant, ensuring environmentally safe manufacturing.
Suitable for applications in industrial, automotive, military, consumer, and portable electronics.

Product Description

The Abracon ASDMB-100.000MHZ-XY-T MEMS Oscillator is a high-precision, low-power clock source designed for diverse electronic applications requiring stable and reliable timing. This 100 MHz oscillator features a 4-pin surface mount package that measures 2.5mm in length, 2mm in width, and 0.85mm in height, providing a compact solution for PCB layouts with space restrictions.

Operating reliably over a wide temperature range from -40°C to 105°C, this device is suitable for both industrial and automotive environments that demand resilience against vibration, shock, and temperature variations. The oscillator supports a supply voltage range from 1.8V to a maximum of 3.3V, which contributes to its low power consumption profile, making it ideal for battery-operated and portable devices.

The output utilizes LVCMOS logic levels, ensuring compatibility with a broad range of digital electronics, including computers, peripherals, and consumer devices such as MP3 players, gaming consoles, TVs, and DVRs. Its excellent frequency stability of ±10 ppm guarantees accurate clock timing crucial for communication, data processing, and control systems.

This oscillator is manufactured adhering to RoHS and RoHS II standards, underscoring its compliance with environmental and safety regulations. The product is not certified for automotive standard usage but is robust enough for demanding military and industrial scenarios.

Typical applications include CCD clocking for VTR cameras, low-profile equipment, computer peripherals, and other devices operating in shock-prone, humid, or otherwise challenging environments.

Maximum output frequency: 100 MHz. Four-pin surface mount package. Frequency stability: ±10 ppm. Operating temperature: -40°C to 105°C. Power supply voltage range: 1.8V to 3.3V. Output level: LVCMOS. Compact dimensions: 2.5mm x 2mm x 0.85mm.

RoHS and RoHS II compliant.

This MEMS Oscillator is a reliable timing source suitable for industrial, laboratory, construction, and commercial electronic applications. Explore more MEMS Oscillators at EnvMart for similar high-quality electronic components.
