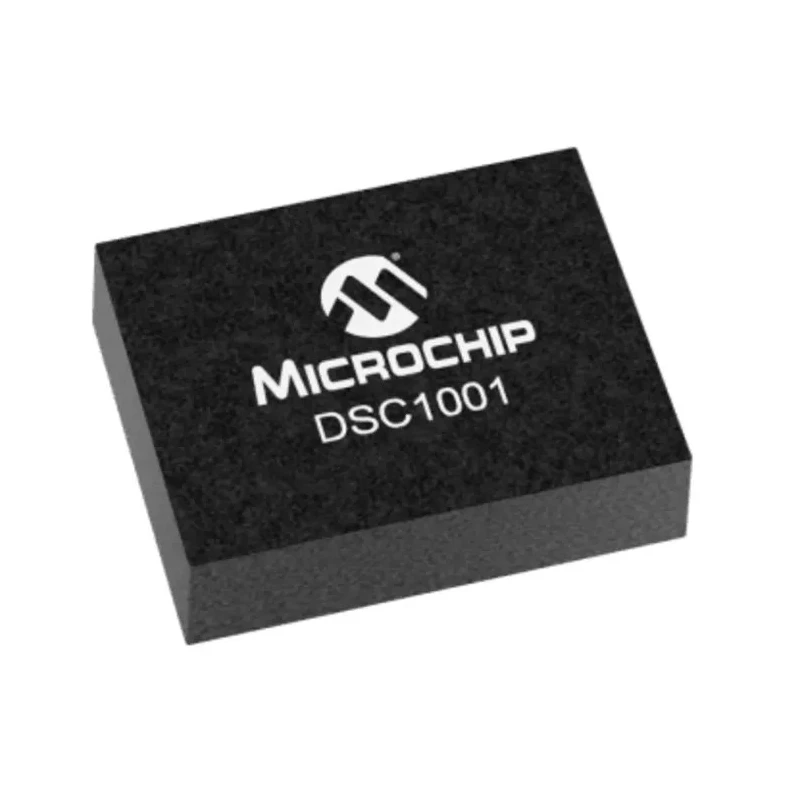

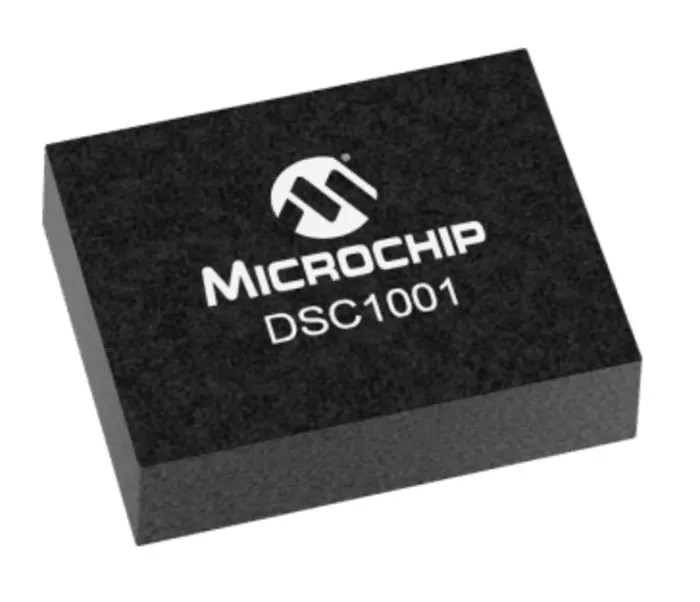

Microchip 24.576 MHz MEMS Oscillator, 4-Pin CDFN Package, Surface Mount, ±25 ppm Frequency Stability DSC1001CI2-024.5760

Microchip DSC1001CI2-024.5760 is a silicon MEMS-based CMOS oscillator delivering a stable 24.576 MHz frequency output in a 4-Pin CDFN surface mount package.

It features an exceptional frequency stability tolerance of ±25 ppm and operates across a wide voltage range of 1.7 to 3.6 volts, making it suitable for diverse electronic applications requiring precise timing.

The oscillator is designed with an all-silicon resonator that is highly resistant to mechanical stress and vibration, surpassing traditional crystal oscillators in durability.

Operating temperature range from -40°C to 85°C allows usage in automotive and harsh industrial environments, backed by compliance with automotive standard AEC-Q100 as well as EN, RoHS, JEDEC, and ISO certifications.

With low power consumption - 6 mA at 1 MHz operating current and 15 μA maximum standby current - it is optimized for energy-efficient designs. Maximum output frequency of 24.576 MHz with CMOS level output. Compact footprint: 3.2 mm (L) x 2.5 mm (W) x 0.85 mm (H).

Wide operating voltage range from 1.7 V to 3.6 V. Frequency stability ±25 ppm ensures accurate timing. Certified to AEC-Q100 automotive standard for reliability. Low operating and standby current for power-sensitive applications.

Enhanced mechanical robustness with MEMS-based resonator technology. Packaged in tube for ease of handling and assembly.

This MEMS oscillator is well suited for automotive automotive electronics, industrial controllers, telecommunications equipment, and other precision timing applications requiring stable and reliable clock sources.
