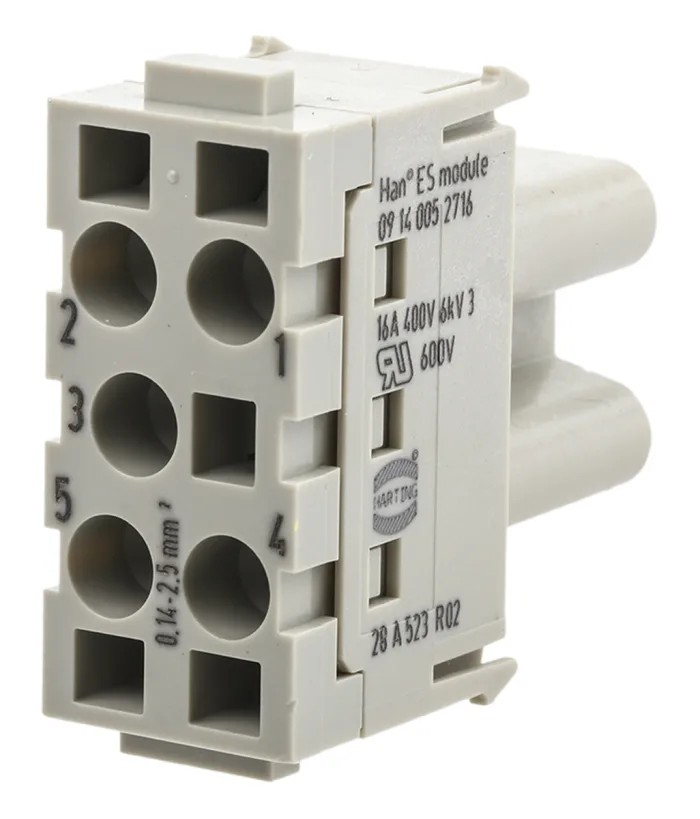

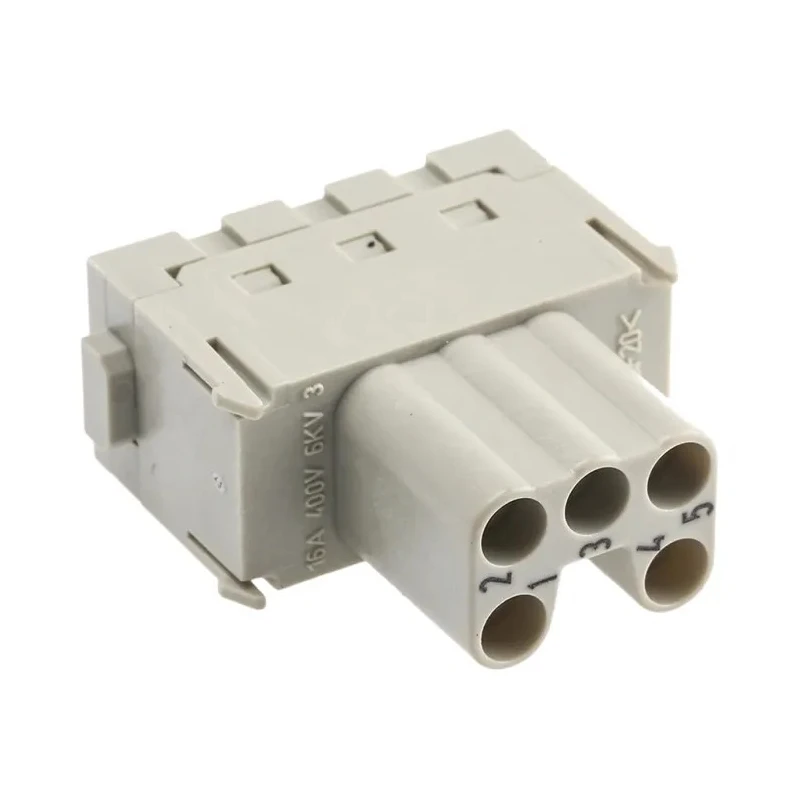

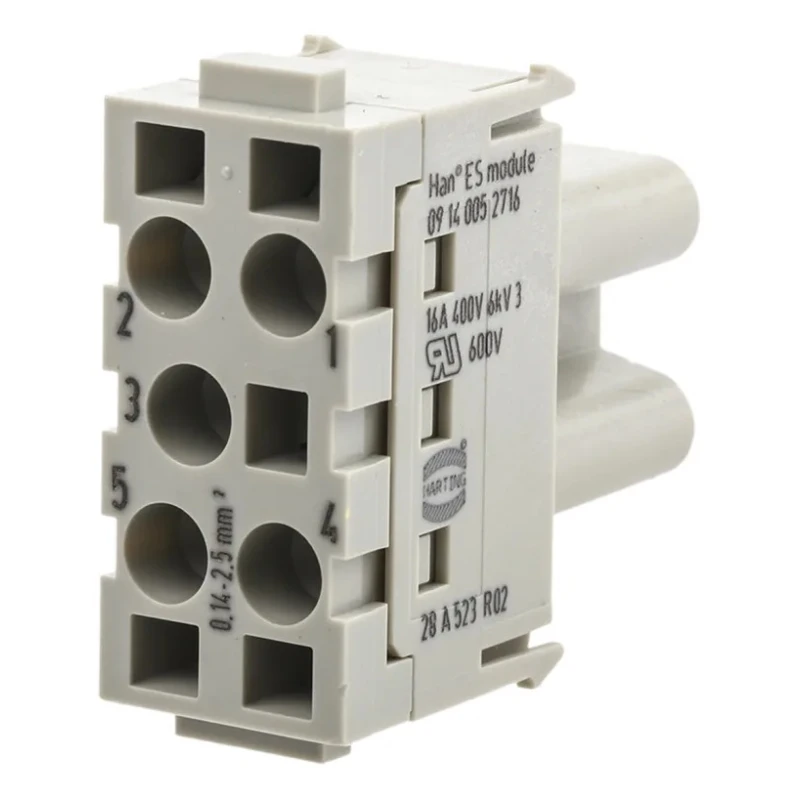

HARTING Heavy Duty Power Connector Module 16A HAN Modular Series Female 5 Contacts 09140052716
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | HARTING |
| Orientation | Straight |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Current Rating | 16A |
| Series | HAN Modular |
| Sub Type | Connector Module |
| Number of Rows | 2 |
| For Use With | Heavy Duty Power Connector |
| Pole Format | 5 |
| Contact Plating | Silver |
| Number of Contacts | 5 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.14mm² |
| Maximum Wire Size mm² | 2.5mm² |
Key Features
- The connector operates at a voltage rating of 400V for industrial applications.
- It features a straight orientation and a cable mount type for secure wiring.
- Contacts are plated with silver and made of copper alloy for excellent conductivity.
- Supports wire sizes ranging from 0.14mm² to 2.5mm², accommodating 26 to 14 AWG wires.
- Constructed with robust materials suitable for heavy duty power connections.
- Modular system allows configuration flexibility within standard Han housings.
- Designed for over 500 mating cycles ensuring durability in repeated use.
- Manufactured in Germany with stringent quality standards.
Product Description
HARTING 09140052716 Heavy Duty Power Connector Module is a female connector module from the HAN Modular series, designed for heavy duty power connector assemblies. Rated for 16 amperes and supporting 400 volts, this connector features 5 contacts arranged in a 2-row pole format. It is engineered to provide secure and reliable cable connections in industrial, manufacturing, and electrical applications.
The contact material is a copper alloy with silver plating, ensuring excellent electrical conductivity and durability. The connector supports wire sizes from 0.14mm² to 2.5mm², suitable for wire gauges ranging from 26 to 14 AWG, making it versatile for various wiring requirements.
This module is designed for a straight orientation with a cable mount type, making installation straightforward. The Han-Modular system allows individual insert modules to fit into frames and standard Han housings, providing flexible configurations for signal, power, and pneumatic lines as needed.
The connector is rated for a minimum of 500 mating cycles, confirming its suitability for applications involving frequent connection and disconnection. Manufactured in Germany, it meets high manufacturing quality and reliability standards.
These connectors should not be mated or unmated under electrical load to prevent damage. Proper polarization is recommended to avoid incorrect connections, especially when arranged in series.
The connector operates at a voltage rating of 400V for industrial applications. It features a straight orientation and a cable mount type for secure wiring. Contacts are plated with silver and made of copper alloy for excellent conductivity.
Supports wire sizes ranging from 0.14mm² to 2.5mm², accommodating 26 to 14 AWG wires. Constructed with robust materials suitable for heavy duty power connections. Modular system allows configuration flexibility within standard Han housings.
Designed for over 500 mating cycles ensuring durability in repeated use. Manufactured in Germany with stringent quality standards.
Ideal for industrial, manufacturing, electrical distribution, and automation sectors requiring reliable power connectors. Explore the Electronics Components section for more HARTING connectors and modules suitable for various technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a voltage rating of 400V, making it suitable for industrial applications.
It has a current rating of 16A, allowing it to handle substantial electrical loads in various applications.
This model features 5 contacts arranged in a 2-row pole format, designed for secure connections.
It supports wire sizes ranging from 0.14mm² to 2.5mm², accommodating wire gauges from 26 to 14 AWG.
This connector features a cable mount type, allowing for straightforward installation and secure wiring.
The connector is designed with a straight orientation, facilitating easier integration into existing setups.
The contacts are made of copper alloy and are plated with silver, ensuring excellent electrical conductivity.
It is designed for a minimum of 500 mating cycles, confirming its suitability for frequent connections and disconnections.
This model is manufactured in Germany, adhering to stringent quality standards.
It belongs to the HAN Modular series, which allows for flexible configurations within standard Han housings.
It is ideal for industrial, manufacturing, electrical distribution, and automation sectors requiring reliable power connections.
It is recommended not to mate or unmate the connector under electrical load to prevent damage, and proper polarization should be observed.
