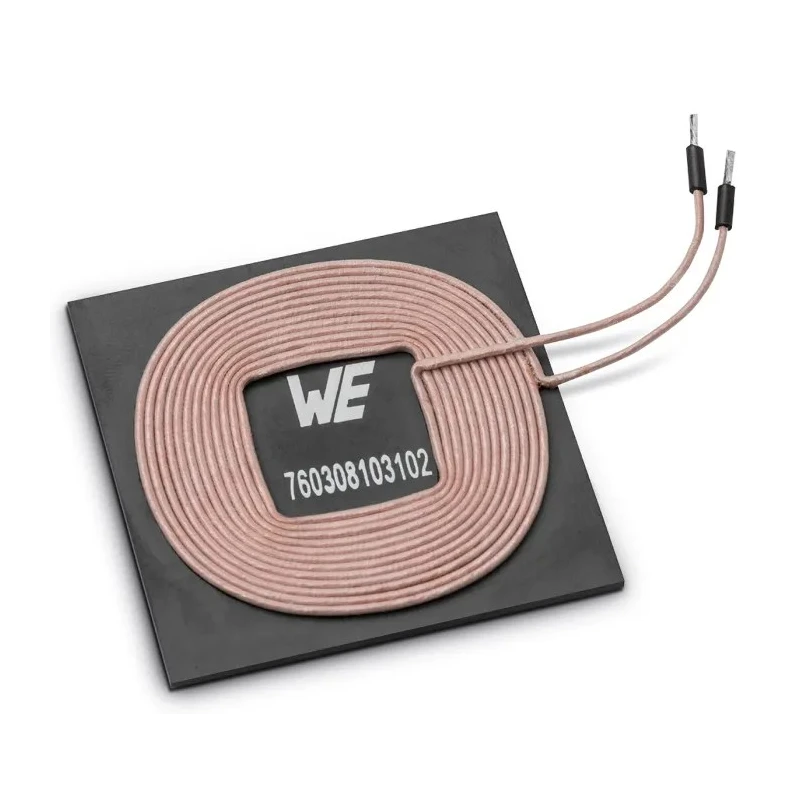

Wurth Elektronik WE-WPCC Wireless Charging Coil Transmitter 7 A, 10 μH, 48 mm Diameter 760308103102
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 48mm |
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Function | Transmitter |
| Length | 53mm |
| Width | 53mm |
| Mount Type | Axial |
| Series | WE-WPCC |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -20°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 7A |
| Maximum DC Resistance | 55mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial |
| Maximum Self Resonant Frequency | 11MHz |
| Minimum Quality Factor | 130 |
Key Features
- Features a ferrite core material for efficient magnetic field concentration.
- Axial mount type suitable for various PCB configurations.
- Operates reliably between -20°C and 105°C temperatures.
- Ensures low DC resistance of 55 mΩ for minimizing power loss.
- Supports a high quality factor minimum of 130 for outstanding performance.
- Complies with RoHS standards for environmental safety.
- Compact dimensions with 53 mm length, 53 mm width, and 4.5 mm height.
- Employs radial termination style appropriate for wireless charging transmitter applications.
Product Description
Wurth Elektronik 760308103102 Wireless Charging Coil Transmitter is engineered for Qi wireless power transfer technology, delivering efficient and reliable performance at 7 A maximum DC current and 10 μH inductance. This coil features a ferrite core material that efficiently concentrates magnetic fields, optimizing wireless charging effectiveness for portable electronic devices.
Equipped with an axial mount and radial termination style, the coil fits secure and precise PCB assembly requirements. It operates within a broad temperature range from -20°C to 105°C, ensuring durability in demanding thermal environments.
The coil maintains a low DC resistance of 55 mΩ and a minimum quality factor of 130, contributing to superior energy efficiency and minimal power loss. With a maximum self-resonant frequency of 11 MHz and an inductance tolerance of ±10%, it delivers stable inductive properties suitable for wireless power applications.
Designed according to the WE-WPCC series, this transmitter coil meets RoHS environmental compliance standards. It boasts compact physical dimensions of 53 mm length, 53 mm width, 4.5 mm height, and a diameter of 48 mm, fitting seamlessly into various electronic designs.
Features a ferrite core material for effective magnetic field shaping. Supports axial mounting with radial terminations for secure connectivity. Broad operating temperature range from -20°C to 105°C for versatile applications.
Low DC resistance of 55 mΩ reduces energy losses during operation. High minimum quality factor of 130 ensures efficient wireless power transfer. Compliant with RoHS directives supporting environmental safety. Compact design suitable for portable and industrial devices.
This Wireless Charging Coil transmitter is ideal for industrial, commercial, and consumer electronic applications requiring reliable, contactless energy transfer. It suits devices like fitness trackers, smart watches, and smart sensors, especially in environments where connector usage may cause contamination or mechanical wear.
Explore a broad range of electronic components and industrial-grade wireless charging solutions in the Wurth Elektronik range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum DC current of 7 A.
The inductance value of this coil is 10 μH with an inductance tolerance of ±10%.
The coil has dimensions of 53 mm in length, 53 mm in width, and 4.5 mm in height, with a diameter of 48 mm.
It operates reliably within a temperature range of -20°C to 105°C.
The coil features a ferrite core material that efficiently concentrates magnetic fields for effective wireless charging.
This model has a minimum quality factor of 130, contributing to its efficient performance.
The maximum self-resonant frequency of this coil is 11 MHz.
It features an axial mount type, suitable for various PCB configurations.
The coil employs a radial termination style appropriate for secure connectivity.
Yes, it complies with RoHS standards for environmental safety.
It is suitable for industrial, commercial, and consumer electronic applications requiring reliable, contactless energy transfer, such as fitness trackers and smart watches.
The country of origin for this product is China.
