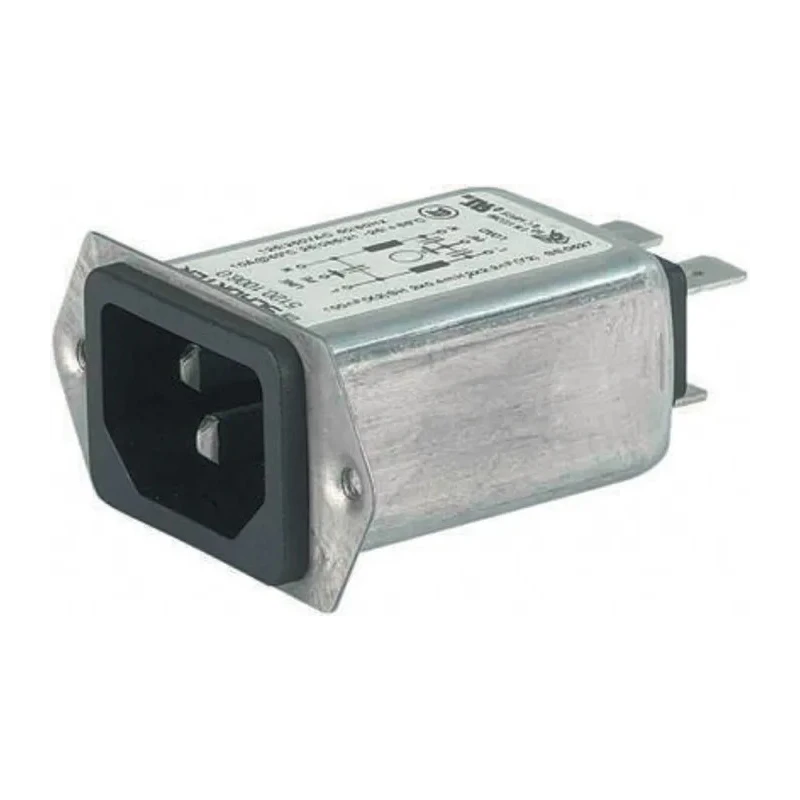

Schurter Panel Mount IEC Connector Male with Line Filter, Quick Connect, 250V AC, 4A, C14, 5120.1003.0
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Brand | Schurter |
| Current | 4A |
| Height | 24.6mm |
| Filter Type | Line |
| Depth | 54.5mm |
| Width | 48.6mm |
| Mount Type | Panel Mount |
| Operating Frequency | 60Hz |
| Termination Type | Quick Connect |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Gender | Male |
| Connector Gender | Male |
| Fuse Size | 5 x 20 mm |
| IEC Connector Type | C14 |
| Quick connect terminals | 6.3 x 0.8 mm |
Key Features
- Panel mount IEC connector with integrated line filter for reliable power interface.
- Rated for 250V AC voltage and 4A current to suit industrial and electronic equipment.
- C14 male connector form compatible with standard IEC appliance inlet formats.
- Quick connect terminals (6.3 x 0.8 mm) facilitate easy and secure installation.
- Supports fuse size 5 x 20 mm for convenient safety integration.
- Operating frequency of 60Hz ensures suitability for most mains environments.
- Wide operating temperature range from -25°C to 85°C for robust use.
- Ultra-compact design with closed filter case for high performance filtering.
Product Description
Schurter 5120.1003.0 is a high-quality panel mount IEC connector featuring a C14 male inlet and integrated line filter. It is engineered to provide reliable power interfacing and noise suppression, making it ideal for industrial, laboratory, commercial, and electronic equipment requiring secure mains connectivity.
This connector is rated for 250V AC and supports a maximum current of 4A, ensuring compatibility with a wide range of electrical systems. The C14 male configuration fits universally into IEC appliance inlets found in power distribution units and devices.
The device incorporates quick connect terminals sized at 6.3 x 0.8 mm, simplifying and speeding up installation, with robust physical structure to endure frequent insertion and removal. Its compact panel-mount design conserves equipment space and allows seamless integration into equipment panels.

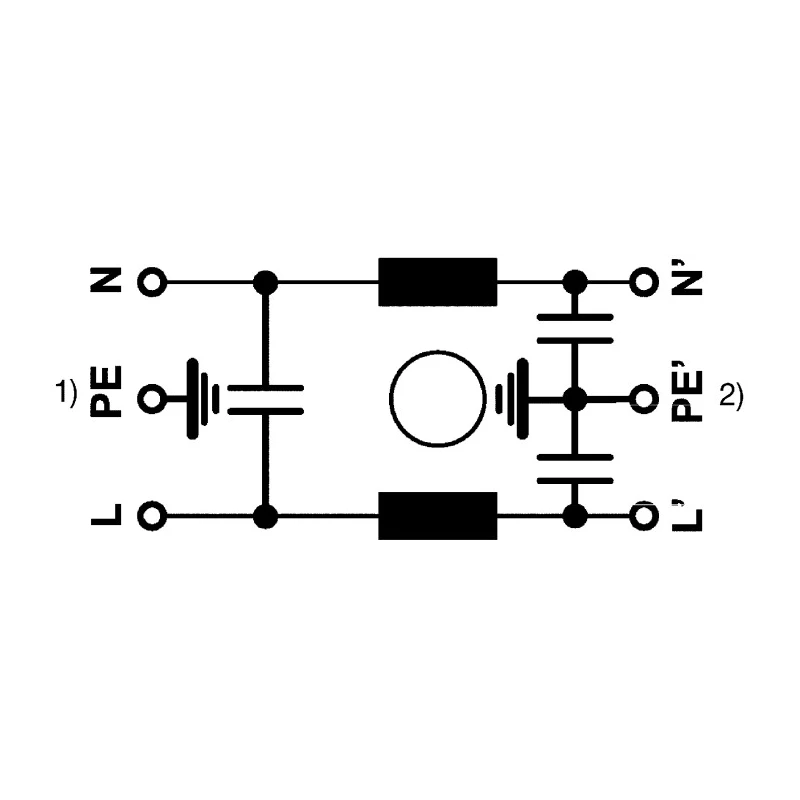

A line filter is fully enclosed within the connector's housing, delivering high performance filtering to reduce electromagnetic and radio frequency interference, crucial for maintaining equipment signal integrity in demanding environments. The fuse slot accepts 5 x 20 mm fuses, further strengthening device protection and safety; please note the fuse drawer is not included and must be ordered separately.
Designed for versatility, this connector operates at 60Hz mains frequency and maintains performance across a wide temperature span from -25°C to 85°C. The 5120 series supports both standard and medical versions, making it suitable for various regulated applications.
Schurter's range of panel mount IEC inlet plugs with integral mains filters are known for their ultra-compact designs, robust construction, and reliability in continuous operation, making them a preferred choice in commercial and industrial power systems, laboratory setups, manufacturing facilities, and HVAC units.
Explore more Electrical Connectors and industrial components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for 250V AC and supports a maximum current of 4A, making it suitable for a wide range of electrical systems.
It features a C14 male connector type, which is compatible with standard IEC appliance inlets.

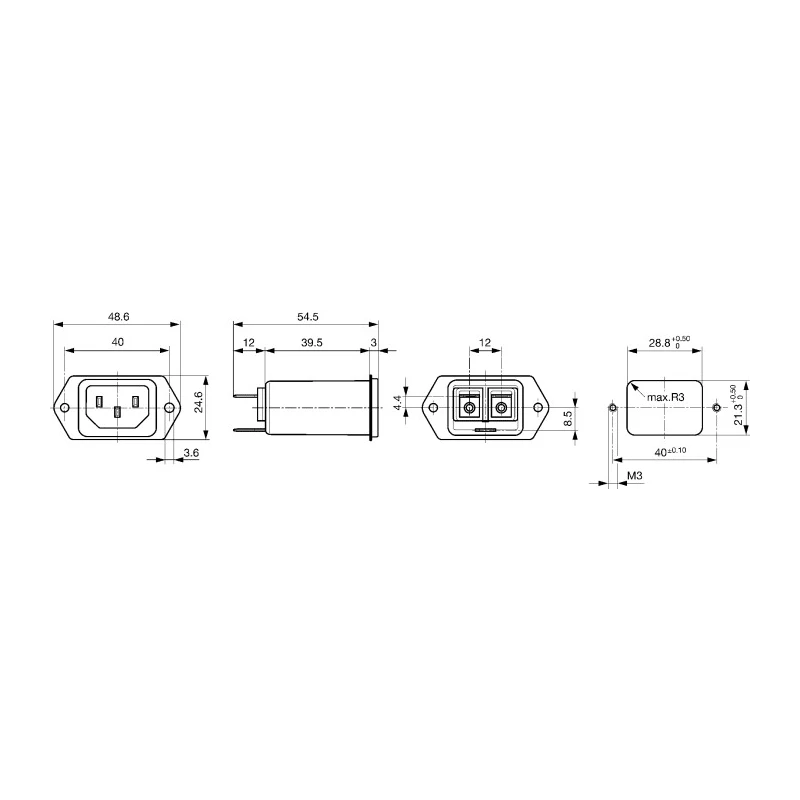

The dimensions are 24.6mm in height, 48.6mm in width, and 54.5mm in depth.
It operates within a temperature range of -25°C to 85°C, allowing for robust use in various environments.
It utilizes quick connect terminals sized at 6.3 x 0.8 mm for easy and secure installation.
The connector supports a fuse size of 5 x 20 mm, but the fuse drawer is not included and must be ordered separately.
It operates at a frequency of 60Hz, which is standard for most mains environments.
This model features an integrated line filter designed to reduce electromagnetic and radio frequency interference.
It is designed for panel mount installation, allowing for seamless integration into equipment panels.
It is ideal for industrial, laboratory, commercial, and electronic equipment requiring secure mains connectivity.
The country of origin for this connector is India.
The integrated line filter enhances signal integrity by reducing noise, making it suitable for demanding environments.
