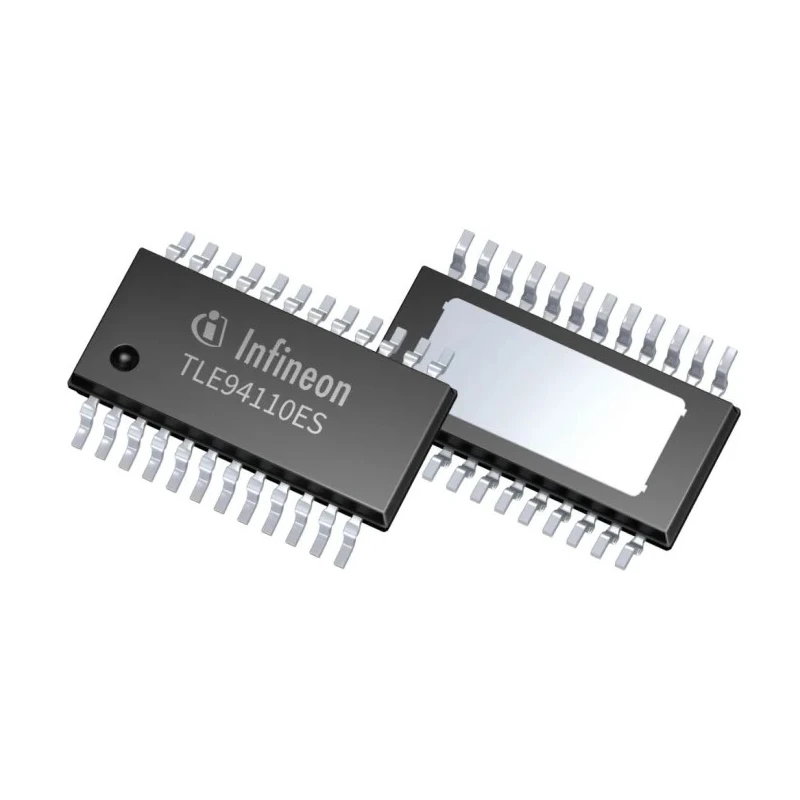

Infineon Motor Driver IC Dual Channel 2A Output Current 40V Supply Voltage PG-TSDSO-24 TLE94110ESXUMA1

Infineon TLE94110ESXUMA1 motor driver IC is a robust dual-channel device designed to control motors and actuators in industrial electronic systems. It operates with a maximum supply voltage of 40V and delivers an output current of 2A, making it suitable for moderate-load motor applications. The device comes in a PG-TSDSO-24 compact surface-mount package measuring 8.65mm in length, 3.9mm in width, and 1.15mm in height, fitting seamlessly into dense PCB assemblies.

This motor driver IC supports ten discrete outputs allowing the distribution of control signals across multiple loads or channels, offering enhanced system partitioning and flexibility. The dual driver configuration enables independent control of two channels, which is critical in complex motor control and actuator applications.

The device is engineered to operate reliably in harsh industrial environments with a wide temperature range from -40°C to 150°C. Its fast switching times, with 80ns rise and fall times, contribute to reduced switching losses and improved overall system efficiency, minimizing electromagnetic interference concerns.

Applications for the TLE94110ESXUMA1 include industrial motor control modules, multi-channel actuator interfaces, robotics drive electronics, and other compact power electronics assemblies that require precise and fast switching capabilities.

The PG-TSDSO-24 package type is ideal for surface mount technology (SMT) on printed circuit boards, facilitating high-density mounting and reliable electrical connections. The IC features a 40V maximum supply voltage for high-voltage motor control needs.

Provides 2A output current for moderate motor loads. Includes two drivers for dual-channel motor or actuator control. Contains ten outputs to handle multiple load channels efficiently. Fast switching with rise and fall times of 80ns reduces energy losses.

Operates across a wide temperature range from -40°C to 150°C suitable for industrial usage. Compact PG-TSDSO-24 surface-mount package measuring 8.65mm × 3.9mm × 1.15mm.

This motor driver IC from Infineon fits perfectly in industrial and manufacturing electronics, HVAC control systems, and automation applications requiring precision motor driving and multi-load handling in compact form factors.
